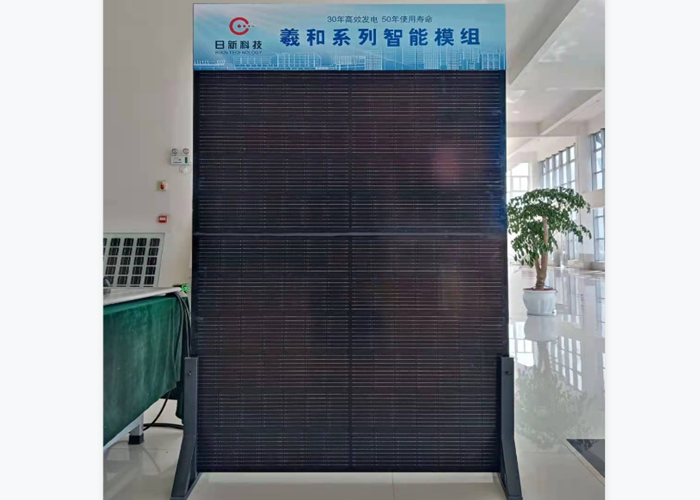

Full Black Monocrystalline BIPV Solar Panels Double Glass Solar Panels 470W
Full Black Monocrystalline BIPV Solar Panels Double Glass Solar Panels 470W
Specifications
Brand Name :
Rixin
Model Number :
MDU470(M)
Certification :
TUV, CE, ISO9001, ISO14001, OHSAS18000
Place of Origin :
Wuhan, China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3GW/YEAR
Delivery Time :
15 working days
Packaging Details :
wooden case
Power :
470W
Dimension :
2075mm*1260mm*31mm
Cell arrangements :
2*84(6*7*2)
Life span :
50 years
Application :
Building Roof or Curtain Wall
Efficiency :
18%
Description

Full Black Appearance Monocrystalline BIPV Double Glass Solar Panels 470W



Main Features

1. Solar power generation, supply clean energy for buildings.

2. Completely according with national standard for building materials.

3. Simple Full black design, Excellent cell hidden technology

4. Module Safety shutdown, power optimization and monitoring functions

5.Half-cut technology, intelligent optimization technology-avoid the influence of shading, reduce the loss of power

6. The module design is easy for installation and could achieve a flat & full installation.


Performance parameters

Upper Rated Power BIPV Double Glass Solar Panels 470W
Model MDU470(M)

Electrical parameters

 maximum power Pm (Wp) * 470
power tolerance (%) ± 5
maximum power voltage Vmp (V) * 45
maximum power current Imp (A) * 10.45
open circuit voltage Voc (V) * 53.3
short circuit current Isc (A) * 11.3
maximum system voltage (V) 1500
Efficiency(%) 18
working temperature (℃) -40~85℃
temperature coefficient of Pm Tk (Pm) -0.3%/K
temperature coefficient of Voc Tk (Voc) -0.39%/K
temperature coefficient of Isc Tk (Isc) +0.06%/K

Mechanical parameters

 fault structure (mm) 2mm tempered glass + 0.76PVB + poly cells + 0.76PVB + 2mm tempered glass+Back Frame
cable 4mm²/1200mm
product dimension 2075mm*1260mm*31mm
product weight 33kg
wind loads resistance 2.4KN/m²
Cells No. 2*84(6*7*2)

Drawing(mm)

Full Black Monocrystalline BIPV Solar Panels Double Glass Solar Panels 470W

Quality Warranty
30-year power output guarantee

50-year operation lifetime

Full Black Monocrystalline BIPV Solar Panels Double Glass Solar Panels 470W
