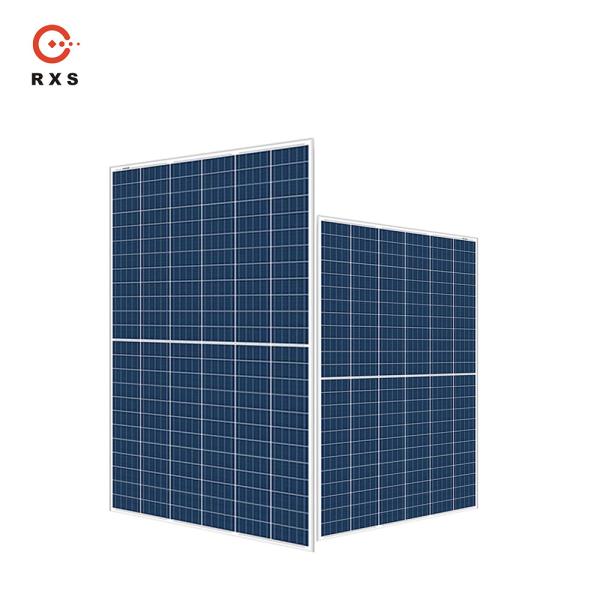

OEM Custom Solar Panels Poly 330W
OEM Custom Solar Panels Poly 330W
OEM Custom Solar Panels Poly 330W
OEM Custom Solar Panels Poly 330W
OEM Custom Solar Panels Poly 330W
OEM Custom Solar Panels Poly 330W
Specifications
Brand Name :
Rixin
Model Number :
MBG340
Certification :
CE\IEC\TUV\ISO14001
Place of Origin :
China
MOQ :
840PCS/HQ
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5GW/YEAR
Delivery Time :
7-10 working days after payment
Packaging Details :
In pallet
Name :
72CELLS polycrystalline Solar Panel
Efficient(%) :
17
Cable :
4mm2 negetive300mm, positive300mm
Maximum wind pressure/maximum snow pressure (Pa) :
2400/5400
Warranty :
25 Years Output Power Guarantee
Power tolerance :
0~+5W
Tpt back sheet :
Black/White Backsheet
Application :
Commercial,Home,Solar Home System,Solar System Solar Street Light,solar panel system
Type :
Standard Solar Panel,340w solar pv module price
Material :
Polycrystalline Silicon
Max. power :
320W 330W 340W
Connector :
MC4 Compatible Connector
Color :
Blue & Black
Front cover :
3.2mm High transmission
Description

Rixin OEM Custom Solar Panels Solar Module Price Solar Plate Price 330W Poly Solar Panel

Outstanding module performance

Anti PID

High hot-spot resistance

Double semi-tempered glasses strengthen cracking resistance

Improve heat dissipation

Ensure fire safety performance

Replace polymer back plate with tempered glass, to improve fire safety perormance

Passed fire safety test grade A

System cost reduction makes more efficiency

Maximum system voltage enhanced to 1500V

Compared with 1000V system, system overall cost reduced greatly

30-year linear power warranty, only 0.5% annual linear degradation

Harsh environment adaptation

High transmittance,anti reflection, self-cleaning coated glass

No aluminum alloy frame, no grounding

Excellent performance on wind & sand resistance, salt mist resistance, ammonia corrosion resistance

Passsed positive snow loads(5400pa) and wind loads(2400pa) certification tests.

OEM Custom Solar Panels Poly 330WOEM Custom Solar Panels Poly 330W

MBG330~340
Electrical performance parameters
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
Type MDG330 MDG335 MDG340
Maximum power(Pm/Wp) 330 335 340
Maximum power voltage(Vmp/V) 37.0 37.1 37.2
Maximum power current(lmp/V) 8.90 9.03 9.14
Open circuit voltage(Voc/V) 45.0 45.1 45.2
Short circuit current(Isc/A) 9.98 10.08 10.18
Module efficient(%) 16.5 16.7 17
NOCT(℃) 45±2℃
Temperature coefficient of Voc -0.31%/℃
Temperature coefficient of Isc 0.05%/℃
Temperature coefficient of Pm -0.41%/℃
Power tolerance(W) 0~+5
Mechanical performance parameters
Module dimension (L*W*H)(mm) 2015*996*35
Module weight (kg) 28
Cable 4mm2 negetive300mm, positive300mm
Junction box/Connector Ip68,split / MC4 compatible
Cell size (mm) Poly half cell 144(6*12*2)
Packing 30pcs/pallet
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage(V) 1500DC
System maximum protection current(A) 15
Maximum wind pressure/maximum snow pressure (Pa) 2400/5400
OEM Custom Solar Panels Poly 330W

1). High Conversion Efficiency Solar Panels’ Cells are laminated with TPT and EVA and encapsulated with Low-iron tempered glass ensuring longer life and maximum performance

2). Anti-aging EVA, high resistant TPT to laminate and stronger anodized aluminum alloy frame

3). Strong aluminum frame withstand heavier snow load and higher wind-pressure by passing mechanical load test 2400Pa ~5400Pa ,

4). Aesthetic appearance and rugged design to withstand high wind pressure, hail and snow load ;

5). Ip65 Junction box with Built-in diodes prevents reverse charging and keep excellent protection ;

6). Rigorous quality control meet the highest international standards and classification of modules

7). Advanced photovoltaic technologies is resistant to atmospheric exposure and effects of delaminating;

8). The exterior design and electrical performance of each every module are fully tested to guarantee superior quality of 25years lifespan .

Rixin Technology believes that high efficiency crystalline modules will define the future of PV industry. Rixin Technology specializes in the development of high efficiency crystalline solar technical roadmap and it has become great PV companies in terms of its scale and the leading expertise in China.

We use top-quality solar cells and EVA, TPT, strengthen glass, seal silicone etc. Our experienced staffs work together well to assurance quality under effective ISO system, CE, to assure our quality Our products are exported to Europe, America and Asian countries with safety certificates.

Our value is coordination, innovation, sincerity, service. We will make unremitting efforts to be your great partner on your path of the photovoltaic wealth.
