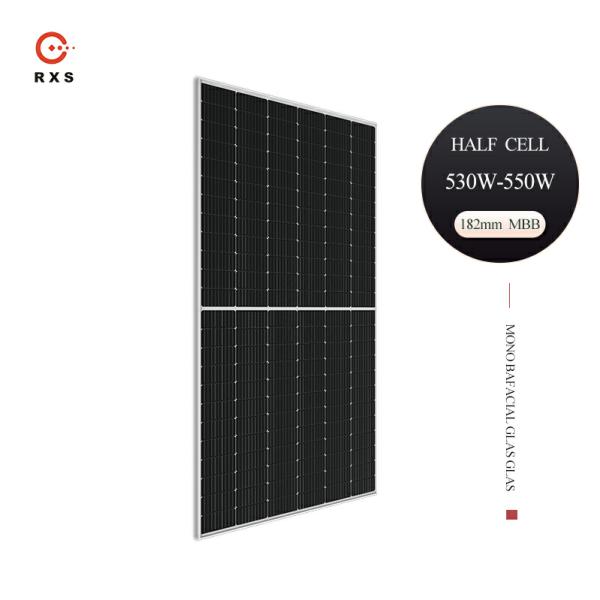

Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate
Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate
Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate
Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate
Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate
Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate
Specifications
Brand Name :
RIXIN
Model Number :
DDG(P)550(K)
Certification :
CE
Place of Origin :
China
MOQ :
620pcs/HQ
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability :
3GW/year
Delivery Time :
7-10 DAYS
Packaging Details :
In pallet
Name :
Monocrystalline PV Module
Type :
Standard Solar Panel, solar panel,solar plate
Cable :
4M 900mm PV Cable
Application :
Home,Commercial,Industrial,Solar Home System,Solar System or solar pant
Junction box :
IP67 Rated
Efficiency :
21.22%
Frame :
Seal-lip design glue injection
Faeture :
High Efficiency PV Cells
Description

Rixin 30 Years Warranty Standard Solar Commercial Rooftop Solar Panels 500wp Mono Solar Plate Price

Mono Bifacial Double Glass Module DDG(P)530-550(k)

Model DDG(P)530(k) DDG(P)535(k) DDG(P)540(k) DDG(P)545(k) DDG(P)550(k)
Maximum power(Pm/Wp) 530 535 540 545 550
Maximum power voltage(Vmp/V) 41.64 41.87 42.09 42.32 42.54
Maximum power current(lmp/V) 12.73 12.78 12.83 12.88 12.93
Open circuit voltage(Voc/V) 49.65 49.78 49.91 50.12 50.34
Short circuit current(Isc/A) 13.48 13.53 13.58 13.63 13.68
Module efficient(%) 20.45 20.64 20.83 21.03 21.22

Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5

Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate

Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate

Mechanical performance parameters

Cell Nos & array Mono half-cut cells 144 pcs
Cell size (mm) 182*91
Glass thickness (mm) 2.0
Frame Anodized alaminum alloy
Cable 4m㎡ negetive300mm, positive300mm
Module weight (kg) 32.1
Module dimension (L*W*H)(mm) 2285*1134*35mm
Packing 31pcs/pallet

Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate

Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate

Commercial Rooftop Standard Solar Panels 500wp Mono Solar Plate

Advantage of Solar Panel:

1, Long Life time: Solar Power has a 25 year warranty

2,Sustainable Energy: The sun is an infinite nature soure of energy. Unlike fossile fuels it will never run out.

3,Save your money: After the initial investment has been recovered, the energy from the sun is practically free.

4,Environment friendly: solar energy is clean,renewable(unlike gas,oil and coat), sustainable and slow/stop global warming helping to protect the environment

Details

Solar Cell
* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Color sorting ensure consistent appearance on each module

Glass

* Anti-reflective glass
* Self-cleaning function
* Module efficiency is increased by 2%
* Service life is as long as 25 years (30 years optional)

Junction box

* Heat dissipation
* Long service life
* IP67 protection level
* Quality diode ensures module running safety
* Conventional standalone edition and engineering custom edition

Frame

* Conventional frame
* Seal-lip design glue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
* Boost bearing capability and prolong service life
