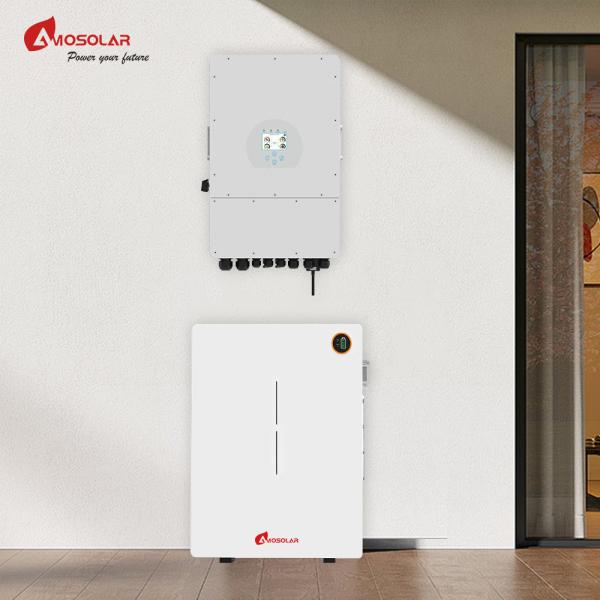

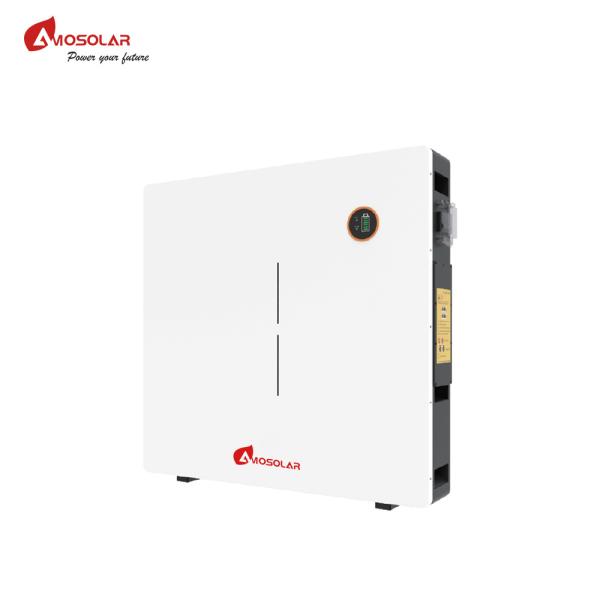

Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Specifications
Battery Type :
Lithium Ion
Model Number :
AMO5.12-15.36K-W3
Brand Name :
Amosolar
Output Power Range :
5~10 kWh
System Type :
Wall-mounted
Type :
All-in-one, Li-Ion/lithium/lifepo4
Communication Port :
CAN, RS232, RS485
Protection Class :
IP65
Grid connection :
Off grid, Hybrid grid
Product name :
Lithium Iron Phosphate Lifepo4 Battery
Application :
Home Appliances;House Use
Capacity :
100Ah 200Ah 300Ah;5KWH 10KWH 15KWH
Cycle life :
6000 Times
Voltage :
51.2V
Warranty :
5years
Keywords :
Battery Lithium Lifepo4
Certification :
CE/RoHS/UN38.3/MSDS
OEM/ODM :
Accepatable
MOQ :
2 pieces
Price :
$680.00 - $1,750.00/pieces
Description
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Specification
PERFORMANCE SPECIFICATIONS
MODEL
AMO 5.12K-W3
AMO 10.24K-W3
AMO 15.36K-W3
Nominal Voltage
51.2V
Capacity(Ah)
100AH
200AH
300AH
Rated Energy (KWH)
5.12KWH
10.24KWH
15.36KWH
Usable Energy(KWH)
4.1KWH
8.2KWH
12.29KWH
Max.Charge/Discharge Current(A)
100A
Voltage Range (Vdc)
45.6-56.16V
Communication
RS232, CAN, RS485
Cycle Life
≥6000cycles@25℃，80%DOD
Design Life
≥10 Years (25℃)
MECHANICAL SPECIFICATIONS
Weight( Approx) (KG)
48.45kg
98kg
140.7kg
Dimension(W/D/H)(mm)
520*470*141.5mm
800*590*142mm
856*820*176mm
lnstallation Mode
Wall Mount
lPGrade
lP65
SECURITY AND CERTIFICATION
Safety(Pack)
UN38.3,MSDS
Safety(Cell)
UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection
BMS, Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(℃)
Charge:0°C~55℃; Discharge: -20°C-60℃
Altitude (m)
≤2000
Humidity
≤95%(Non-condensing)
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse


COMPANY PROFILE


Amosolar is established in 2008 and located in Hefei city,Anhui province,China. We have 4
production bases with 3Gw production capacity.

Our main prodcuts are solar panels and solar batteries with International certificates
ISO, IEC,CE,TUV ,INMETRO, SONCAP,RETIE.
Amosolar always pay more attend to clients' requests. OEM, customization and special
quantities are all available. We would like to be your best one-stop solar system provider.
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse

QUALITY AS THE GENE OF PRODUCTS

Quality is the corner stone for the growth of the company and our compromise to the clients. We apply a rigorous system of control procedures following the guidelines of TUV requisites and implement a comprehensive range of tests before, during and after theproduction.
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse

RIGOROUS SYSTEM OF CONTROL

Strict quality testing standards for long-life performance
Conducted under Amosolar quality assurance best practices, our stringent performance and durability testing let us guarantee you decades of worry-free operation.
* Solar Material Control * Production Control * After Production
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse
Li-Ion 48V 51.2V 100AH 200AH Power Wall Battery for Home Energy Storage at Warehouse

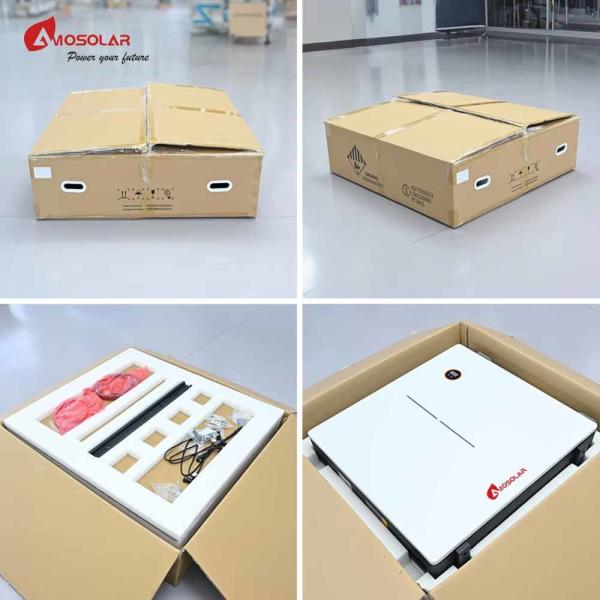

PACKAGING & DELIVERING

All components are packed in separate cartons, and then firmed by wooden box. Make sure the solar system are 100% protected during transportation
