Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Specifications
Place of Origin :
Anhui, China
Brand Name :
Amosolar
Model Number :
Amosolar-MHP3/5KVA
Input Voltage :
24/48Vac
Output Voltage :
220/230/240Vac
Output Current :
80A
Output Frequency :
50Hz/ 60Hz
Output Type :
Single
Size :
130*295*455mm
Type :
DC/AC Inverters
Inverter Efficiency :
97%
Certificate :
CE/RHOS/IEC
Warranty :
3 years
Weight :
13KG
Product name :
off Grid Inverter
Protection :
Short Circuit Overload Overvolt Overtemp
Application :
Residential Solar Power System
Rated power :
3000-5000W
Battery type :
Lead Acid \ Lithium \ Gel
Battery Voltage :
24/48v
MPPT voltage range :
60-115Vdc
OEM :
SUPPORT
Price :
$440.00/pieces 1-9 pieces
Description
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW

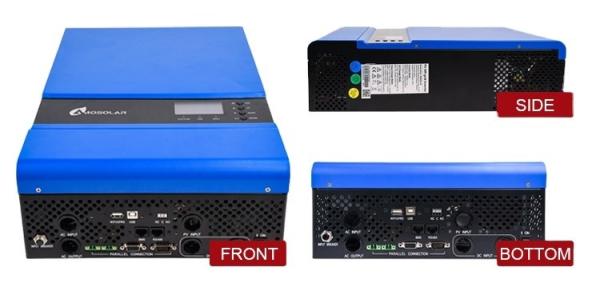

Product Description
Model
Amosolar-MHP3KVA
Amosolar-MHP 4KVA
Amosolar-MHP 5KVA
Battery Voltage
24 VD
24 VD
48 VDC
INVERTER OUTPUT



Rated Power
3000VA/ 3000W
4000VA/ 4000W
5000VA/ 5000W
Parallel Capability
No
Yes, 6 units
Yes, 6 units
AC Voltage Regulation (Batt. Mode)
230VAC + 5%@ 50/60Hz
Surge Power
6000VA
8000VA
10000VA
Efficiency (Peak)
93%
93%
93%
Waveform
Pure sine wave
MPPT SOLAR CHARGER
Maximum PV Array Power
1800W
4500W
4500W
MPPT Voltage Range
30VDC ~ 80VDC
60VDC ~115VDC

Maximum PV Array Open Circuit Voltage
100VDC
145VDC

Maximum Solar Charge Current
50A
80A
80A
Maximum Efficiency
97%
AC CHARGER
Charge Current
30A
60A
60A
AC Input Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
AC BYPASS
Transfer Time
10 ms (For Personal Computers); 20 ms (For Home Appliances)
PHYSICAL
Dimension, Dx W x H (mm)
100 x272 x385
130 x 295 x 455
Net Weight (kgs)
7
11
11
OPERATING ENVIRONMENT
Humidity
15% to 95% Relative Humidity(Non-condensing)
0°C-55°℃Operating Temperature
0°C-55°℃
Storage Temperature
-15°℃ - 60°C
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Auto Production Line
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW

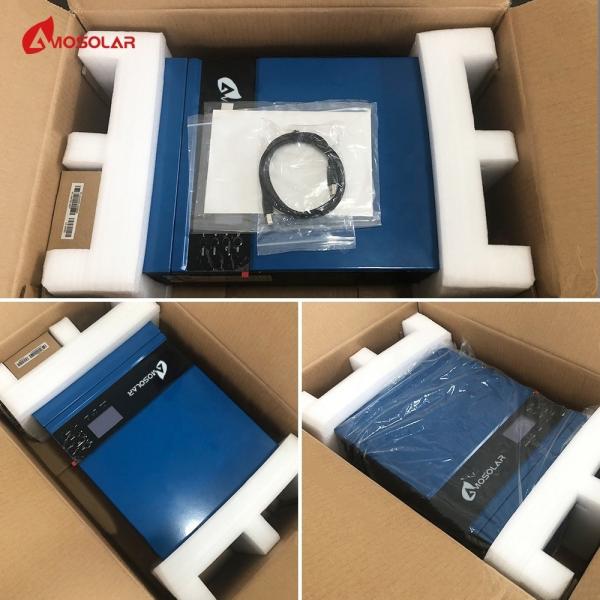

Packaging & Delivery
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Project
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
Off Grid Solar Power System with Powerful Amsolar Solar Inverter 3KW 5KW 8KW 10KW
