12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
Specifications
Warranty :
3years, 3 Years
Chargeable :
NO
Application :
Home Appliances, Home Appliances
Brand Name :
Amosolar
Model Number :
12v100ah
Place of Origin :
Anhui, China
Product name :
Lead-acid Maintenance-free Battery
Capacity :
12V100AH
OEM/ODM :
Yes(Accepted)
Cycle life :
1500times
Voltage :
12V
Type :
GEL Lead Acid Battery
Packaging Details :
Cartons and pallets and wooden box
Port :
Shanghai / Ningbo /Guangzhou / Shenzhen
Supply Ability :
100000 Piece/Pieces per Year
MOQ :
10 pieces
Price :
$98.00/pieces 10-99 pieces
Description
Product Description
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
Mechanical Data
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
Model
6-GFM(G)-100Ah
6-GFM(G)-150Ah
6-GFM(G)-200Ah
6-GFM(G)-250Ah
Cells Per Unit
6
Voltage Per Unit
12V
Capacity
100Ah@10hr-rate to 1.80V per cell @25°C
150Ah@10hr-rate to 1.80V per cell @25°C
200Ah@10hr-rate to 1.80V per cell @25°C
250Ah@10hr-rate to 1.80V per cell @25°C
Weight
29kg
42kg
58.5kg
67kg
Internal Resistance
Approx. 6mΩ
Approx. 4mΩ
Approx. 3.5mΩ
Approx. 2.5mΩ
Terminal
F1/F2
Max. Discharge Current
1500A(5s)
2250A(5s)
3000A(5s)
3750A(5s)
Design Life
10~15 years
Maximum Charging Current
25A
37.5A
50A
62.5A
Float Charging Voltage
13.6 V~13.8 V @ 25°C
Temperature Compensation: -20mV/°C/Cell
Cycle Use Voltage
14.4 V~14.9 V @ 25°C
Cycle Use Voltage
Temperature Compensation: -30mV/°C/Cell
Operating Temperature Range
Discharge: -20°C~60°C
Charge: 0°C~50°C
Storage: -20°C~60°C
Container Material
A.B.S. UL94-HB, UL94-V0 Optional.
Normal Operating Temperature Range
25°C±5°C
Self Discharge
Less than 3% at 25°C per month
Container Material
A.B.S. UL94-HB, UL94-V0 Optional

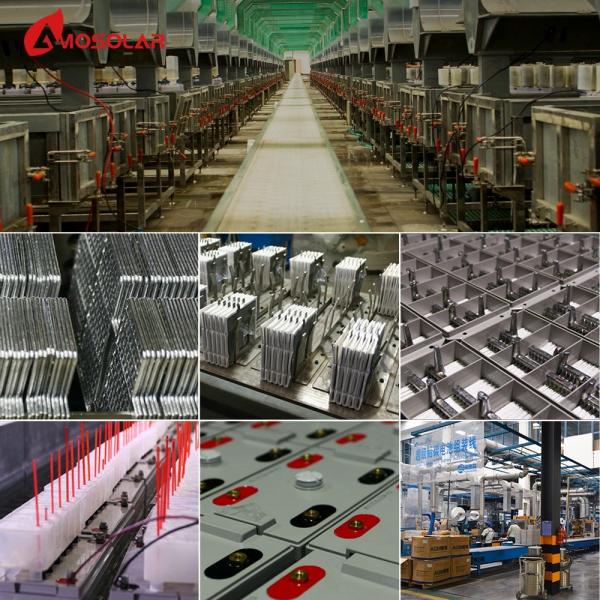

Auto Production Line
Our Factory
Amosolar was founded in 2008, is a professional industrial and trade solar panel manufacturer and provides complete solar system
products and services. We have introduced the world's most advanced automated production lines and testing equipment, with an
annual output of 2GW of solar panels. Our products have been recognized and certified by ISO, CE, IEC, TUV, INMETRO, CHUBB, PICC
and other international well- known enterprises.
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
Packaging & Delivery
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
Send your message to this supplier
Send Now

12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life

Ask Latest Price
Product Detail
Warranty :
3years, 3 Years
Chargeable :
NO
Application :
Home Appliances, Home Appliances
Brand Name :
Amosolar
Model Number :
12v100ah
Place of Origin :
Anhui, China
Contact Supplier
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life
12V100AH Gel Battery Lead Acid Battery for Solar Energy System 1500 Times Cycle Life

Amosolar Co., Ltd.

Verified Supplier
1 Years
anhui, hefei
Since 2022
Business Type :
Manufacturer, Trading Company
Main Products :
Solar Storage Battery, Solar System, Solar Panel
Total Annual :
10000000-50000000
Employee Number :
101~120
Certification Level :
Verified Supplier
