Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Specifications
Brand Name :
Trina
Place of Origin :
zhejiang, China
Cell size :
210mmx210mm
Type :
PERC, Half Cell, TOPCON
Panel Dimensions :
2384x1096x35mm
Panel Efficiency :
21.4
Warranty :
30years
Model Number :
TSM-DE21
Product name :
Product name
Material :
Mono PREC
Power :
645W~670W
Solar cell :
132 cells
Weight :
28.6kg
Frame :
Anodized Aluminium Alloy
Glass :
3.2mm Tempered Low Iron
Feature :
High Efficiency Mono Solar Panel
Certificate :
CE TUV
MOQ :
10000 watts
Price :
$0.11/watts 10000-9999999 watts
Description
Product Description
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Specification
ELECTRICAL DATA (STC)
Peak Power Watts-PMAX (Wp)
650
655
660
665
670
Maximum Power Voltage-VMPP (V)
37.4
37.6
37.80
38.00
38.20
Maximum Power Current-IMPP (A)
17.39
17.43
17.47
17.51
17.55
Open Circuit Voltage-VOC (V)
45.30
45.50
45.70
45.90
46.10
Short Circuit Current-ISC (A)
18.44
18.48
18.53
18.57
18.62
Module Eciency
20.90
21.10
21.20
21.40
21.60
Power Tolerance-PMAX (W)
0 ~ +5
STC
Irradiance1000W/㎡,Cell Temperature 25℃, Air Mass 1.5
ELECTRICAL DATA (NOCT)
Peak Power Watts-PMAX (Wp)
492
496
500
504
508
Maximum Power Voltage-VMPP (V)
34.90
35.10
35.30
35.40
35.60
Maximum Power Current-IMPP (A)
14.09
14.13
14.17
14.22
14.26
Open Circuit Voltage-VOC (V)
42.70
42.90
43.00
43.20
43.40
Short Circuit Current-ISC (A)
14.86
14.89
14.93
14.96
15.01
NOCT
Irradiance 800W/㎡, Cell Temperature 20℃, Air Mass 1.0
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm

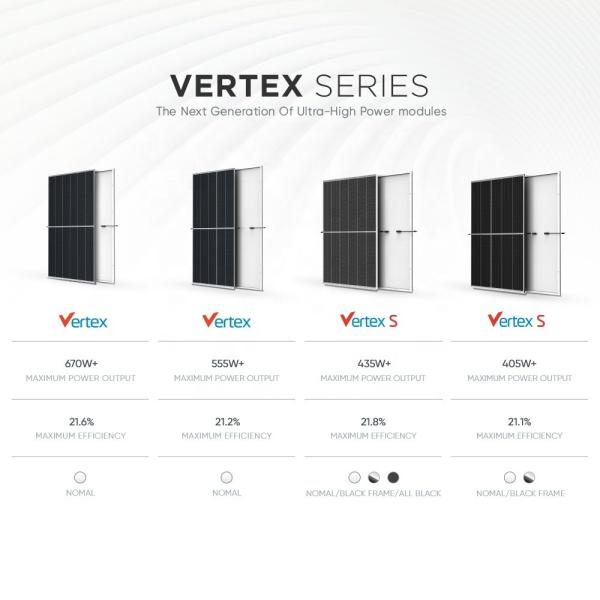

Vertex S

Power Range: 390-405WNo. of Cells: 120 cells
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs



Vertex S
Power Range: 415-435W
No. of Cells: 120 cells
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm



Vertex S
Power Range: 415-435WNo. of Cells: 120 cells
Dimension: 1754×1096×30 mm
Weight: 21.0 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs



Vertex S
Power Range: 645-670WNo. of Cells: 132 cells
Dimension: 2384×1303×35 mm mm
Weight: 33.6 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Packing & Delivery
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Company Profile
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm
Trina Solar Panel 550W 540W 500W Half Cell Monocrystalline Module 2384x1096x35mm


FAQ

A: What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries,solar application solutions and solar mounting systems, and all related solar accessories.

B: Are you a factory or trading company?
We are a factory with more than nine years of experience in producing solar energy series products. You are welcome to visit our factory.

C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive tech support, and after-sales services.

D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.

E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.

F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.

G: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.

If you want to know more information, you can send inquiry to our team, we will cover more details.
