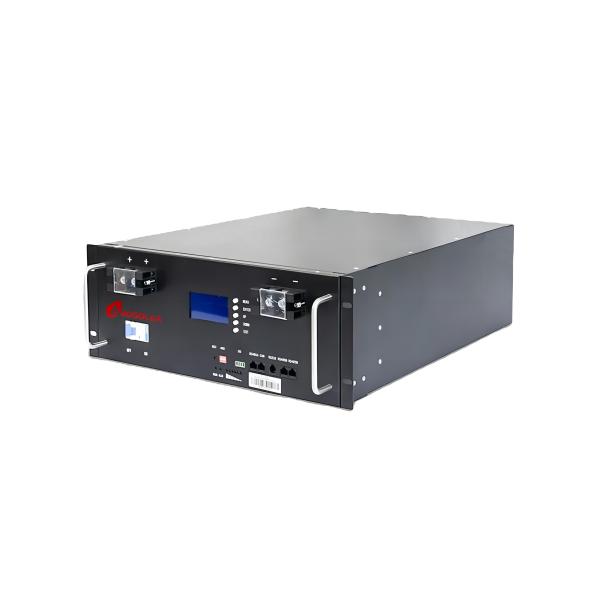

Li-Ion/Lithium/LiFePO4 48v 100ah 200ah Battery for Residential Energy Storage Solution

Specifications

Brand Name :

Amosoalr

Model Number :

AS48-RM

Place of Origin :

Anhui, China

Weight :

52.5kg

The charging ratio :

0.5c

The discharge rate :

0.5c

Storage Type :

normal temperature

Anode Material :

LFP

Application :

Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Home Appliances;House Use

Electric Energy :

10 Wh

Capacity :

100Ah 200Ah;5KWH 10KWH

Cycle life :

6000 Times

Voltage :

48V/51.2V

Warranty :

5years

Type :

Li-Ion/lithium/lifepo4

Nominal Voltage :

3.2 Volt

Certification :

CE/RoHS/UN38.3/MSDS

Battery Size :

57.6mm*52mm*33.5

type :

lfp

MOQ :

2 pieces

Price :

$699.00/pieces 2-9 pieces

Description

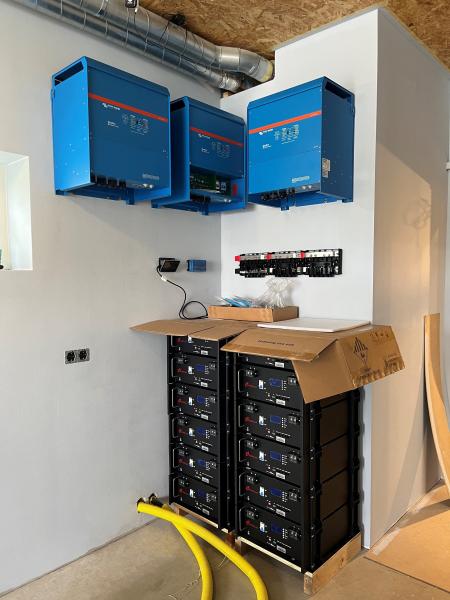

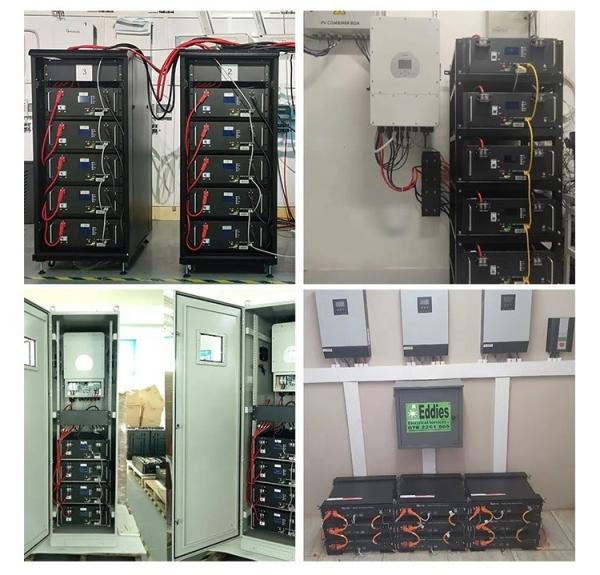

Training and Exhibition

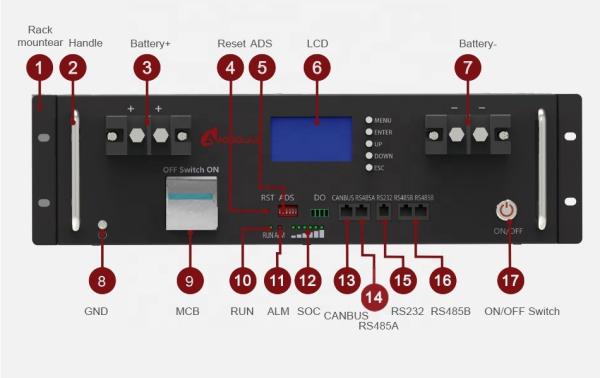

Product Paramenters

PERFORMANCE SPECIFICATIONS
MODEL	100AH	200AH
Nominal Voltage	48V
Cell model/Configuration	3.2V 100Ah(ANC)/15S1P	3.2V 200Ah(ANC)/15S2P
Capacity(Ah)	100AH	200AH
Rated Energy (KWH)	4.8KWH	9.6KWH
Usable Energy(KWH)	4.32KWH	8.64KWH
Max.Charge/Discharge Current(A)	50A/100A
Voltage Range (Vdc)	42-54V
Scalability	Up to 10 parallel
Communication	RS232-PC,RS485(B)-BATRS485(A)-Inverter,Canbus-Inverter
Cycle Life	≥6000cycles@25℃，90%DOD，60%EOL
Design Life	≥10 Years (25℃)
MECHANICAL SPECIFICATIONS
Weight( Approx) (KG)	48kg	78kg
Dimension(W/D/H)(mm)	483480133mm
lnstallation Mode	Stack
lPGrade	lP21
SECURITY AND CERTIFICATION
Safety(Pack)	UN38.3,MSDS
Safety(Cell)	UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection	BMS, Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(C)	Charge:-10°C~50℃; Discharge: -20°C-50°℃
Altitude (m)	≤2000
Humidity	≤95%(Non-condensing)

COMPANY PROFILE

Amosolar is established in 2008 and located in Hefei city,Anhui province,China. We have 4

production bases with 3Gw production capacity.

Our main prodcuts are solar panels and solar batteries with International certificates

ISO, IEC,CE,TUV ,INMETRO, SONCAP,RETIE.

Amosolar always pay more attend to clients' requests. OEM, customization and special

quantities are all available. We would like to be your best one-stop solar system provider.

QUALITY AS THE GENE OF PRODUCTS

Quality is the corner stone for the growth of the company and our compromise to the clients. We apply a rigorous system of control procedures following the guidelines of TUV requisites and implement a comprehensive range of tests before, during and after theproduction.

PACKAGING & DELIVERING

All components are packed in separate cartons, and then firmed by wooden box. Make sure the solar system are 100% protected during transportation
