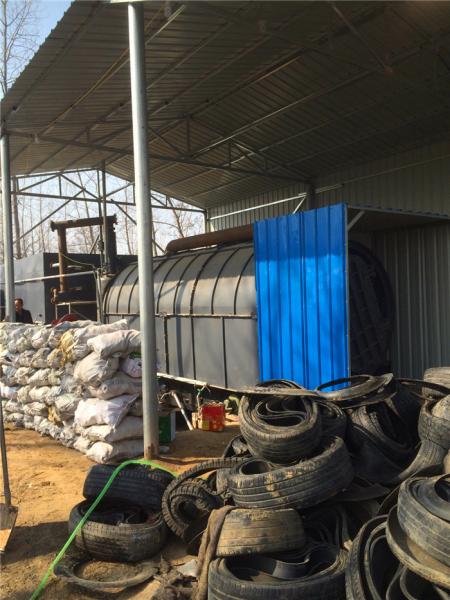

40%-50% Oil Rate Rubber Tire Recycling Pyrolysis Machine For Making Fuel Oil

Our recycling waste tire plastic to fuel oil small pyrolysis plant can handle a variety of common tyres in life, and different tyres have different oil yield.
Waste tyre Pyrolysis Plant is applied for recycling waste tire, waste plastic, waste rubber to fuel oil. According to the actual situation in every country and district, we developed different models of Batch Pyrolysis Plants for waste tires, rubber and plastic with daily capacity 5 -10 tons.

Raw Materials and Final Products and Its Usage.

Raw materials: Waste tyres, waste rubber and waste plastics, etc.

Final products: Steel wires, fuel oil, carbon black and sync gas...

The usage of the final products:

Steel wires: 12%-15% from tyres, to be sold or reprocessed

Fuel oil: Widely used in industries such as steel and iron factories, ceramics or chemical industries or hotels, restaurants etc. as fuel oil, or used for heavy oil generators to get electricity.
Carbon black: Crude carbon black can be used for construction bricks, or widely used as industrial carbon black N774, N660, N330 or color carbon after deep-process.

Factory required

Characteristics of waste tyre pyrolysis plant

1. High oil output rate 45%--55% with special catalyst formula and high tech.

2. Rapid condensers and large cooling area,assure you get much more and higher quality oil. diversiform cooling system (condensers or pipe pond) can be choose according to client's willingnes.

3. Dust-removing device -four levels dust processing system make sure no any population and the output smoking is the spray .more environmental protection. no-pollution.

4. Double tail-gas recycling and burning system, saving energy.

5. Q245R boiler plate, high temperature resistance, thickness reaches 14mm,guarantee 4-7 years service lives. and optional plate is Q245R.

Main Parts of Pyrolysis Plant

Reactor

Burning Room

Gas Separator

Condensers

Oil Tank

Cooling Tower

Sync Gas Recycling System

Waste Gas Burner

Smoke Scrubbers

Carbon Black Discharging System

Safety system:

1. Auto welding to improve working efficient, ensure machine quality, avoid accident.
2. Special design to avoid the jam with X-ray test, ensure safety running.
3. Vacuum system ensures the whole line working well.

Environmental protection:
1. Dust and sulfur removal system remove smoke and sulfur.
2. The exhaust gas (include methane to butane) will be directly recycled to furnace for fuel, no gas pollution.

High oil yield:
1. Three cooling processes ensure the oil gas liquefied sufficiently.
2. Catalyst chamber ensure the raw material pyrolysis totally.
