A Grade Commercial 24 V Solar Panel , White / Black Ying Lee Solar Panels
A Grade Commercial 24 V Solar Panel , White / Black Ying Lee Solar Panels
A Grade Commercial 24 V Solar Panel , White / Black Ying Lee Solar Panels
A Grade Commercial 24 V Solar Panel , White / Black Ying Lee Solar Panels
Specifications
Brand Name :
Yingli/Jinko
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiation
Payment Terms :
T/T、L/C、West Union
Supply Ability :
5000000 Watt/Watts per Month
Delivery Time :
Shipped in 7 days after payment
Packaging Details :
In well protected carton or wooden box with pallets. 26pcs per pallet, 380pcs fill into 20GP, 820pcs fill into 40HQ
Material :
Monocrystalline Silicon
Color :
White, Black
Cell Grade :
A-Grade
Fram :
Aluminum Alloy
Condition :
New/Secondhand
OEM :
Avaliable
Trademark :
Yingli
Operating Temperature :
-40° C~+85° C
Description

Product Description

Trina / Yingli / Jinko / Suntech 250w solar panel

Rated Maximum Power at STC

230W

240W

245W

250W

255W

260W

270W

Maximum Power Voltage (Vmp)

29.3V

29.6V

29.9V

30.5V

30.8V

31.1V

31.6V

Maximum Power Current (Imp)

7.86A

8.11A

8.19A

8.22A

8.28A

8.37A

8.54A

Open Circuit Voltage ( Voc)

36.5V

36.9V

37.2V

37.5V

37.7V

38.1V

38.4V

Short Circuit Current (Isc)

8.51A

8.63A

8.67A

8.85A

8.92A

8.98A

9.13A

Module Efficiency

14.16%

14.78%

15.09%

15.40%

15.71%

16.02%

16.62%

Power Tolerance

0~+3%

0~+3%

0~+3%

0~+3%

0~+3%

0~+3%

0~+3%

STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5

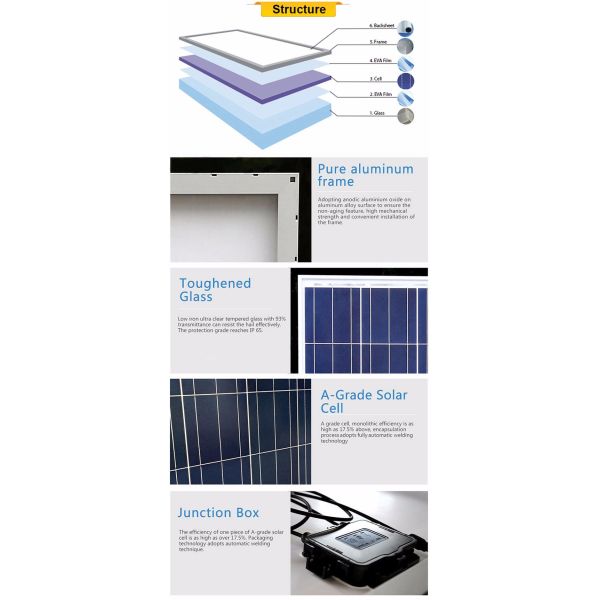

Mechanical Parameters

Cell Type

Poly-crystalline 156x156mm (6inch)

No. of Cells

60 (6x10)

Dimension

1650x990x35/40mm

Glass

3.2mm, High Transmission, Low Iron, Tempered Glass

Junction Box

IP65&IP67 Rated

Output Cable

Section Size: 4mm² , Length: 900mm

Frame

Anodized Aluminum Alloy

No. of Bypass Diodes

3&6

Connector

MC4 Compatible

Working Conditions

Maximum System Voltage

DC 1000V(IEC) / 1500V(IEC) / 600V(UL)

Operating Temperature

-40°c~+85°c

Maximum Series Fuse

15A

NOCT

45±2°c

Application Class

Class A

Temperature Coefficient

Temperature Coefficient of Pmax

-0.41%/°c

Temperature Coefficient of Voc

-0.31%/°c

Temperature Coefficient of Isc

+0.06%/°c




A Grade Commercial 24 V Solar Panel , White / Black Ying Lee Solar Panels
A Grade Commercial 24 V Solar Panel , White / Black Ying Lee Solar Panels

FAQ:


Q1: Are you a factory or a trading company?
A: We are the factory with the biggest production capacity and products range of solar Panel in China.

Q2: What is your MOQ?
A: We have no MOQ, 1pc sample order is also ok for us,but best Cost performance is by big quantity order.

Q3: Do you have any experience with big bidding projects?
A: Yes, we have rich experience on the big bidding projects, and have helped our customers win many such bidding projects. Our sale engineer are very familiar with the bidding procedure and can provide detailed information as required in time.

Q4: Do you accept OEM?
A: yes, we can do the OEM for you, and we are the OEM supplier of many famous brands from Europe, USA, Asia,Middle East and Africa etc.

Q5: What payment terms do you accept?
A: We accept TT, LC,Cash, and Western Union etc.

Q6: What about the production time?
A: Samples can be delivery at once
500sets above normal need 10 to 15 days, if no goods in storage.
2000sets above normal need 15 to 20 days, if no goods in storage.

Q7: What else materials should we prepare before installation after buying your solar panels?
A: We can provide all system components and only small civil work is needed

Q8: What is your Warranty Policy?
A: We offer 20 years warranty for the entire system and can be replaced with new ones for free if quality Issues.
