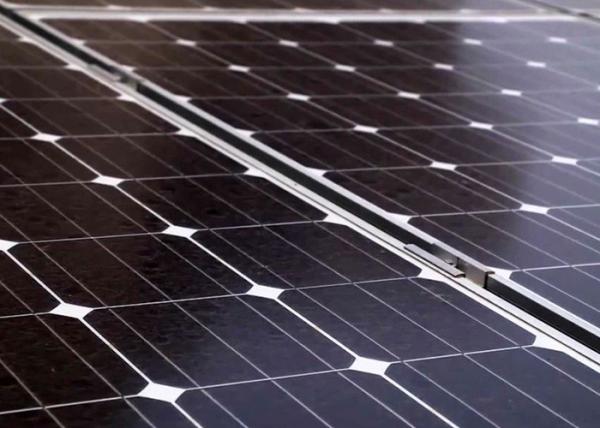

Portable C Grade Solar Panels , 250 Watt Solar Panel 1950*990*40 Millimeter
Portable C Grade Solar Panels , 250 Watt Solar Panel 1950*990*40 Millimeter
Specifications
Brand Name :
Yingli/Jinko
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiation
Payment Terms :
T/T、L/C、West Union
Supply Ability :
5000000 Watt/Watts per Month
Delivery Time :
Shipped in 7 days after payment
Packaging Details :
In well protected carton or wooden box with pallets. 26pcs per pallet, 380pcs fill into 20GP, 820pcs fill into 40HQ
Spec. :
as Usual
HS :
8541402000
Type :
Solar cell panels
Output :
Mc4,Alligator Clip,Cigarette Lighter
Capicty :
4MW Solar Panel Per Month
Stok :
Avaliable
Size :
1950*990*40mm
Max Power. :
380W
Description
Mono Solar Panel 250w Cheaper Brand New/stock/used Solar Panel
Electrical Parameter
Module SP100-18P SP150-18P SP200-36P SP250-30P SP300-36P
Rated Maximum Power at STC 100W 150W 200W 250W 300W
Open Circuit Voltage(Voc) 21.8V 21.8V 44V 36.8V 44V
Maxinmum Power Voltage(Vmp) 17.8V 17.8V 35.6V 30.0V 35.8V
Short Circuit Current(Isc) 6.05A 9.08A 6.05A 9.00A 9.05A
Maxinmum Power Current(Imp) 5.62A 8.43A 5.62A 8.34A 8.38A
Module Efficiency(%) 17.2% 17.2% 17.2% 17.2% 17.2%
Operating Temperature -40°C to 85°C
Maximum System Voltage 1000V(IEC)DC
Maximum Series Fuse 15A
Cont 45±2°C
Power Tolerance(W) -0--+5W
Temperature Coefficient of isc(αlsc) -0.03%/°C
Temperature Coefficient of voc(ßvoc) -0.32%/°C
Temperature Coefficient of Pmax(ϒPmp) -0.42%/°C
STC Irrandiance 1000W/m²,Module temperature 25°C,AM=1.5
Mechanical Parameter

Weight (kg) 8 12.5 16 18.2 25
Dimensions(L*W*H) 1200*540*30 1480*670*35 1580*808*35 1650*990*40 mm 1950*990*40
Cable Cross Section Size(mm²) 4 4 4 4 4
Cell (mm) Mono 125*125 Mono 156*156 Mono 125*125 Poly 156*156 Poly 156*156
No.of Cells and Connections 36(4*9) 36(4*9) 72(6*12) 60(6*10) 72(6*12)
Junction Box Ip67,3 diodes
Connector Mc4 Compatible
Packaging Configuration 26 Per Pallet

Portable C Grade Solar Panels , 250 Watt Solar Panel 1950*990*40 MillimeterPortable C Grade Solar Panels , 250 Watt Solar Panel 1950*990*40 Millimeter

Customization

Solar panel can be customized as like the size,color or cost

Factory production

Portable C Grade Solar Panels , 250 Watt Solar Panel 1950*990*40 Millimeter

QA system

QA system

We conduct the following test on every solar panel.

Before Polynet Solar modules are distributed, they must undergo a broad range of specific tests that guarantee the quality of the production. This allows us to ensure that our modules meet the most stringent requirements so that you get a return on your investment.

Packing & Delivery

Normally packing: 1pc/2pcs/3pcs/10pcs/21pcs/25pcs per carton

Individual packing requirement is acceptable.

Portable C Grade Solar Panels , 250 Watt Solar Panel 1950*990*40 Millimeter
