Discount Monocrystalline Polycrystalline Solar System Solar Panel Solar Cell
PRODUCTS CHARACTERISTICS
300W-340W SolarPANEL ELECTRICAL CHARACTERISTICS | ||||||
Minimum performance at stc1 | ||||||
Item | 300W | 305W | 310W | 320W | 330W | 340W |
Cell Type | Mono | Mono | Mono | Mono | Mono | Mono |
Model No. | MJ-M-72-PID | MJ-M-72-PID | MJ-M-72-PID | MJ-M-72-PID | MJ-M-72-PID | MJ-M-72-PID |
Maximum Power(Wp) | 320 | 325 | 330 | 335 | 340 | 345 |
Maximum Power Voltage(V) | 37.04 | 37.15 | 37.21 | 37.31 | 37.37 | 37.42 |
Maximum Power Current(A) | 8.64 | 8.75 | 8.87 | 8.98 | 9.1 | 9.22 |
Open Circuit Voltage(V) | 45.8 | 45.98 | 46.15 | 46.26 | 46.35 | 46.44 |
Short Circuit Current(A) | 9.25 | 9.32 | 9.43 | 9.53 | 9.61 | 9.69 |
Solar Panel Efficiency | 16.42% | 16.68 | 16.93 | 17.19 | 17.45 | 17.70% |
Power Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
Standard Test Condition | Irradiance 1000W/M2, Cell Temperature 25ºC, Air Mass 1.5 | |||||
TEMPERATURE CHARACTERISTICS | ||||||
NOCT(Nominal Operating Cell Temperature) | 44°C (±2°C) | |||||
Temperature Coefficient of Pmax | -0.39%/°C | |||||
Temperature Coefficient of Voc | -0.29%/°C | |||||
Temperature Coefficient of Lsc | +0.05%/°C | |||||
Maximum Systerm Voltage | 1000VDC | |||||
Max Series Fuse Rating | 15A | |||||
Operating Temperature | -40ºC~+85ºC | |||||
MECHANICAL PARAMETERS | ||||||
Number of Cells(Pcs) | 72(6x12) | |||||
Frame | Anodized Aluminium Alloy | |||||
Dimension(mm) | 1956x992x40mm | |||||
Cell Size(mm) | 156.75x156.75mm | |||||
Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||||
Junction Box | IP68&IP70 | |||||
Output cable | Section Size: 4mm² , Length: 1000mm | |||||
No. of Bypass Diodes | 3&6 | |||||
Connector | MC4& QC4 | |||||
Weight(kg) | 22.5 | |||||
Warranty | 10 Years Warrange For The 90% Module Efficiency 20 Years Warrange For The 80% Module Efficiency |
Product Description
Triple International Electrical Commission (IEC) test guarantees long-term reliability
Excellent anti-PID performance
Double electroluminescence (EL) tests guarantee fault-free modules
Lower contact resistance and optimized soldered connections as well as reduced grid breakage of cell conductor tracks through double-printing technology
100% automated production facilities using state-of-the-art plant technology
1) Electrical Specification
Workshop

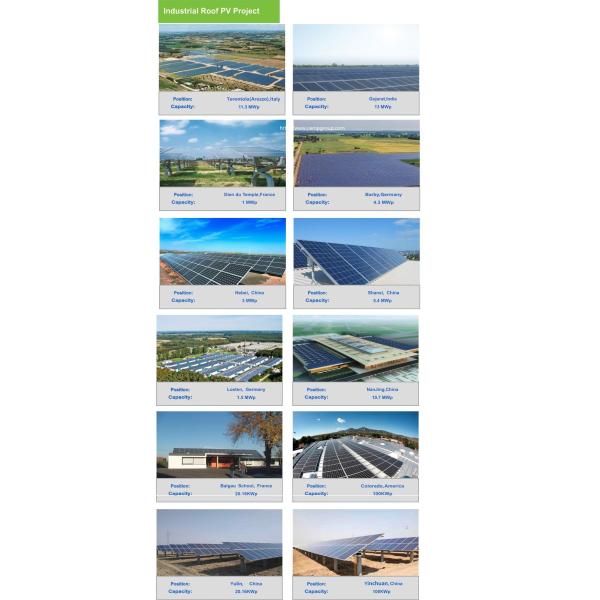

Projects
Cleaning & Texturing: Wafers are cleaned with industrial soaps and form square-based pyramids also called texture. The texturization helps to reduce the reflection of sunlight.
Diffusion: Wafers that have been pre-droped with boron during the casting process are then given a negative(n-type) surface characteristic by diffusing them with a phosphorus source at high temperature, which in turn creats the negative/positive(n-p) junction.
Etching: Phosphorus diffuses not only into the desired wafer surface but also into the side and the opposite surface to form PN. This gives a shunt path between the cell front and rear. Removal of the path around the wafer edge/edge junction isolation is named etching.
PECVD: By PECVD equipment, the wafers are coated with anti-reflection coating(ARC). It's the blue silicion nitride film to reduce reflection and promote absorption of light.
Printing & Heating: it was adopted by printing paste with screen technology to print the electrodes of silicion solar, and form a good ohmic contact.
Testing & Sorting: It means classifying the cells according to their efficiency tested under the simulated sunlight.
