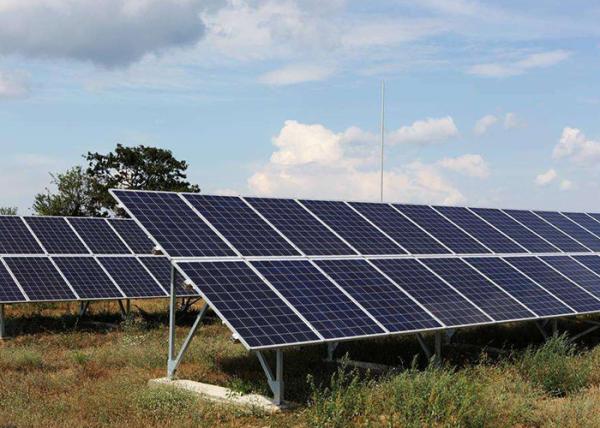

Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span
Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span
Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span
Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span
Specifications
Brand Name :
Yingli/Jinko
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiation
Payment Terms :
T/T、L/C、West Union
Supply Ability :
5000000 Watt/Watts per Month
Delivery Time :
Shipped in 7 days after payment
Packaging Details :
In well protected carton or wooden box with pallets. 26pcs per pallet, 380pcs fill into 20GP, 820pcs fill into 40HQ
Material :
Monocrystalline Silicon
Size :
1960*992*50mm
Front Cover :
3.2mm High transmission
Application :
Light Industry
Color :
White, Black
Warranty :
25 years
Description

High Efficiency Monocrystalline Solar Panel Solar Energy Systems Uses 100w Mono Solar Cells, Solar Panels

Product Description

Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span

100W Mono Solar panel
High efficiency mono solar cell with positive tolerance only
International quality management system with 100% panel power and EL test before shipment
Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
Nearest shipment port: Ningbo or Shanghai

Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span

Temperature Coefficients:
Power temperature coefficient (%/ºC): - 0.45 %/ºC
Current temperature coefficient(%/ºC): 0.065±0.015 %/ºC
Voltage temperature coefficient(%/ºC): - 0.35 %/ºC
NOCT-Normal Operating Cell Temperature: 45±2ºC
Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span

Module Warranty:
25 - year limited warranty of 80% power output;
10 - year limited warranty of 90% power output;
5 - year limited warranty of materials and workmanship

Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span

Type

FSM090W

FSM100W

Type of Solar Cell

Mono-crystalline, 156mm×156mm

Mono-crystalline, 156mm×156mm

Number of Cells

36 pcs ( 125×125)

36 pcs ( 125×125)

Size of module

1200×550×35mm ( 125×125mm cell)

1200×550×35mm ( 125×125mm cell)

Module, Weight

8.0 kg

8.0 kg

Junction box/Connector

TOP,IP65, 1000V DC, TUV certificated

TOP,IP65, 1000V DC, TUV certificated

Cables, Length (+/-)

Customizable

Customizable

Front Cover Glass

Tempered glass

Tempered glass

Front Cover Glass Thickness

3.2 mm

3.2 mm

Frame

Anodized Aluminium

Anodized Aluminium

Maximum Power Pm(W)

90 W

100 W

Power Tolerance

+ 3%

+ 3%

Maximum Power Voltage(Vmp)

18.5 V

18.6 V

Maximum Power Current (Imp)

4.87 A

5.21 A

Open Circuit Voltage(Voc)

22.4 V

22.5 V

Short Circuit Current(Isc)

5.36 A

5.52 A

Cell Efficiency

17.10%

17.90%

Maximum System Voltage

1000 V

1000 V

Operating temperature

-40 Degree to 85 Degree

-40 Degree to 85 Degree

Heavy mechanical load

5400Pa (meet IEC61215)

5400Pa (meet IEC61215)


Renewable Silicon Solar Cell Panel 3.2 Millimeter Transmission Long Life Span
