Grade A Quality Brand New Second Hand Solar Panels Germany Solar Panels

Features:

1. High transmittance, low iron tempered glass, anti-aging of the EVA(polyethylene - vinyl acetate), high-performance crystalline silicon solar cells, good Weather resistance TPT (fluoroplastics composite membrane) by pyramid , has a good Weather resistance and anti-UV, hail, water-proof capacity.

2. Our solar panel is designed with a lifetime of 25 years, and guaranteed that the power decline less than 10% within 10 years, and 20% within 25 years.

3. We are factory we Acceptable OEM Order. Delivery very soon.

Applications:

1. Living house and home building

2. Office building, factory and warehouse

3. shopping mall, vanue, stadium and so on

4. Power station, field operation some huge engineer construction.

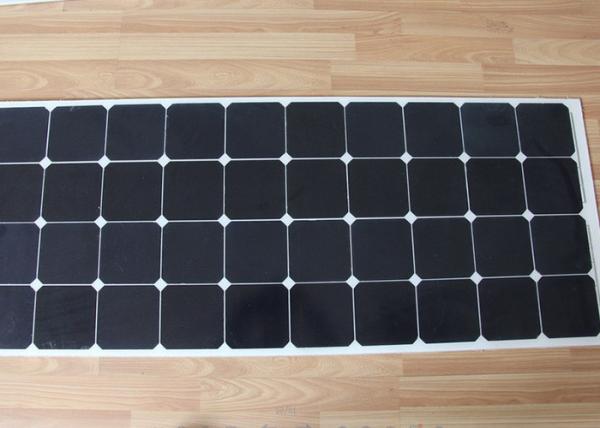

Specifications Solar Panel 100 Watts, Mono

1. Electrical Characteristics

Maximum power(W) :100W

Power Output Tolerance: 0~+3%

Maximum power voltage(Vmp): 18.00V

Maximum power current(Imp): 5.67A

Open circuit voltage(Voc): 21.60V

Short circuit current(Isc): 6.35A

Maximum system voltage(V): 1000 V

2. Mechanical Characteristics

No. of Cells: 36(4*9)pcs

Cell dimension:125*125mm

Size of module :1200x540x30mm

Weight: 8Kg

Front Glass: 3.2 mm tempered glass

Frame: Anodized aluminum alloy

Junction Box: IP65rated waterproof

3. Temperature coefficient

NOCT Cell: 46±2℃

Temperature coefficient Isc(%): +0.04±0.015%/℃

Temperature coefficient Voc(%): -0.3±0.02%/℃

Temperature coefficient Pm(%): -0.45±0.05%/℃

Temperature coefficient Im(%): +0.04%/℃

Temperature coefficient Vm(%): -0.32±0.02%/℃

Operating temperatures: -40℃~+90℃

Surface pressure: 60m/s(200kg/m2)

4. Warranty:

25 years product defect warranty.

10 years power output warranty: 90% in 10 years, 80% of 25 years.

1. Professional production experience and Adequate inventory,

Customer orders will be produced and delivered in the shortest time.

2.Strict inspection to ensure that the products meet customer's requirements

Customer-orientation:

No matter clients have any solar product projects, we will Offer very excellent and patient service on solar system solutions. Everything will be made Based on helping clients to solve the problems in solar systems.
