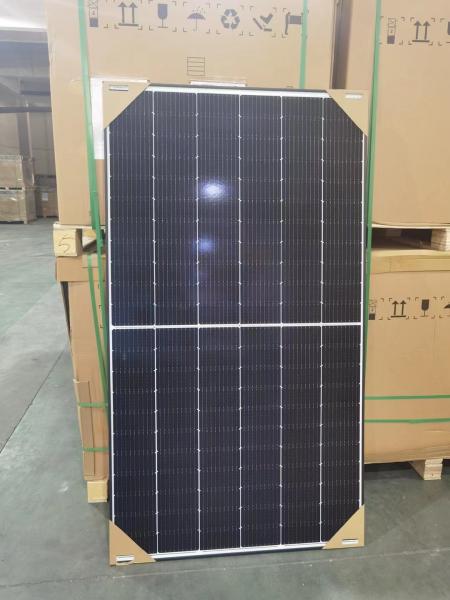

Grade B 132cells 9BB IP67 Rated Mono Solar Panels 375w 395w Dark Blue
Grade B 132cells 9BB IP67 Rated Mono Solar Panels 375w 395w Dark Blue
Grade B 132cells 9BB IP67 Rated Mono Solar Panels 375w 395w Dark Blue
Grade B 132cells 9BB IP67 Rated Mono Solar Panels 375w 395w Dark Blue
Specifications
Brand Name :
Jinko
Model Number :
Tiger Mono-Facial
Certification :
TUV,CE
Place of Origin :
China
MOQ :
negotiated
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500000w per week
Delivery Time :
2-3 days after the payment
Packaging Details :
carton
Cell type :
P Type Mono-crystalline
No.of cells :
132(2x66)
Bus bars :
9BB
color :
Dark blue
weight :
20.8kg(45.86lbs)
Description

Grade B 132cells 9BB Mono Facial 375w-395w Single Glass Dark Blue

Key Features

1)TR technology +Half Cell aims to elmininate the cell gap to increase module efficiency(mono-facial up to 20.69%)

2)9BB instead of 5BB

9BB technology decrease the distance between bus bars and finger grid line which is benefit to power increase

3)Higer lifetime Power Yield

2.5% first year degradation

0.6% linear degradation

4) Severe Weather Resilience

Certifield to withstand :wind load(2400 pascal) and snow load (5400 pascal)

Mechanical Characteristics

Cell Type P Type Mono-Crystalline
No.of cells 132(2x66)
Dimensions 1855x1029x30mm(73.03x40.51x1.18inch)
Weight 20.8kg(45.86lbs)
Front Glass 3.2mm ,Anti-Reflection Coating,High Transmission,Low Iron,Tempered Glass
Frame Anodized Aluminium Alloy
Junction Box IP67Rated
Output Cables

Tuv 1x4.0mm²

(+) :290mm, (-)145mm or customized Length

Grade B 132cells 9BB IP67 Rated Mono Solar Panels 375w 395w Dark BlueGrade B 132cells 9BB IP67 Rated Mono Solar Panels 375w 395w Dark Blue

OUR Services :

1. Rich experience in manufacturing and exporting electric equipment.
2. High quality and competitive price.
3. Strict quality control and excellent after-sales service.
4. Manufacturing according to customers requirements is available.
