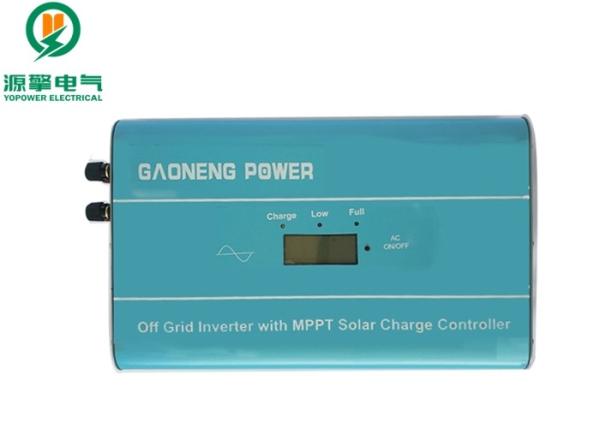

LCD + LED Display Solar Controller Inverter 12V 600W With AC DC USB Output
LCD + LED Display Solar Controller Inverter 12V 600W With AC DC USB Output
LCD + LED Display Solar Controller Inverter 12V 600W With AC DC USB Output
LCD + LED Display Solar Controller Inverter 12V 600W With AC DC USB Output
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQMI-12V-600W-40A
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, Western Union, T/T, MoneyGram, Paypal
Supply Ability :
1
Delivery Time :
1
Packaging Details :
Carton box
Rated voltage :
12V
Rated output power :
600W
Solar charging current :
40A
Peak power :
1200W
Over load capability :
720W, 10 seconds
Display :
LCD+LED
Description

600W Solar Controller Inverter Charger 12v With 40A MPPT Solar Conrtoller

The 600W solar controller inverter charger is the perfect addition to any RV or trailer solar power system. Not only will it convert DC power to AC, but it will also keep the battery bank charged with solar during the day and convert to the inverter charger with a generator or shore power at night. This inverter with full power (600W) otutput and 2 times peak power (1200W), with 12V 40A MPPT solar controller build in, it works with 480W solar panel. As a pure sine wave inverter, it is capable of producing cleaner, smoother, quieter, and more reliable electricity to operate tools, fans, lights, and other electronics, without any interference.

1. Features

  • Build in high efficiency MPPT solar charge controller
  • Pure sine waveform output
  • LCD+LED display
  • With AC, DC, USB output

2. Parameters

Model YQMI-12V-600W-40A
Rated voltage 12V
Rated output power 600W
Max. input solar power 480W
Max. input voltage 50V
Start charging voltage (solar) 15V
Charging model MPPT with 3-charging-stages
MPPT efficiency >99.5%
Rated solar charging current 40A
Low voltage disconnect 10.8V
Low voltage reconnect 12.6V
Equalize charging voltage 14.4V
Recovery to Equalize charging 13.2V
Float charging voltage 13.8V
AC output voltage 110V~240V±3%
Frequency 50Hz/60Hz
Output form Pure sine waveform
Inverter efficiency >85%
Optional function

AC charger build in

AC bypass
Ambient temperature -25℃~+55℃
Size 296*144*75mm
Weight 2KG

Remark: The MPPT solar controller model can be customized.

3. Instruction of LED indicator

Charge On Normal charging
Flash Equalize charging or Float charging
Off

Solar panel not connet or the output voltage of

solar panel low than the start charging voltage
Low On Battery voltage is under the low voltage disconnect point
Off Battery voltage normal
Full On Battery full charge
Off Battery is not full charge

4. Details

LCD + LED Display Solar Controller Inverter 12V 600W With AC DC USB Output

5. Application

Solar power system

Solar power system with AC power as complementary
