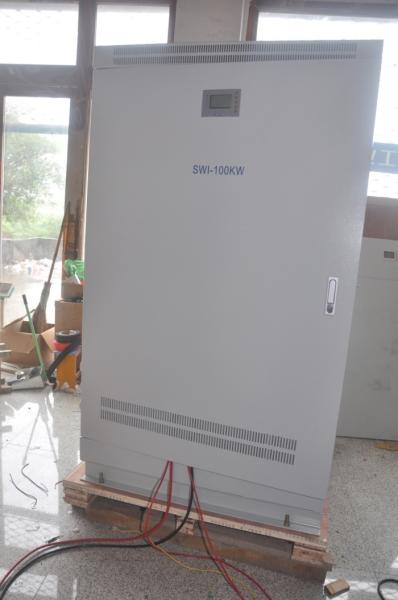

Full Power Output 100KW Off Grid Hybrid Pure Sine Wave Inverter

Yo Power YQLI series hybrid inverter is one of the most advanced DC to AC converter in the world. It’s widely used for solar power system, wind power system and other renewable energy systems which usually install in the mountains, pastoral, border, island, vehicles, ships and other areas without electricity which can provide and guarantee effective power supply. It has the main advantages of high quality pure sine waveform AC output, microcomputer control, humanness design, high efficiency, low no-load loss and no pollution. The inverter can supply AC power to all kinds of electric equipment, such as air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other industrial power supply.

1. Features

• It uses Japanese Mitsubishi sixth generation efficient IPM itelligent module which is high efficiency and stable performance. It has powerful protection, such as short circuit, over load, over temperature and so on. It promises the inverter more safe and reliable and its service life can be up to 15 years or more
• Two kinds of starting model for optional, step-down voltage starting model and variable frequency starting model. Users can set the starting model according to different type of load. This can give full play to the power of inverter, when it work with motor or other inductive loads, users don't need to increase the capacity of inverter, this will reduce lots of cost for users
• Users can adjust the working parameters according to different requirement of different battery, such as over voltage point, low voltage point, over voltage recovery point, low voltage recovery point and so on, these working parameters all can be setted via LCD panel.
• Users can set the output frequency, if a motor need 30Hz power, you can set the output frequency of inverter to 30Hz to suitable this motor. This function is very useful for different type of load
• Pure Sine Wave form output, and the dynamic response less than 30MS, the waveform distortion rate so smaller that making the conversion efficiency higher and output voltage stable.
• The inverter uses low frequency transformer which ensures the AC bus is totally isolation from DC bus. This avoid the interference between AC and DC
• The input ripple current is very small, so the inverter can work with fuel cell battery, lithium battery, lithium-iron battery, GEL batery, lead-acid battery, wind turbine rectifier, hydroturbine-generator set and other kind of DC power source
• The LCD displays the input voltage (DC), output frequency, phase voltage, phase current, mains power voltage, output power, real time, temperature, failure and so on
• High conversion efficiency, up to 93%
• The inverter can work without battery, which will reduce the cost of battery and solar controller, it can be with wide voltage range input of MPPT, 100V~400V, 200V~500V or 400V~800V to maximizing the use of solar energy. (Optional)
• Optional function: RS485 communication, AC bypass, build in solar charge controller, build in AC charger, start diesel generator and so on

2. Parameters

3. Application

• Solar system with battery
• Solar system without battery
