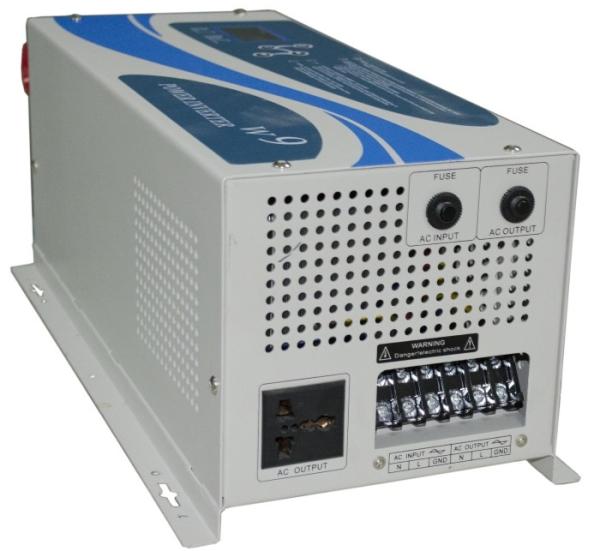

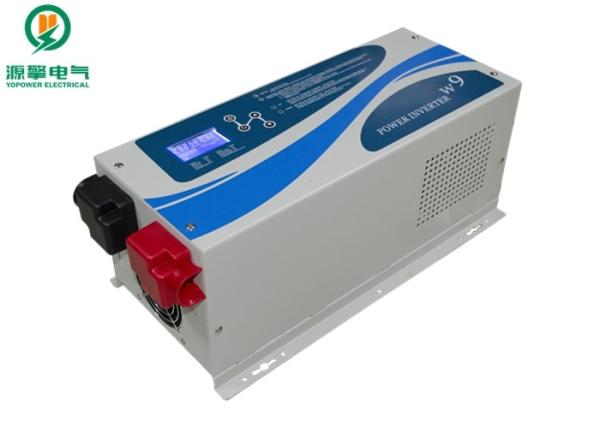

DC To AC Low Frequency Pure Sine Wave Inverter , OEM 5KW Solar Inverter For Home
DC To AC Low Frequency Pure Sine Wave Inverter , OEM 5KW Solar Inverter For Home
DC To AC Low Frequency Pure Sine Wave Inverter , OEM 5KW Solar Inverter For Home
DC To AC Low Frequency Pure Sine Wave Inverter , OEM 5KW Solar Inverter For Home
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQLI-W9/5KW
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
5 units
Price :
Negotiable
Payment Terms :
L/C, D/A, Western Union, T/T, MoneyGram, Paypal
Supply Ability :
1000 units/month
Delivery Time :
With 3 days for 1~10 units
Packaging Details :
Carton box with pearl sponge
Rated input voltage :
24V/48V
Rated output power :
5KW
Peak power :
15KW
Efficiency :
>85%
Display :
LCD+LED
AC charger :
Yes
Description

5KW Low Frequency Pure Sine Wave Inverter Off Grid Single Phase

The 5KW inverter is an intelligent device to converter battery power or grid power to pure AC power for AC appliances, such as TV, fridge, air conditional, radio, ac lamp, laptop and so on. After you connect it to battery, you will able to power household appliances in areas with no access to mains electricity, such as in a motorhome, caravan, boat, farm or any other remote location.

1. Features

  • Low frequency transformer
  • 3 times peak power
  • LCD+LED display
  • Pure sine wave AC output, input and output design isolated well
  • High efficiency conversion, more than 85%
  • There are three working models, battery first model, AC first model and saving energy model, users can choose according to different demands
  • Users can adjust the AC power charging current, max. current is 30A
  • USB port, RS-232 works well with SNMP or other remote control
  • Protection against under-voltage, over-voltage, over-load, short-circuit and over-temperature

2. Parameter

Model YQLI-W9/5KW
Rated output power 5KW
Peak power 15KW
Rated input voltage 24VDC 48VDC
Battery low voltage alarm 21V 42V
Battery low voltage disconnect 20V 40V
Battery over voltage alarm 30V 60V
Battery over voltage disconnect 33.4VV 66.8V
Grid power input voltage range 85~138VAC, 93~150VAC, 170~275VAC, or 186~300VAC
Grid power input frequency range 45Hz~65Hz
Efficiency >85%
Output voltage range (battery first model) 110VAC/120VAC/220VAC/240VAC (±2%)
Output frequency (battery first model) 50/60Hz (±1%)
Output voltage range (AC first model) 220VAC±10%
Output frequency (AC first model) Same to the input frequency (auto tracking)
Output waveform Pure sine wave
Display LCD+LED
Transfer time <4ms
Cooling

Cooling fan in intelligent control

When inside temperature <42℃, fan rotates slowly,

When inside temperature >45℃, fan rotates fast
Battery type Lead-acid battery, Deep cycle battery, GEL battery
Protection

Over load, over discharge, over charge, short circuit,

over temperature, reverse polarity protection and so on
Communication RS232 (optional)
Ambient temperature -10℃~40℃
Noise <55dB
Humidity <95%
Size 580*307*265mm
Packing size 640*365*320mm
Weight 48KG
G.W 51KG
Warranty 2 years
OEM/ODM service Yes

DC To AC Low Frequency Pure Sine Wave Inverter , OEM 5KW Solar Inverter For Home

3. Packing information

1pcs 5kw inverter

1pcs user manual
