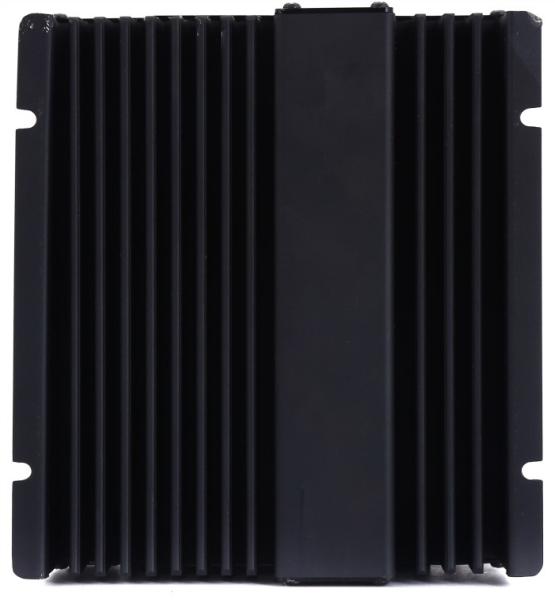

Yo Power PWM Wind Solar Hybrid Charge Controller 100W ~ 800W For Streetlight

It is a PWM model wind solar hybrid charge controller. If wind generator output voltage low than battery voltage obvious, you need the controller with boost function. If wind generator output voltage high than battery voltage bovious, you need the controller with buck function. This kind hybrid controller is suitable for small power generation system with solar panel and wind generator or only wind generator. We suggest use it for streetlight system or monitoring system. And this hybrid controller has two DC output, so it also can work for streetlight&monitoring integrated system.

1. Features

• Protect wind generator from over-current

If the battery is dead, the controller also can protect the wind turbine from over -speed.

If he battery is dead, the controller can restart itself by sunshine

• Intelligent limiting of batteries max current
• Function of manual brake
• Wind charging manual switch
• Solar charging manual switch
• DC output manual switch
• DC output has 4 kind of diversified working models
• DC output has boost constant current and buck constant current function for user selection. (If you don't know which model is suitable for you, please feel free to contact us)
• RS232/RS485 interface (optional)

2. Parameters

• Electrical Parameters

• Voltage parameters

• Remark 1: The parameters are marked in Red color can be adjusted by users according to different requirement of different battery
• Remark 2: This kind wind solar hybrid charge controller suitable for streetlight system. If you have wind solar hybrid power generation system but don't know how to choose right controller, please share the details of wind generator and solar panel in the system, we will recommend right model for you

3. Application
Off grid wind solar hybrid system

Independent wind generation system
Streetlight system
Monitoring system
