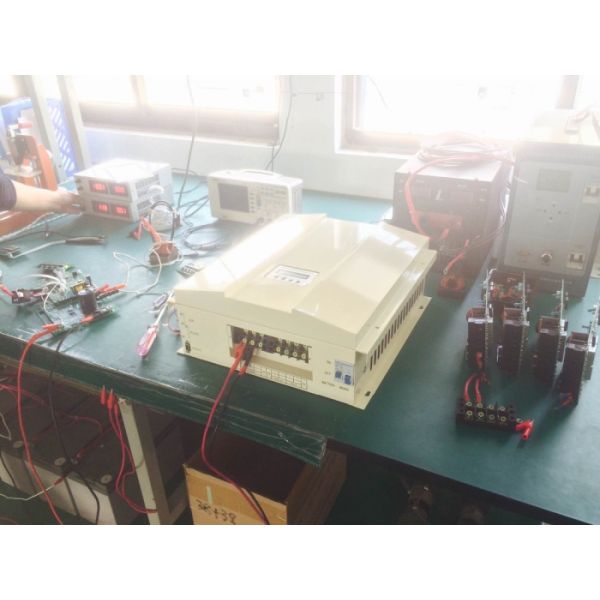

Yo Power 48V 6500W Hybrid Solar Wind Charge Controller 5KW Wind + 1500W Solar

This 6500W hybrid solar wind charge controller is designed for 48V wind solar hybrid system which with 5KW wind generator and 1500W solar panel

1. Features

1.1 Basic Functions

• Wind Turbine and Load Adaptive Impedance Matching, maximize energy utilization

There is internal resistance in Wind generators, batteries and loads. According to impedance matching principle, only when input impedance equals to output impedance, power utilization is maximal, get the maximum power

• Protect wind generator from over-revolution speed, over-voltage and over-current

Max revolution speed, max voltage and max current of wind generator could be set. Once the actual revolution speed, voltage or current over the set ones, PWM intelligent unloading will start automatically. That protect wind generator

• Intelligent limiting of batteries max current

Batteries maximum capacity could be set through this controller. According to the set maximum capacity, controller could calculate the maximum charging current. Then batteries will be protected

• function of manual brake
• Wind charging manual switch
• Solar charging manual switch

1.2 Optional Function

• USB function
• RS232 interface
• RS485 interface
• Anemometer function

2. Parameters

• Remark 1: the parameters are marked in Red color can be adjusted by users according to different requirement of different battery
• Remark 2: If you have wind solar hybrid power generation project but don't know how to choose a right mode, please tell us the information of solar panel and wind generator in the system, we will recommend right model for you.

3. About the dump load

The dump load is in side the controller because the wind generator power not exceed 5000W

4. Application

Off grid wind solar hybrid system

Independent Wind generation system
