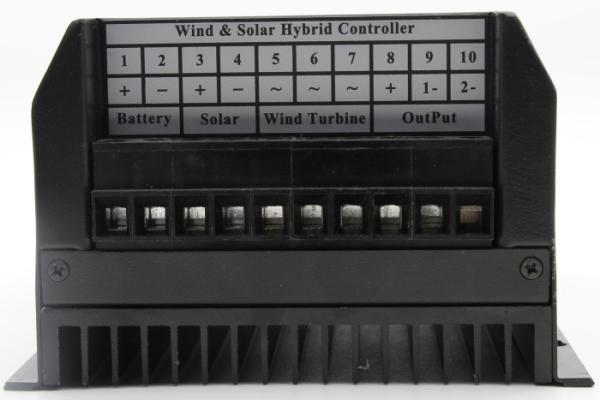

Modularized Design Wind Solar Hybrid Controller , Wind Solar Hybrid Charge Controller
Modularized Design Wind Solar Hybrid Controller , Wind Solar Hybrid Charge Controller
Modularized Design Wind Solar Hybrid Controller , Wind Solar Hybrid Charge Controller
Modularized Design Wind Solar Hybrid Controller , Wind Solar Hybrid Charge Controller
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQHLM series
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
20units
Price :
Negotiable
Payment Terms :
L/C, D/A, Western Union, T/T, MoneyGram, Paypal
Supply Ability :
1000 units/month
Delivery Time :
Within 3 days for 1~10 units
Packaging Details :
Carton box with pearl sponge
Rated system voltage :
48V
Total power :
800W
Warranty :
2 years
Wind charging method :
Buck
Display :
LCD or external display screen
Color :
White or Black
Description

800W Super-intelligent Wind And Solar Hybrid Controller With Buck For Wind

This 800W super-intelligent wind and solar hybrid controller is designed for wind solar hybrid generation system. It works for the total power (wind+solar) not exceed 800W and with 48V battery bank system. This model choose Buck technology for wind charging, it means this hybrid controller will buck the output voltage of wind generator to charging battery even the voltage is too high for battery.

1. Features

  • Intelligentized,modularized design,simple mechanism,powerful functions
  • With industrial range superior components and strict production technology
  • the controller can be used in relatively bad working environment and has reliable performance and long life-span
  • Wind Solar Hybrid Input is Independent. The Wind used for AC Wind or DC Wind
  • MPPT charging way, make sure power max. input to battery and high charging efficiency obtained
  • Be able to use for 600W wind turbine with high compatibility.
  • Independent buck Circuit: Solved the charging efficiency of high-voltage wind generator.

2. Parameters

Model

YQHLF06-02/48

YQHLF05-03/48

YQHLF04-04/48
Rated system voltage 48V
Rated wind generator power 600W 500W 400W
Rated solar panel power 200W 300W 400W
Max. input voltage of solar panel 160V
Battery low voltage disconnect 40.8V
Battery low voltage reconnect 46V
Equalize charging voltage 58.8V
Equalize charging recovery voltage 52.8V
Float charging voltage 54V
Over load voltage 68V
Over load recovery voltage 60V
Wind dumpload rotate speed 500R
Wind pole logarithm 10D
Wind starting charging voltage 48V
Wind dumpload voltage 100V
Rated output current 10A
1st output working model PV control (light on: 6V, light off: 6V) (Adjustable)
2nd output working model PV control on, full power working for 5hrs, light control off (adjustable)
Dump load control model

Over rotate speed limiting, over voltage limiting, Over current limiting, PWM
Wind charging technology MPPT (Buck)
Solar charging technology PWM
Display LCD
Display content

Battery: voltage, charging current, battery power
Wind: voltage, charging current, rotate speed, output current&power
Solar: voltage, charging current
System: status, generation power, error code
Ambient temperature -20℃~55℃
Humidity 35~85%, non-condensing
Standy by consumption ≤3W
Protection type

Battery: over-discharge, over-charge, anti-reverse connection
Wind: Over rotate speed, over voltage, over current
Controller size 203*152*97.4mm
N.W 2.1KG
Packing size 290*170*190mm
G.W 2.5KG
Optional function RS232, RS485, USB, Anemometer
Warranty 2 years
  • Remark 1: The parameters are marked in Red color can be adjusted by users according to different requirement of different battery
  • Remark 2: If you don't know how to choose a right controller for your wind solar hybrid generation system, please feel free to share details about the wind generator and solar panel in the system, then we will recommend right model for you.

Modularized Design Wind Solar Hybrid Controller , Wind Solar Hybrid Charge Controller

3. Application
Off grid wind solar hybrid system
Streetlight system
Monitoring system
