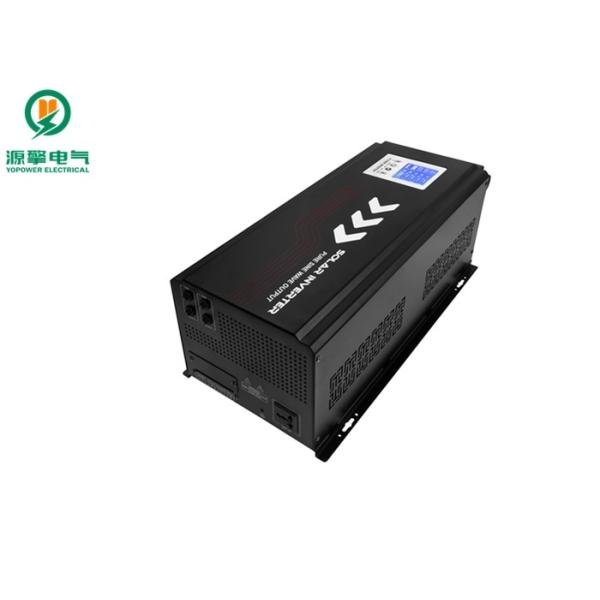

High Efficiency Hybrid Off Grid Inverter 2000W With Solar Battery Charger
High Efficiency Hybrid Off Grid Inverter 2000W With Solar Battery Charger
High Efficiency Hybrid Off Grid Inverter 2000W With Solar Battery Charger
High Efficiency Hybrid Off Grid Inverter 2000W With Solar Battery Charger
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQLI-TM2030
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 units/month
Delivery Time :
With 3 days for 1~10 units
Packaging Details :
Carton box with pearl sponge
Rated voltage :
24V/48V
Rated power :
2000W
Peak power :
4000W
Display :
LCD+LED
Solar controller :
MPPT
Max. charging current :
30A
Description

Yo Power 24V 48V 2000W Hybrid Inverter With Solar Battery Charger FCC ROHS CE

The 2000W hybrid inverter with solar battery charger is designed for off grid solar power system. This inverter gives 2000W continuos and 4000W suger power output, it with pure sine waveform output which suitable for all kinds of AC appliance. It also can build in 12V/24V MPPT solar charge controller.

1. Working principle

The inverter with MPPT solar controller build is highly integrated with digital technology, increased MTBF and reliability, use DSP high-speed microprocessor control, ensure the machine is stable and reliable operation

  • Battery priority mode

In this mode, after you connect the battery, solar panel and grid power to the solar controller inverter, the inverter will first use battery power or solar power for AC loads if the battery power and solar power is enough for running AC loads. But if the battery power and solar power is not enough for running AC loads, the inverter will use grid power for AC loads automatically.

  • Grid power priority mode

In this mode, after you connect battery, PV arrays and grid power to the solar controller inverter, the inverter will first use grid power for AC loads, but if the grid power is down, the inverter will use battery power for AC loads automatically.

2. Parameters

Model YQLI-TM2030
Rated power 2000W
Peak power 4000W
Rated voltage 24V/48V, optional
MPPT Solar charge controller information
Rated charging current 30A
Rated input voltage 24V 48V
Max. input solar power 720W 1440W
Max. input voltage 150V
AC input arrange 170V~275VAC
Input frequency 48Hz~52Hz
Output voltage 220VAC±5%
Output frequency 50Hz/60Hz
Output waveform Pure sine wave
Switch time <10ms
Efficiency >85%
Over load ability 110~120%, 30s. >150%, 3s
Protection Over voltage, low voltage, overload, short circuit, over temperature and so on
Display LCD+LED
Cooling method forced air cooling

Operating

temperature

 0~40℃
Dimension (mm) 520*220*360
N.W (kg) 19
Packing size (mm) 560*265*400
G.W (kg) 26

High Efficiency Hybrid Off Grid Inverter 2000W With Solar Battery Charger
