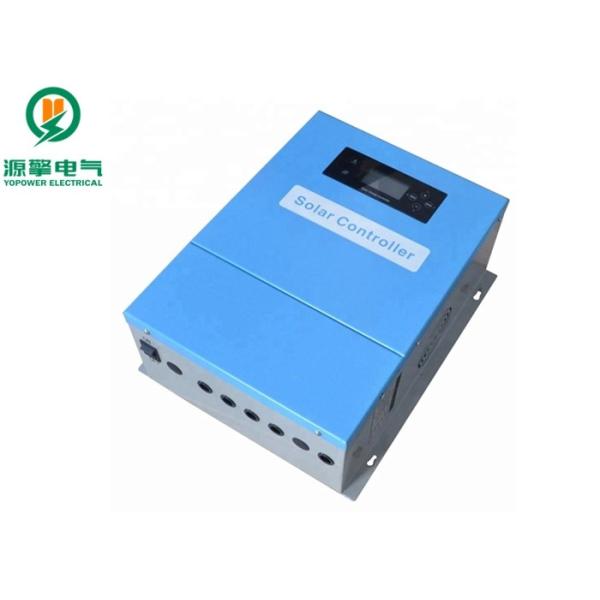

High Efficiency PWM Solar Charge Controller 600V 70A Excellent EMC Designing
High Efficiency PWM Solar Charge Controller 600V 70A Excellent EMC Designing
High Efficiency PWM Solar Charge Controller 600V 70A Excellent EMC Designing
High Efficiency PWM Solar Charge Controller 600V 70A Excellent EMC Designing
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQPV-HP600V/70A
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, Western Union, T/T, MoneyGram, Paypal, D/P
Supply Ability :
1000 units/month
Delivery Time :
With 3 days for 1~10pcs
Packaging Details :
Carton box with pearl sponge
Type :
PWM Solar Charge Controller 600V 70A
Charging method :
PWM with 3 charging stages
Rated voltage :
600V
Charging current :
70A
Warranty :
3 years
Max. input voltage :
1000V
Description

Yo Power High Efficiency PWM Solar Charge Controller 600V 70A

The PWM solar charge controller 600V 70A is a new series of intelligent multi-purpose solar charge controllers. The innovative designing makes it easy to install and quite user-friendly. Advanced battery activation technology which extends the service life of batteries considerably. Meanwhile, parameters are explicitly displayed. All parameter values can be set to meet various applications.

1. Features

  • IGBT power module

  • Excellent EMC designing and Industrial-grade chips ensure stable performance

  • Support RS485 or GPRS communication for PC monitor, more intelligent (optional)

  • 3''LCD+LED display

  • Multi-protection and temperature control

  • Japan imported MOSFET with better performance and more durable

  • New SOC method indicates the power generation information of daily, monthly and total

  • Fully enclosed duct design and high-speed fan for cooling makes the controller working under harsh environments

  • New SOC method indicates the power generation information of daily, monthly and total

  • Users can adjust working parameters suitable to different battery

  • RTC function indicates the real time and temperature

2. Parameters

Model YQPV-HP600V/70A
Rated system voltage 600V
Max. input voltage 1000V
Rated charging current 70A
Max. input solar power 42KW
Stand-by consumption <0.5W
Equalize charging voltage (absorption) 720V
Equalize charging time 120 minutes
Float charging voltage 690V
Over voltage disconnect 800V
Over voltage reconnect 750V
Display 3''LCD+LED
Display laguage English
Indicator light Error indicator/Charging indicator
Terminal type TC series terminal
Humidity 0~98%, non-condensing
Storage temperature -25℃~55℃
Elevation

≦4000M, please reduce the power if

the elevation high than 4000M
Protection level IP32
Noise <30dBA
Dimension 420*345*157mm
N.W 11KG
Packing size 540*470*280mm
G.W 12KG
Packing information Carton box with pearl sponge
Warranty 3 years at least

Users can adjust the working parameters (in red color) to suitable different battery

3. Application

Off grid solar power station system

High Efficiency PWM Solar Charge Controller 600V 70A Excellent EMC Designing

If you have off grid solar power system and don't know how to choose a suitable solar charge controller, could you please tell us the details, we will recommend suitable model for you and tell you how to connect the solar panels to get a best charging efficiency.
