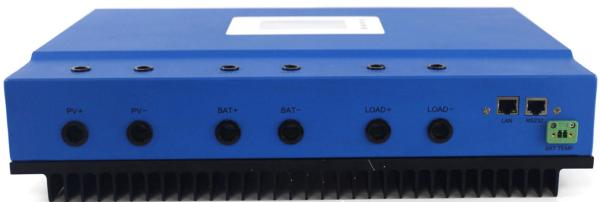

Blue Solar Panel MPPT Charge Controller Intelligent Design With Temperature Sensor
Blue Solar Panel MPPT Charge Controller Intelligent Design With Temperature Sensor
Blue Solar Panel MPPT Charge Controller Intelligent Design With Temperature Sensor
Blue Solar Panel MPPT Charge Controller Intelligent Design With Temperature Sensor
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQMS-M96B-50
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
10 units
Price :
Negotiable
Payment Terms :
L/C, D/A, Western Union, T/T, MoneyGram, Paypal
Supply Ability :
500 units/Month
Delivery Time :
With 3 days for 1~10 units
Packaging Details :
Carton box with pearl sponge
Rated voltage :
96V
Max. charging current :
50A
Max. put voltage :
300V
Max. input power :
5200W
Charging method :
MPPT with 3-stage
Warranty :
3 years
Description

High Efficiency 96V MPPT Solar Charge Controller 50A Price OEM ODM

The 96V MPPT solar charge controller is an intelligent solar regulator which designed for off grid solar power system. With the high efficiency MPPT charging technology, it features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. We accept OEM/ODM service for it.

1. Feartures

  • MPPT charge mode,conversion efficiency up to 99%

  • Maximum PV input is DC 300V

  • Support all kind of batteries, non-normal type can be set on PC software

  • Three stage charge mode: fast charge, constant charge, floating charge)

  • With temperature sensor

  • Anderson connection port, avoide reverse connection

  • RS232 and LAN communication port, free PC software

  • Intelligent design, the device can be upgraded online

  • The devices can suffer the temperature not less than 105°C

  • Perfect protection:input lowvoltage,input overvoltage,input polarity reversal,

    output over voltage,short-circuit over temperature

  • Unlimited parallel

  • 5 discharge mode

  • LCD and LED show all kinds of parameter

  • CE,ROHS,FCC certifications approved.The device also can support to pass the other certifications

  • 3 years warranty

Blue Solar Panel MPPT Charge Controller Intelligent Design With Temperature Sensor

2. Parameters

Model YQMS-M96H-50
Rated system voltage 96V
Rated charging current 50A
Charging technology MPPT
MPPT efficiency >99.5%
Max. input voltage 300V
Start charging voltage Solar voltage>battery voltage+10V

Stop charging voltage

(low voltage)

 Solar voltage<battery voltage+5V

Stop charging voltage

(over voltage)

 Solar voltage>300V
Rated solar power

5200W
Regulator method

PWM with 3-stage

(bulk charging, equalize charging, float charging)

Selectable battery types

(Default is GEL battery)

Sealed lead acid battery, GEL battery, Flooded battery

(Other types battery also can be defined)
Output voltage Same to battery voltage
Max. output current 50A
Output control method ON/OFF manual control, PV control, Time control, PV+Time control
Display LCD (128*64 dots) with backlight
Communication mode

8-pin RJ45 to RS485 supports PC software monitoring

WIFI module support APP cloud monitoring
Cooling method Air cooling
Ambient temperature -40℃~+75℃
Protection level IP43
N.W 7.1kg
Dimension 420*280*95mm
G.W 8.8kg
Packing size 510*368*210mm
Packing information Carton box with pearl sponge
Warranty

3 years at least

3. Application

This 96V MPPT Solar Charge Controller is designed for off grid solar power system which usually install in place where no grid power or people simply want to be independent from grid power and other fossil energy sources.

4. Packing information

1pcs 96V 50A MPPT Solar Charge Controller

1pcs user manual
2pcs Hang Bracket
1pcs Temperature Sensor

5pcs fuse

1pcs RS485 to USB cable
