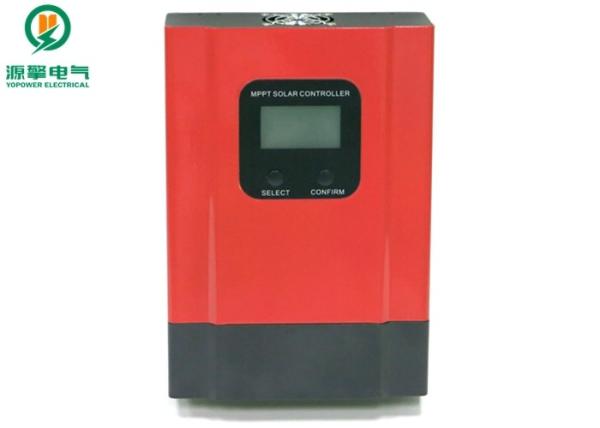

Yo Power Intelligent 12V 24V 36V 48V 40A MPPT Solar Panel Charge Controller

The 12V 24V 36V 48V 40A MPPT solar panel charge controller is an intelligent controller, it is an Automatic recognition system volt DC12V/24V/36V/48V when connect it with your battery at first time. It's our third generation controller which features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. At the same timethe, low voltage disconnect function (LVD) will prevent the battery from over discharging. Compared to our second generation controller, optimized the following points:

• Increase all kinds of protection function to be used more reassuring.
• Add the LOAD sampling to be used more clear of output load.
• Wider PV Input voltage 150VDC,so it suitable for more kinds of PV modules.
• Reduce the static standby self-consumption, energy saving and more simply for small system.
• Support Android and Apple APP to real-time monitor system statues.More intelligent and convenient to protect your solar system.

1. Features

• High efficiency: MPPT control algorithm, MPPT efficiency ≥99.5%, whole Machine conversion efficiency upto 98%
• Charge mode: three stages (bulk charge, absorption charge and float), improve boost voltage charge(activate the battery performance), it prolongs service life of the batteries
• Discharge mode: ON/OFF mode, PV voltage control mode, Dual Time control mode, PV&Time control mode.
• 4 kinds of commonly standard batteries(Flooded, Sealed lead acid, Gel and users)
• PV Max. voltage (VOC): 150VDC
• DC12V/24V/36V/48V Automatic recognition
• RS485 communication
• Most information could be provide by LCD Display. For example, model no., PV input voltage, battery type, battery voltage, charging current, charging power, working status and so on
• The colloid interface design which can avoid scratching your hand
• Good heat dissipation:Aluminum alloy material and fan cooling

2. Parameters

3. Application

This 40A MPPT Solar Panel Charge Controller is designed for off grid solar power system which usually install in place where no grid power or people just want to use solar power independent, such as streetlight solar system, monitoring solar system, RV solar system and so on

4. Packing information

Package Including:
50A MPPT Solar Charge Controller*1pcs
Screwdriver*1pcs
Hang Bracket*2pcs
Temperature Sensor*1pcs
