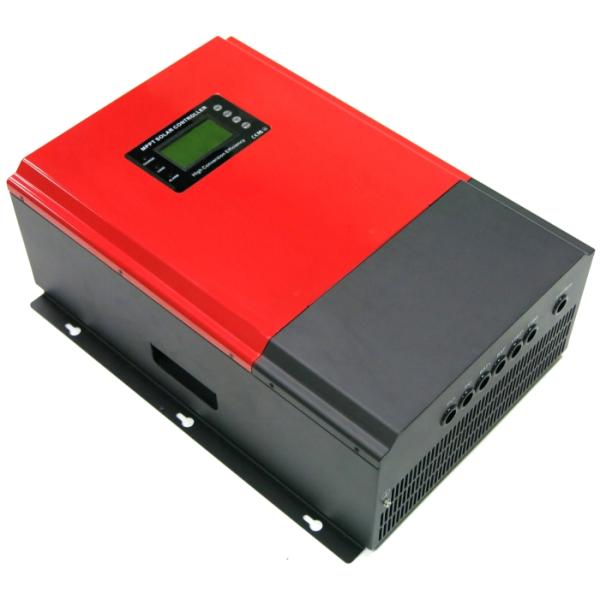

Intelligent MPPT Solar Charge Controller Manual High Efficiency With FCC Certification
Intelligent MPPT Solar Charge Controller Manual High Efficiency With FCC Certification
Intelligent MPPT Solar Charge Controller Manual High Efficiency With FCC Certification
Intelligent MPPT Solar Charge Controller Manual High Efficiency With FCC Certification
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQMS-G384 series
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
5 units
Price :
Negotiable
Payment Terms :
L/C, D/A, Western Union, T/T, MoneyGram, Paypal
Supply Ability :
1000units per month
Delivery Time :
within 3 days for 1~20pcs
Packaging Details :
Carton box with pearl sponge
Rated voltage :
384V
Rated charging current :
70A/80A
Max. input solar power :
29120W/33280W
Color :
Red
Warranty :
3 years
Charging method :
MPPT
Description

Yo Power Intelligent 384V 70A 80A Manual MPPT Solar Charge Controller

Yo power 384V seres manual mppt solar charge controller is an intelligent and high power capacity solar controller which suitable for big power off grid solar power system which install in any area where where people doesn't have grid power or simply want to be independent from grid power and other fossil energy sources. With the high MPPT charging efficiency, the solar controller can help to get more solar power generation. These models don't have DC output

1. Features

  • High efficiency MPPT charging technology
  • Three charging stages to prolong the service time of battery
  • Support multi - machine parallel to realize system power upgrade
  • LCD shows the running data and working status
  • Support PC monitoring and APP monitoring
  • CE, ROHS, FCC certifications
  • 3 years warranty, and 3~10 years extended warranty service also can be provided

2. Parameters

Model YQMS-G384-70 YQMS-G384-80
Rated system voltage 384V
Rated charging current 70A 80A
Max. PV input power

29120w

 33280W
Max. PV input voltage 850V
Charging model MPPT (Maximum Power Point Tracking)
MPPT tracking arrange 288V~512V
Charging method 3 charging stages, bulk charging, equalize charging and float charging
MPPT efficiency more than 99.5%, whole machine efficiency upto 99.8%
Starting charging voltage >Battery voltage+20V
Low voltage stop charging <battery voltage+10V

Selectable battery types

(Default type is GEL battery)

 Flooded, Sealed lead acid, Gel battery
(Other types of batterry also can be defined)
Display LCD
Display language English
Cooling method Fan cooling
Ambient temperature -40℃~+75℃
Operation temperature -20℃~+50℃
Protection level IP21
Dimension 391*500*227MM
N.W 18.8KG
Packing size 590*440*320MM
G.W About 20.6KG
Communication

8-PIN RJ45 port/RS485 port support PC monitoring or

WIFI support APP monitoring
Packing information Carton box with pearl sponge
Warranty 3 years

Intelligent MPPT Solar Charge Controller Manual High Efficiency With FCC Certification

3. Protection

  • PV & Battery reverse connect protection
  • Input Low Voltage Protection
  • Input Overvoltage Protection
  • Charge over voltage power Protection
  • Temperature Protection

4. LCD backlight display

  • System type
  • Charging mode
  • Time
  • Date
  • Day/Month/Total generated energy
  • PV input voltage & input current
  • Battery type & battery voltage
  • Charging current & charging power
