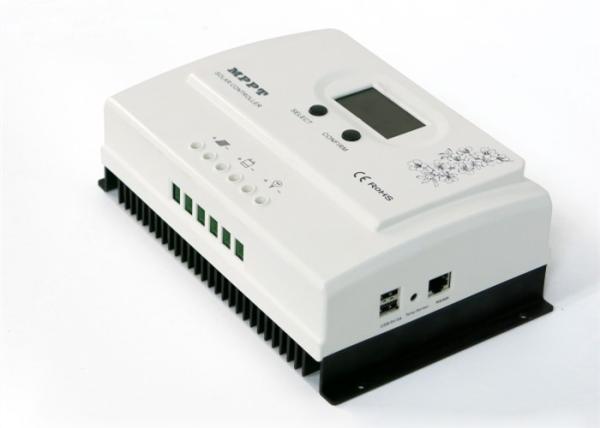

White Color Off Grid Solar Charge Controller With High Definition LCD Display
White Color Off Grid Solar Charge Controller With High Definition LCD Display
White Color Off Grid Solar Charge Controller With High Definition LCD Display
White Color Off Grid Solar Charge Controller With High Definition LCD Display
Specifications
Brand Name :
Yo Power Electrical
Model Number :
YQMS-W12/24-20
Certification :
CE, ROHS, FCC
Place of Origin :
Anhui, China
MOQ :
20 units
Price :
Negotiable
Payment Terms :
L/C, D/A, Western Union, T/T, MoneyGram, Paypal
Supply Ability :
3000 units/Month
Delivery Time :
Within 3 days for 1~50 units
Packaging Details :
Carton box with pearl sponge
Rated voltage :
12V24V auto detect
Rated charging current :
20A
Charging method :
MPPT
MPPT efficiency :
>99.5%
Color :
White
Warranty :
3 years
Description

Off Grid LCD Display 12V 24V 20A MPPT Solar Charge Controller

Wiser3 series MPPT solar charge controller has lots of great features, such as auto cooling, high MPPT charging efficiency, low power consumption, LCD display and so on. It has USB output cocket (5V 3A). It is suitable to widely off grid solar power system, such as communication base station solar system, household solar system, street light solar system, field monitoring solar system and others.

1. Features

  • It has an efficient MPPT efficiency which more than 99.5%, and converter efficiency up to 98%
  • Charge mode: three charging stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries
  • Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control
  • Battery system voltage automatic recognition
  • Three kinds of commonly used lead-acid battery (SealGelFlooded) parameter settings fcan be selected by the user, and the user can also customize the parameters for other battery charging
  • Natural cooling design is adopted to improve the reliability of the product and prolong the service life of the product
  • The input and output of all kinds of protection functions are complete to protect the system
  • The use of high strength plastic shell design makes the shape beautiful, and the effective reduction of the product weight can save the transportation cost
  • Equipped with 5V3A USB dual output power supply function, support mobile phone and tablet charging products etc.
  • It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value
  • High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter
  • RS485 communication, we can offer communication protocol to convenient user’s integrated management and secondary development
  • Support PC software monitoring and WiFi module to realize APP cloud monitoring
  • CE, RoHS, FCC certifications approved, we can assist clients to pass various certifications
  • 3 years warranty, and 3~10 years extended warranty service also can be provided

2. Parameters

Moder YQMS-W12/24-20
Rated system voltage 12V/24V, auto detect
Rated charging current 20A
Max. input voltage 100V
Start charging voltage Solar voltage>battery voltage+3
Stop charging voltage (low voltage) Solar voltage<battery voltage+2
Stop charging voltage (over voltage) Solar voltage>100V
Rated solar power 260W (12V), 520W (24V)
Charging technology MPPT
MPPT efficiency >99.5%
Standby power 0.5~1.2W
Selectable battery type (defaut is GEL)

Sealed lead acid battery, GEL battery, Flooded battery

(other types also can be defined)
Temperature compensation -3mV/℃/2V (default)
Charging method

3-charging-stage

(bulk charging, equalize charging, float charging)
Output voltage Same to battery
Load control current 20A
Output voltage stability precision ≤±1.5%
Output control model

On/Off manul control, PV control, Time control,

PV+Time control
Low voltage disconnect 10.5V (12V)/21V(24V), defaut setting
Display LCD
Ambient temperature -40℃~+75℃
Protection level IP43
Noise <40dB
Altitude <3000 M
N.W 0.83KG
Dimension 200*110*68mm
G.W 1KG
Packing size 250*145*105mm
Optional function RS485/APP communication
Warranty 3 years

White Color Off Grid Solar Charge Controller With High Definition LCD Display

3. Application

Off grid solar sysem

Streetlight system

Monitoring system
