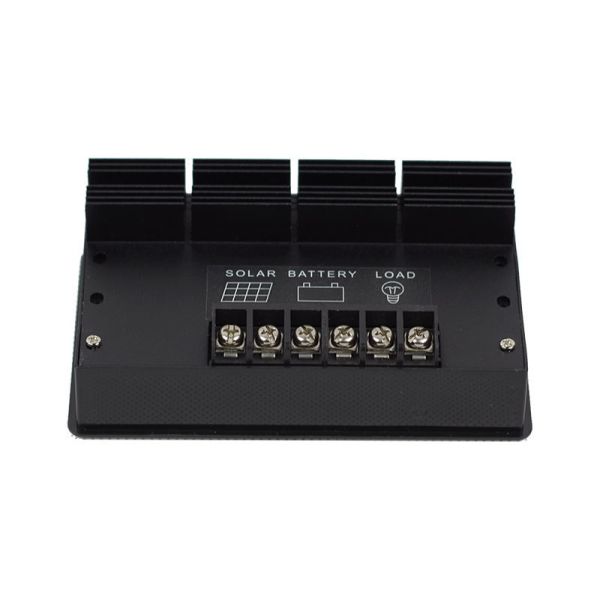

Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller
Specifications
Brand Name :
Chanpower
Model Number :
TEH-CD10A / TEH-CD20A
Certification :
CE FCC ROHS
Place of Origin :
China Shenzhen
MOQ :
500
Price :
negotiable
Payment Terms :
T/T,
Supply Ability :
5000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
10A：120*75*30mm / 20A ：120*75*36.5mm
System Voltage :
12/24V Auto
System Current :
10A/20A
Control mode :
PWM
Circuit protection :
Over charge/over discharge
Description

Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller

Feature:

  • Dual period design, can charge for solar system sectionally or set configuration for power supply of solar home system.5V 1.2A USB charging port on controller can charge for mobile.
  • 12V/24V system voltage automatic recognition.
  • LCD screen display for electrical data and button operation.
  • Improved three-stage charging algorithm, effectively prevent the battery which is imbalance and sulfuretted.
  • Five working modes for load,applied for street light and monitoring equipment.
  • Industrial level design, can be used in a variety of harsh environment.
  • Parameter recovery function even after power cut.
  • Various status indicates, for energy saving, standby state do not have indicator light display.
  • With over charge, over discharge, overload protection,short-circuit protection and reverse charging protection.
  • TVS lightning protection design.

Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller

Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller

Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller

Auto PWM Solar Charge Controller , 10A / 20A 12 Volt Solar Panel Controller

Specification
Model CD10A CD20A
System Voltage 12/24 VDC
System Current 10A 20A
No-load loss ＜6mA/12V；＜7.5mA/24V
Charging circuit voltage drop <0.20V
Discharge circuit voltage drop <0.15V
Equalize charge voltage 14.4V-14.6V; *2/24V
Boost charge voltage 14.6V; *2/24V
Float charge voltage 13.6V; *2/24V
Overcharge voltage 14.8V; *2/24V (turn into float charging after battery full charged)
Charging return voltage 13.2V；*2/24V
Over-discharge return voltage 12.8V；*2/24V
Undervoltage voltage 12.0V；*2/24V
Over-discharge voltage 11.1V；*2/24V
Temperature compensation -4.0mV/℃/2V
Control mode Charge:Pulse width modulation；
Light-control delay time 10min
Working temperature -35℃ to 65℃
Circuit protection Over charge/over discharge (overload short circuit protection: 1.25 times)
All protection will not damage any parts
Size(L*W*H)mm 10A:120*75*30mm 20A :120*75*36.5mm
Net weight 10A:160g 20A:196g
