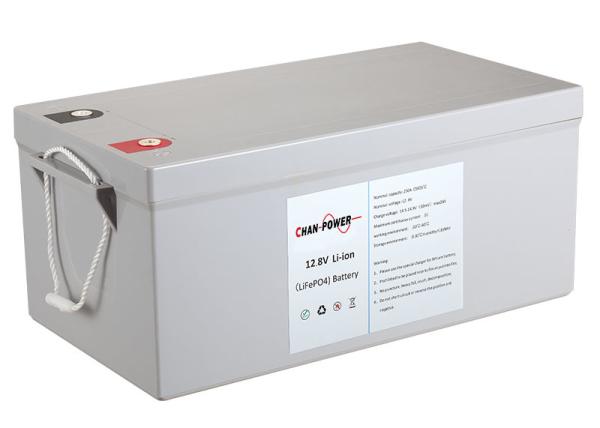

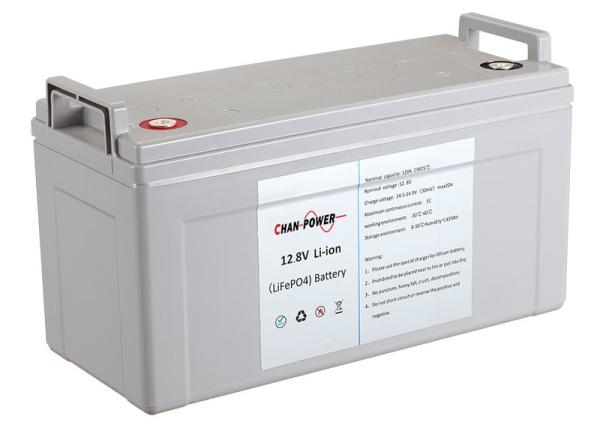

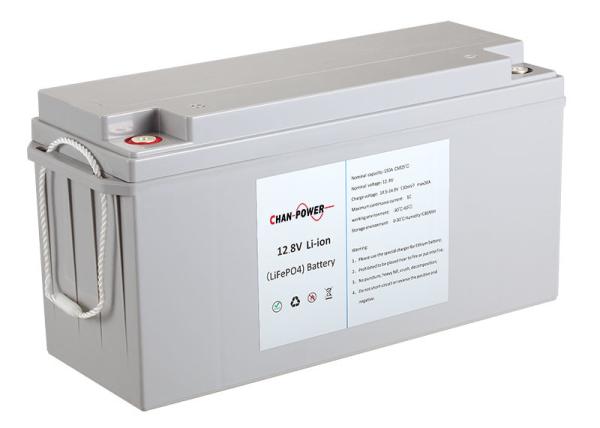

Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack
Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack
Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack
Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack
Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack
Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack
Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack
Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack
Specifications
Brand Name :
Chanpower
Model Number :
12V/100AH 12V/150AH 12V/200AH 12V/250AH
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen China
MOQ :
200
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
carton
Battery :
LiFePO4
Cycle :
2000
Operating Temp. :
0℃ to 60 ℃
Application Area :
Home, Vehicle, Ship, Solar power system
Description

Lithium Battery Pack Built-in LiFePO4 Battery 12V/100AH 12V/150AH 12V/200AH 12V/250AH

Features

  • Good safety, no risk of explosion
  • Large capacity, larger capacity than ordinary lead-acid batteries
  • High temperature performance, electric heating peak is twice that of LiNiCoMnO2 battery
  • Long service life, using cells with more than 2000 cycles, life expectancy of more than 5 years
  • Built-in Chanpower designed BMS control circuit to ensure stable operation and high reliability
  • No memory effect, can often work under the condition of not filling out, charge and discharge at any time, no need to finish and recharge
  • Environmentally friendly, no heavy metals and rare metals, no poisons and no pollution, in line with RoHS environmental protection regulations
  • Light weight, the volume of the battery in the same capacity is 2/3 of the volume of the lead-acid battery, and the weight is 1/3 of the lead-acid battery.

12V / 100AH

Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack

12V / 150A

Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack

12V / 200AH

Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack

12V / 250AH

Vehicle / Ship Lithium Solar Batteries , 12V / 100AH Lifepo4 Solar Battery Pack

Parameter

Specification Model 12V/100A 12V/150 12V/200A 12V/250A
Nominal Characteristics Nominal voltage /V 12 12 12 12
Nominal capacity/Ah(25 ℃ ,0.5C) / ≥ 100 150 200 250
Mechanical Characteristics Weigh(approximate)Kg 13.33 20.00 26.67 33.33
Dimension L*W*H /mm 405*175*235 485*170*240 522*240*215 525*270*215
Terminal F12 F12 F12 F12
Mechanical Characteristics Voltage range/V 9-14.6 9-14.6 9-14.6 9-14.6
Float charge voltage/V 13.8 13.8 13.8 13.8
Max continue discharge current/A 70 70 70 70
Max permanent discharge current/A 150A 10Sec. 150A 10Sec. 150A 10Sec. 150A 10Sec.
Max continue charge current/A 70 70 70 70 70
Cycle life(+20 ℃ 0.2C 100% DOD ) / ＞ 2000 Cycle 2000 Cycle 2000 Cycle 2000 Cycle
Operating Conditions Operating temperature Discharge -30℃ to 60 ℃, charge 0℃ to 60 ℃
Storage temperature 0 ℃ to 30 ℃
Storage duration 12 months at 25 ℃
