Specifications
Brand Name :
Chanpower
Model Number :
TL-4401
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen China
MOQ :
500
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per month
Delivery Time :
30~35 work days
Packaging Details :
Carton
Solar Panel :
180w
LED :
60w CREE
Controller :
Charge Controller PWM
Battery :
LiFePO4
Application :
Square, Outdoor, Parking
Pole Length :
6-10m
Description

High Output Solar Lights LiFePO4 1650ah, 60watt, Lifespan 50000hrs

Feature

  • Average distribution light lens, long pole distance, easy to get the acceptance requirements
  • Solar Street Light LED Fixture with anti-reflective coating improving light absorption and reduces surface dust
  • Solar Street Light LED Fixture, High-Pressure Die-casting Aluminum.
  • Solar Street Light PV Panel,Superior Aluminium alloy material, radiating function is more efficient,make sure long lifespan
  • Solar Street Light PV Panel,Excellent efficiency based on innovative
  • Solar Street Light battery,Environmentally friendly, no heavy metals and rare metals, no poisons and no pollution, in line with RoHS environmental protection regulations
  • Solar Street Light battery,Light weight, the volume of the battery in the same capacity is 2/3 of the volume of the lead-acid battery, and the weight is 1/3 of the lead-acid battery.
  • Solar Street Light battery,Extremely low internal resistance and self-discharge rate
  • Solar Street Light battery,Long life design
  • Battery Box Waterproof , IP 67,Antiseptic

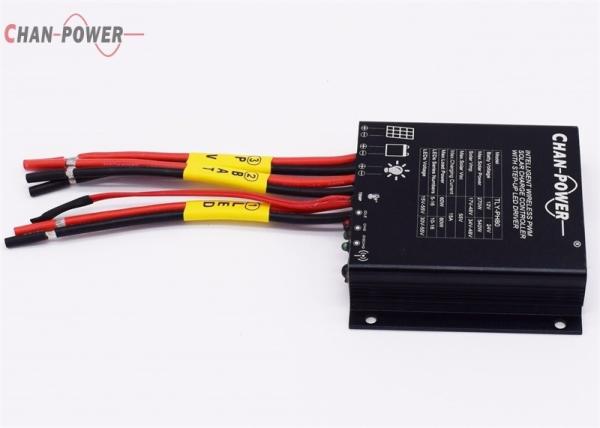

  • Solar Street Light Controller,Use MOSFET as electronic switch, without any mechanical switch
  • Solar Street Light Controller, Multiple load control modes, increase the flexibility of the load output
  • Solar Street Light Controller,LandStar BP has no keys , The control function and the switch condition of the load can be modified by communication connection
  • Solar Street Light Controller,Use of standard Modbus communication protocol for TTL-232 bus connections, communication protocol compatibility much better
  • Solar Street Light Pole, Q235A superior quality steel for Poles
  • Solar Street Light Pole,Dismountable parts save more shipping space,saving your money.

Square Outdoor Solar Powered Lights , 180w High Output Solar Lights


Parameters

Item TL-4401 TL-4401 TL-4401 TL-4401
Light Style Split Split Split Split
POWER 60W 80W 100W 120W
LED Flux 8100~9900 lm 10800~13200 lm 13500~16500 lm 16200~19800 lm
Color Temp 4000~6000K 4000~6000K 4000~6000K 4000~6000K
Brand CREE CREE CREE CREE
Max Power 60W 80W 100W 120W
Life 50000hrs 50000hrs 50000hrs 50000hrs
Solar Panels Largest Wattage 180W
monocrystalline silicon
240W
monocrystalline silicon
300W
monocrystalline silicon
360W
monocrystalline silicon
Life 25years 25years 25years 25years
Battery Type Lithium iron phosphate
battery 1650WH
Lithium iron phosphate
battery 2200WH
Lithium iron phosphate
battery 2750WH
Lithium iron phosphate
battery 3300WH
Life 5-8years 5-8years 5-8years 5-8years
Control Type ChanPower MPPT / PWM ChanPower MPPT / PWM ChanPower MPPT / PWM ChanPower MPPT / PWM
Charge / time valid for 6 hours of sunshine valid for 6 hours of sunshine valid for 6 hours of sunshine valid for 6 hours of sunshine
Discharge / time Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs
Lighting Time 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days
Normal Setting 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr]
Light Fixture Materials Aluminium Aluminium Aluminium Aluminium
Style Selectable Selectable Selectable Selectable
Installation Height and Distance Height 6-10M / Distance10-25M Height 6-10M / Distance15-30M Height 8-12M / Distance20-35M Height 8-12M / Distance20-35M
Installation Hole Diameter:40-75MM Diameter:40-75MM Diameter:40-75MM Diameter:40-75MM
Pole Type Cone [Ø60mm/Ø140mm] Cone [Ø60mm/Ø140mm] Cone [Ø60mm/Ø180mm] Cone [Ø60mm/Ø180mm]
Material Galvanized Sheet with Coating Galvanized Sheet with Coating Galvanized Sheet with Coating Galvanized Sheet with Coating
Length 6-10M 6-10M 8-12M 8-12M
Thickness 2.5MM 2.5MM 3.0MM 3.0MM
Weight 35-45kg 35-45kg 40-50kg 40-50kg
Flange 250*250mm 250*250mm 300*300mm 300*300mm
Anchor Bolt 2kg 2kg 3kg 3kg


FAQ

Q: Can I have the sample of Chanpower solar controller products?

A: Sure, you can order the sample from us. Pls let us know the Model No. and the Quantity. Normally, Chanpower will have many stored for the standard solar controller products.

Q: Any discount available for the big quantity order?

A: The price of our solar LED street lights products can be negotiated if you have big quantity order or some projects in hand.

Q: Is Chanpower solar street light controller really environmentally friendly?

A: A single kilowatt-hour of electricity will generate 1.34 pounds (610 gm) of CO2 emissions. Assuming the average light bulb is on for 10 hours a day, a single 50-watt halogen lamp will generate 250 pounds (114 kg) of CO2 every year. The 8 watt Chanpower equivalent will only be responsible for 40 pounds (18 kg) of CO2 over the same time span. A building's carbon footprint from lighting alone can be reduced by a staggering 68% by exchanging all conventional style lamps for Chanpower. It is our mission to help reduce your long-term costs and yours to help make a difference toward a cleaner, greener future

Q: Can I have a sample order for led light?

A: Yes, Chanpower welcome sample order to test and check quality. Split style solar street lights is suitable for project according to clients’ requirement, need more time for confirm.

Q: What about the delivery date?
A: Sample needs 3-5 days, mass production time needs 1-4 weeks for order quantity more than one container.

Q: Do you have any MOQ limit for led light order?
A: for solar street light controller, 1pc for sample checking is available
