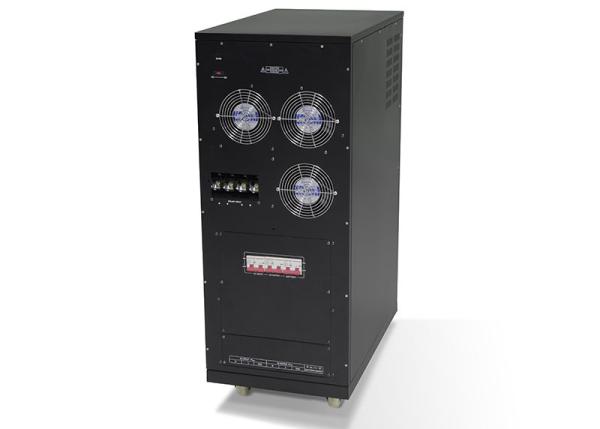

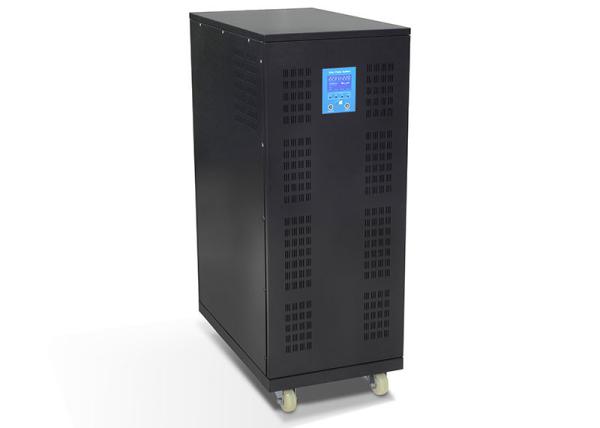

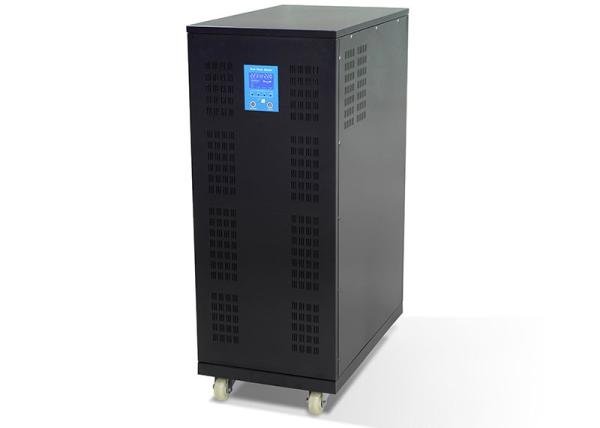

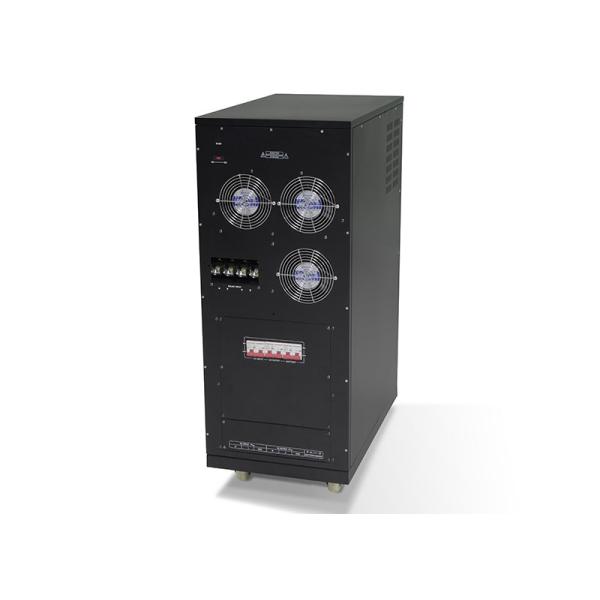

Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Specifications
Brand Name :
Chanpower
Model Number :
NB
Certification :
CE FCC ROHS
Place of Origin :
China Shenzhen
MOQ :
200
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000PCS/DAY
Delivery Time :
5-8 work days
Packaging Details :
Carton
Rated Power :
30KW~40KW
Battery Voltage :
240V / 384V
Wave Output :
Pure sine wave
AC Charge Cur. :
0-15A adjustable
Solar Controller :
PWM / MPPT
Communication :
Optional
Description

Solar Inverter Controller Pure Sine Wave Low Frequency Inverter Charger 30KW~40KW

Application Area

  • Home applicance: solar power system, fan, lamp,cooker etc.
  • Office equipment: PC, printer etc.
  • Electric communicaitons: monitoring device, communication station etc.
  • Electric tools: electric drill, pumching machine, water pump etc.
  • Vehicle & ship equipment: ambulance, yacht, traffic lights etc.
  • Emergency power supply: standby power supply


Feature

  • Pure sine wave output.
  • Wide AC voltage input range, AVR output.
  • Adopt traditional EI transformer , stable performance.
  • LCD/LED&LCD real-time display, concise and straightforward.
  • Working modes: AC first or battery first optional, intelligent charging.
  • Built-in MPPT or PWM charge controller

Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Solar Pure Sine Wave Ac Inverter , 30KW - 40KW 240 Volt Inverter Charger
Parameter

Specification
Model: NB / T303240403384
Rated Power30KW40KW
Battery Voltage240V384V
Size(L*W*Hmm)720*435*1120
Packing Size(L*W*Hmm)790*505*1260
N.W.(kg)135160
G.W.(kg) (Wooden Packing)150180
Parameters
InputVoltage Range98VAC~125VAC / 102VAC~131VAC / 107VAC~137VAC /195VAC~250VAC / 204VAC~262VAC / 213VAC~273VAC
Frequency Range45Hz~64Hz
OutputVoltage Range110VAC±2% / 115VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% (Battery Mode)
Frequency Range50Hz±0.5 or 60Hz±0.5
Output WavePure Sine Wave
Total Harmonic Distortion≤3%
Transfer Time≤4ms
Efficiency≥85%
Working ModeBattery First/AC First/Saving Energy Mode
AC Charging currentMax 15A
Inside Solar controller
Charging ModePWM / MPPT
Charging current240V/384 System: 50A,100A,150A,200A
PV Input Voltage Range240V System: 300V-440V; 384V System:480V-704V
Max PV Input Voltage(At 25℃)240V System:500V; 384V System:750V
PV Array Maximum Power240V System:14KW,28KW,21KW*2,28KW*2；384V System:22.4KW,44.8KW,33.6KW*2,44.8KW*2
Battery TypeAccording to Customer Requirements
DisplayLCD
Thermal methodCooling fan in intelligent control
CommunicationRS232(Optional)
ProtectionOver-loadOverload exceeds 110%,automatic shutdown in 30 secs；Overload exceeds 120%,automatic shutdown in 2 secs(Under mains supply mode, it will not shutdown if overload, just keeping sound)
Short circuitOutput short-circuit, automatic shutdown after keeping sound 20 secs
BatteryHigh or low voltage protection
Reverse PolarityReverse Polarity protection(Optional)
EnvironmentNoise≤55dB
Temperature-10℃~40℃
Humidity0%~95%(No condense)
AlarmAUnder normal working situation, buzzer without alarm sound
BWhen battery are fault or under overload protection, buzzer keeping sound 4 times each second
CWhen inverter starts in normal situation, buzzer reminds 5 times
Note: All specifications are subject to charge without prior notice
