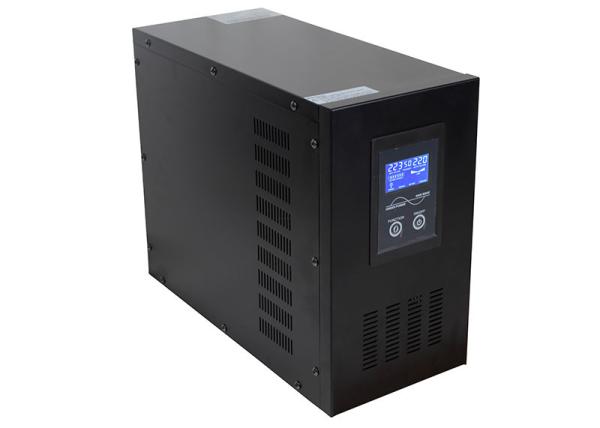

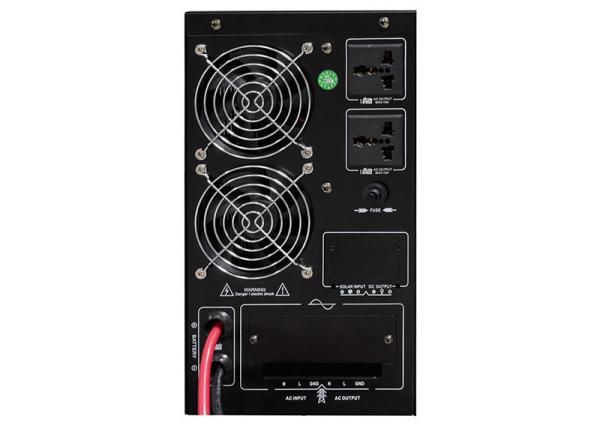

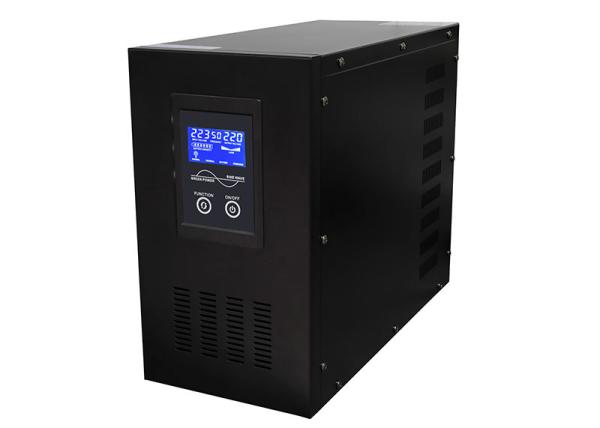

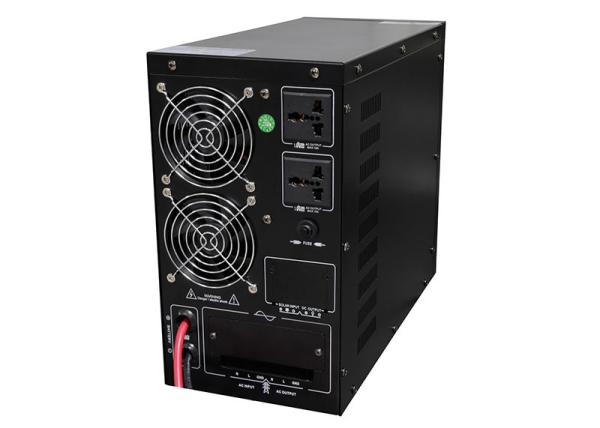

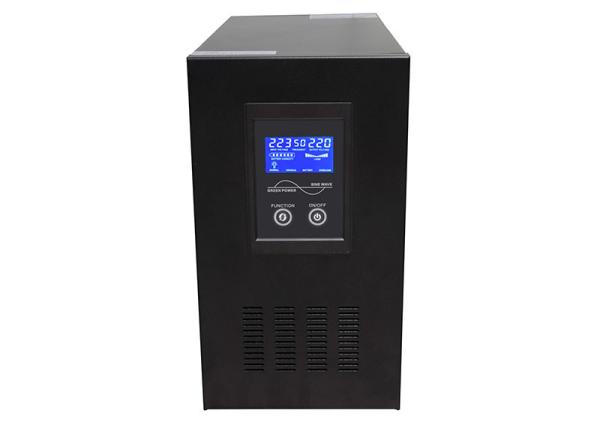

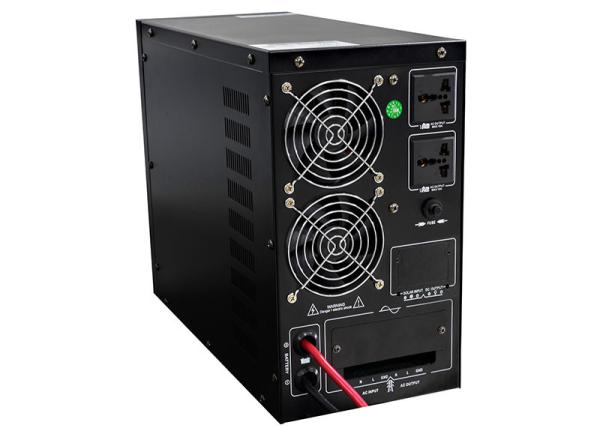

Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Specifications
Brand Name :
Chanpower
Model Number :
NB-15248/20248
Certification :
CE FCC ROHS
Place of Origin :
China Shenzhen
MOQ :
200
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000PCS/DAY
Delivery Time :
5-8 work days
Packaging Details :
Carton
Rated Power :
1.5KW~2KW
Battery Voltage :
24V / 48V
Wave Output :
Pure sine wave
AC Charge Cur. :
0-15A adjustable
Solar Controller :
No
Communication :
Optional
Description

Pure Sine Wave Inverter Low Frequency Inverter Charger 1.5KW~2KW

Application Area

  • Home applicance: solar power system, fan, lamp,cooker etc.
  • Office equipment: PC, printer etc.
  • Electric communicaitons: monitoring device, communication station etc.
  • Electric tools: electric drill, pumching machine, water pump etc.
  • Vehicle & ship equipment: ambulance, yacht, traffic lights etc.
  • Emergency power supply: standby power supply


Feature

  • Pure sine wave output.
  • Wide AC voltage input range, AVR output.
  • Adopt traditional EI transformer , stable performance.
  • LCD/LED&LCD real-time display, concise and straightforward.
  • Working modes: AC first or battery first optional, intelligent charging.

Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance

Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance

Low Frequency Pure Sine Wave Solar Power Inverter 1.5KW - 2KW Stable Performance
Parameter

Specification
Model: NB 15248 20248
Rated Power 1500W 2000W
Battery Voltage 24V/48V 48V
Size(L*W*Hmm) 400*180*320
Packing Size(L*W*Hmm) 460*240*380
N.W.(kg) 18 21
G.W.(kg) (Carton Packing) 19 22
Parameters
Input Voltage Range 73VAC~138VAC / 76VAC~144VAC / 79VAC~150VAC / 145VAC~275VAC / 152VAC~288VAC / 158VAC~300VAC
Frequency Range 45Hz~64Hz
Output Voltage Range 110VAC±2% / 115VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% (Battery Mode)
Frequency Range 50Hz±0.5 or 60Hz±0.5
Output Wave Pure Sine Wave
Total Harmonic Distortion ≤3%
Transfer Time ≤4ms
Efficiency ≥85%
Working Mode Battery First/AC First/Saving Energy Mode
AC Charging current Max 15A
Battery Type According to Customer Requirements
Display LCD
Thermal method Cooling fan in intelligent control
Communication RS232(Optional)
Protection Over-load Overload exceeds 110%,automatic shutdown in 30 secs；Overload exceeds 120%,automatic shutdown in 2 secs(Under mains supply mode, it will not shutdown if overload, just keeping sound)
Short circuit Output short-circuit, automatic shutdown after keeping sound 20 secs
Battery High or low voltage protection
Reverse Polarity Reverse Polarity protection(Optional)
Environment Noise ≤55dB
Temperature -10℃~40℃
Humidity 0%~95%(No condense)
Alarm A Under normal working situation, buzzer without alarm sound
B When battery are fault or under overload protection, buzzer keeping sound 4 times each second
C When inverter starts in normal situation, buzzer reminds 5 times
Note: All specifications are subject to charge without prior notice
