Specifications
Brand Name :
Chanpower
Model Number :
TL-1201 / TL-1202
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen China
MOQ :
500
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per month
Delivery Time :
30~35 work days
Packaging Details :
Carton
PV :
Monocrystalline Silicon 240W
Battery :
LiFePO4 2200ah
Controller :
MPPT/PWM
LED :
80W
Lifespan :
5 years
Pole :
8-10 Meter
Description

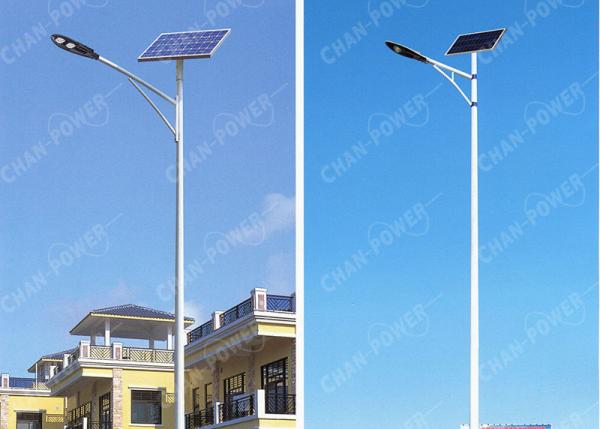

Solar Street Light 80w PV240w Lithium LiFePO4 Battery 2200ah

Feature

  • CE and ROHS certified product
  • Solar Street Light LED Fixture with anti-reflective coating improving light absorption and reduces surface dust
  • Solar Street Light LED Fixture, High-Pressure Die-casting Aluminum.
  • Solar Street Light PV Panel,Superior Aluminium alloy material, radiating function is more efficient,make sure long lifespan
  • Solar Street Light PV Panel, with stand heavier snow load and higher wind-pressure.

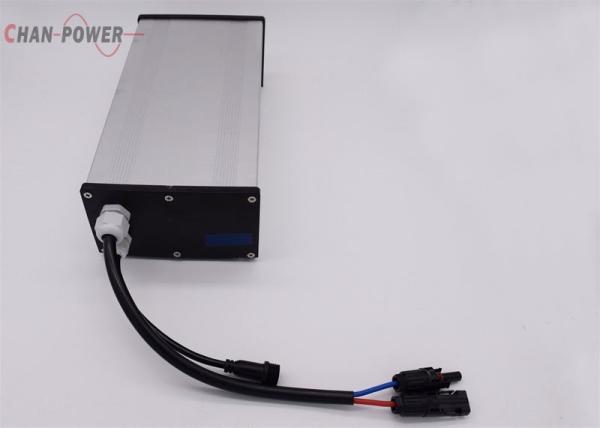

  • Solar Street Light battery,Environmentally friendly, no heavy metals and rare metals, no poisons and no pollution, in line with RoHS environmental protection regulations
  • Solar Street Light battery,Light weight, the volume of the battery in the same capacity is 2/3 of the volume of the lead-acid battery, and the weight is 1/3 of the lead-acid battery.
  • Solar Street Light battery,Easy transportation with no leaking of battery
  • Solar Street Light battery,Real green and environmentally friendly batteries
  • Battery Box Life span: 20 years

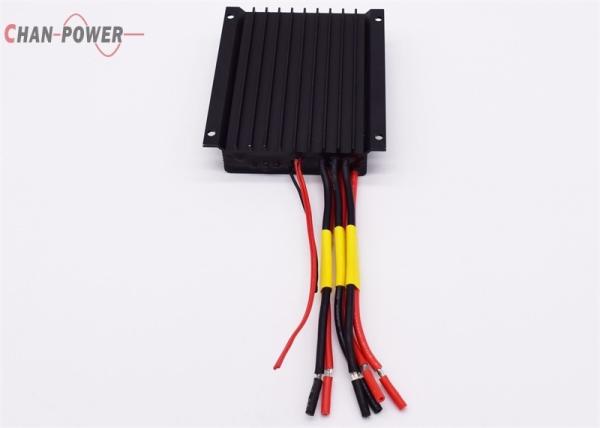

  • Solar Street Light Controller, Gel, Sealed, Flooded and user-defined battery type option
  • Solar Street Light Controller,New SOC method of calculating accurately displays the available battery capacity
  • Solar Street Light Controller,Aluminumhousing
  • Solar Street Light Controller, Suitable for Lead-acid, LiNiCoMnO2, LiFePO4,LiCoO2 battery, etc.
  • Solar Street Light Pole,Hot dip galvanizing(HDG) process make sure 10 years rusty and 20 years lifepan.
  • Solar Street Light Pole,Finish Hot-dip Galvanize, powder coating

High Efficiency Led Street Light Solar System , Solar Powered Parking Lot Lights


Parameters

Item TL-1201/1202-40 TL-1201/1202-60 TL-1201/1202-80 TL-1201/1202-100
Light Style Split Split Split Split
POWER 40W 60W 80W 100W
LED Flux 5400~6600 lm 8100~9900 lm 10800~13200 lm 13500~16500 lm
Color Temp 4000~6000K 4000~6000K 4000~6000K 4000~6000K
Brand CREE CREE CREE CREE
Max Power 40W 60W 80W 100W
Life 50000hrs 50000hrs 50000hrs 50000hrs
Solar Panels Largest Wattage 120W
monocrystalline silicon
180W
monocrystalline silicon
240W
monocrystalline silicon
300W
monocrystalline silicon
Life 25years 25years 25years 25years
Battery Type Lithium iron phosphate
battery 1100WH
Lithium iron phosphate
battery 1650WH
Lithium iron phosphate
battery 2200WH
Lithium iron phosphate
battery 2750WH
Life 5-8years 5-8years 5-8years 5-8years
Control Type ChanPower MPPT ChanPower MPPT ChanPower MPPT ChanPower MPPT
Charge / time valid for 6 hours of sunshine valid for 6 hours of sunshine valid for 6 hours of sunshine valid for 6 hours of sunshine
Discharge / time Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs
Lighting Time 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days
Normal Setting 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr]
Light Fixture Materials Aluminium Aluminium Aluminium Aluminium
Style Selectable Selectable Selectable Selectable
Installation Height and Distance Height 5-10M / Distance10-25M Height 5-10M / Distance10-25M Height 5-10M / Distance15-30M Height 5-10M / Distance15-30M
Installation Hole Diameter:40-75MM Diameter:40-75MM Diameter:40-75MM Diameter:40-75MM
Pole Type Cone [Ø60mm/Ø140mm] Cone [Ø60mm/Ø140mm] Cone [Ø60mm/Ø140mm] Cone [Ø60mm/Ø140mm]
Material Galvanized Sheet with Coating Galvanized Sheet with Coating Galvanized Sheet with Coating Galvanized Sheet with Coating
Length 5-10M 5-10M 5-10M 5-10M
Thickness 2.5MM 2.5MM 2.5MM 2.5MM
Weight 35-45kg 35-45kg 35-45kg 35-45kg
Flange 250*250mm 250*250mm 250*250mm 250*250mm
Ground Cage 2kg 2kg 2kg 2kg


FAQ

Q: Can I have a sample order for led light?

A: Yes, Chanpower welcome sample order to test and check quality. Split style solar street lights is suitable for project according to clients’ requirement, need more time for confirm.

Q: What about the delivery date?
A: Sample needs 3-5 days, mass production time needs 1-4 weeks for order quantity more than one container.

Q: Do you have any MOQ limit for led light order?
A: for solar street light controller, 1pc for sample checking is available

Q: How do you ship the goods and how long does it take to arrive?
A: Chanpower usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. By sea or by air optional.

Q: How to proceed an order for solar led street light?
A: Firstly,let us know your requirements or application.
Secondly,Chanpower quote according to your requirements or our suggestions.
Thirdly,customer confirms the details and places deposit for formal order.
Fourthly,Chanpower arrange the production.

Q: Can Chanpower use our my logo on the solar led light products?
A: Yes. Please inform us formally confirm the design before our production.

Q: Do you offer guarantee for the products?
A: Yes, Chanpower offer 3 years warranty to our products.

Q:How to deal with the faulty?
A: Firstly, Please send us some pictures or videos of the faulty item for our analyzation. Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, Chanpower will send new parts with new order for defective products and Chanpower will assess if it’s necessary to return the faulty item, Chanpower can discuss the solution including recall according to real situation.
