Specifications
Brand Name :
Chanpower
Model Number :
TL-1901
Certification :
CE FCC ROHS
Place of Origin :
Shenzhen China
MOQ :
500
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per month
Delivery Time :
30~35 work days
Packaging Details :
Carton
Solar Panel :
Mono
Solar Battery :
LiFePO4
Solar Charger :
PWM/MPPT
LED :
40-100Watt
Materials LED :
Aluminium
Pole :
Metal Galvanized
Application :
Road
Hight :
6-10meter
Description

Solar Parking Lot Lights 13000lm Battery Lifespan 5 years Backup 5 Rainy Days

Feature

  • Average distribution light lens, long pole distance, easy to get the acceptance requirements
  • Solar Street Light LED Fixture is easy to install and handle for various applications
  • Solar Street Light LED Fixture, Cree or bridgelux leds 3w/pc, big size chip and gold line, real 45mil, high lumen
  • Solar Street Light PV Panel,beautifully plate design ,Highly optimized for general use
  • Solar Street Light PV Panel, with stand heavier snow load and higher wind-pressure.
  • Solar Street Light battery,High temperature performance, electric heating peak is twice that of LiNiCoMnO2 battery
  • Solar Street Light battery, Long service life, using cells with more than 2000 cycles, life expectancy of more than 5 years
  • Solar Street Light battery,Environmentally friendly, no heavy metals and rare metals, no poisons and no pollution, in line with RoHS environmental protection regulations
  • Solar Street Light battery,Light weight, the volume of the battery in the same capacity is 2/3 of the volume of the lead-acid battery, and the weight is 1/3 of the lead-acid battery.

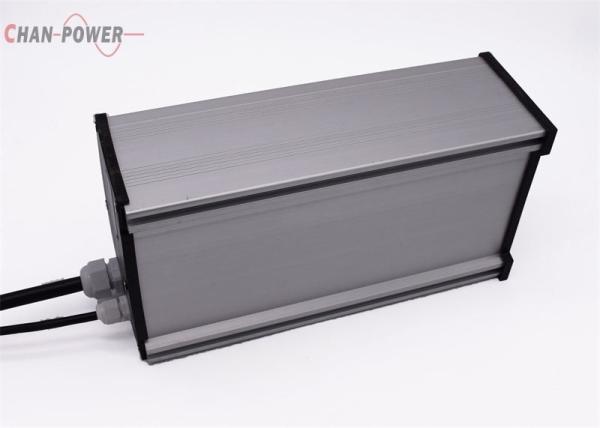

  • Battery Box Waterproof , IP 67,Antiseptic

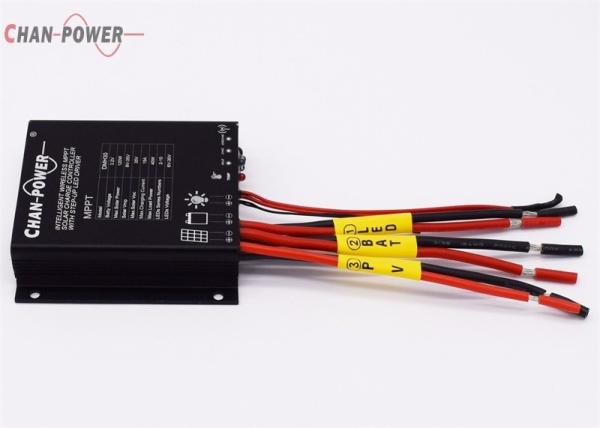

  • Solar Street Light Controller,12V/24V automatic identify or user-defined working voltage
  • Solar Street Light Controller,High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance
  • Solar Street Light Controller, RF remote control settings, read, view data.
  • Solar Street Light Controller, Provides battery reverse protection,solar panel reverse protection,prevent battery discharging to solar panel at night, battery low-voltage protection, battery quit low-voltage protection, LED load short-circuit protection, LED load open-circuit protection, over-temperature protection, TVS anti-thunder protection etc.
  • Solar Street Light Pole, Q235A superior quality steel for Poles
  • Solar Street Light Pole,Thickness: 2.75mm, 3mm

Beautiful Plate Design Solar Led Pathway And Street Light 13000lm Battery Lifespan 5 Years


Parameters

Item TL-1901-40 TL-1901--60 TL-1901--80 TL-1901--100
Light Style Split Split Split Split
POWER 40W 60W 80W 100W
LED Flux 5400~6600 lm 8100~9900 lm 10800~13200 lm 13500~16500 lm
Color Temp 4000~6000K 4000~6000K 4000~6000K 4000~6000K
Brand CREE CREE CREE CREE
Max Power 40W 60W 80W 100W
Life 50000hrs 50000hrs 50000hrs 50000hrs
Solar Panels Largest Wattage 120W
monocrystalline silicon
180W
monocrystalline silicon
240W
monocrystalline silicon
300W
monocrystalline silicon
Life 25years 25years 25years 25years
Battery Type Lithium iron phosphate
battery 1100WH
Lithium iron phosphate
battery 1650WH
Lithium iron phosphate
battery 2200WH
Lithium iron phosphate
battery 2750WH
Life 5-8years 5-8years 5-8years 5-8years
Control Type ChanPower MPPT ChanPower MPPT ChanPower MPPT ChanPower MPPT
Charge / time valid for 6 hours of sunshine valid for 6 hours of sunshine valid for 6 hours of sunshine valid for 6 hours of sunshine
Discharge / time Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs Half Power48hrs,Full Power 24hrs
Lighting Time 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days 12hrs every day 3-5 rainning days
Normal Setting 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr] 5 Time Save Setting,[eg. X% Power Light 1st 4 hours,X% Power Light 2nd 4 hours, X% Power Light 3rd 4 hoursr]
Light Fixture Materials Aluminium Aluminium Aluminium Aluminium
Style Selectable Selectable Selectable Selectable
Installation Height and Distance Height 5-10M / Distance10-25M Height 5-10M / Distance10-25M Height 5-10M / Distance15-30M Height 5-10M / Distance15-30M
Installation Hole Diameter:40-75MM Diameter:40-75MM Diameter:40-75MM Diameter:40-75MM
Pole Type Cone [Ø60mm/Ø140mm] Cone [Ø60mm/Ø140mm] Cone [Ø60mm/Ø140mm] Cone [Ø60mm/Ø140mm]
Material Galvanized Sheet with Coating Galvanized Sheet with Coating Galvanized Sheet with Coating Galvanized Sheet with Coating
Length 5-10M 5-10M 5-10M 5-10M
Thickness 2.5MM 2.5MM 2.5MM 2.5MM
Weight 35-45kg 35-45kg 35-45kg 35-45kg
Flange 250*250mm 250*250mm 250*250mm 250*250mm
Ground Cage 2kg 2kg 2kg 2kg


FAQ

Q: Can Chanpower use our my logo on the solar led light products?
A: Yes. Please inform us formally confirm the design before our production.

Q: Do you offer guarantee for the products?
A: Yes, Chanpower offer 3 years warranty to our products.

Q:How to deal with the faulty?
A: Firstly, Please send us some pictures or videos of the faulty item for our analyzation. Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, Chanpower will send new parts with new order for defective products and Chanpower will assess if it’s necessary to return the faulty item, Chanpower can discuss the solution including recall according to real situation.

Q:Can I Get A Lower Price If I Order Large Quantities?

A:Different Order Quantity Different Price, In Addition Any Customized Service Is Available According To Target Price.

Q:Can I Get The Pre-Production solar street controller Sample?

A:Yes, Pre-Production solar street controller Sample Is Available.

Q:When You Ship My Order?

A:Standard Lead Time Base On Order Details, Any Urgent Please Tell Us Freely, Then Help You.

Q:How About The Quality Guarantee Period?

A:3 Years Warranty And Free Spare Parts Service

Q:How Can You Guarantee The Production Quality?

A:Strict QA System, IQC/PQC/FQC With Internal Inspection, Any 3Rd Party Inspection Is welcome Too.

Q: What are LEDs and how do they work?

A: LEDs or Light Emitting Diodes are a form of semi-conductor. They do not have the gas filled chambers or lighting filaments associated with conventional lamp types. When you pass a current through the LED, it results in the required outcome of light or electroluminescence. Chanpower LEDs present many advantages over conventional light sources including lower energy consumption, longer lifetime, improved robustness, smaller size, faster switching and greater durability and reliability.
