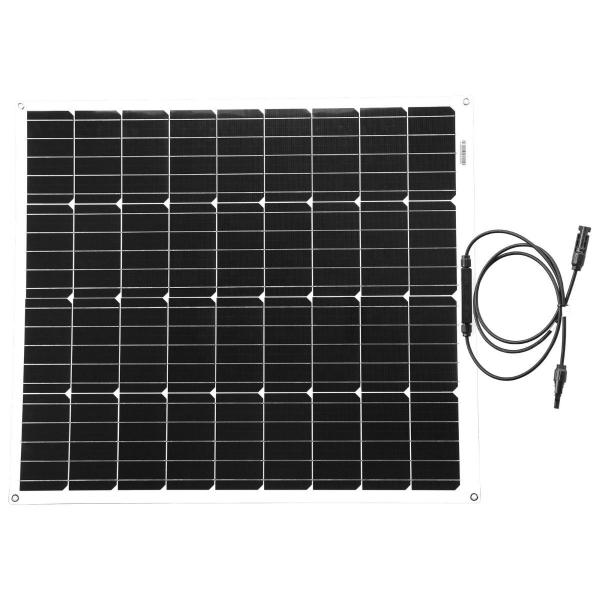

Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Specifications
Brand Name :
AHONY or OEM
Model Number :
eGo S150M
Place of Origin :
Guangdong, China
Packaging Details :
carton box for 50w walk drive on semi rigid solar panel saltwater proof mono perc cell for boat marine yacht rv nautic ce IEC charging battery
MOQ :
10 pieces
Price :
$97.50/pieces 10-99 pieces
Product :
A grade mono cell flexible solar panel
Cell size :
158.75mmx158.75mm
Type :
PERC
Panel Dimensions :
660*1210*3mm
Panel Efficiency :
18.78%
Warranty :
1 year
Solar cell :
A grade 22.5%
OEM Order :
yes
Cable :
0.9m+MC 4
Junction Box :
waterproof IP67
Application :
flexible solar panel for camping rv marine boat yacht
Material :
ETFE surface and white or black backsheet
Certificate :
CE ROHS ISO9001
Description

Mono 150w Flexible Solar Panel Ce Rohs A Grade High Efficiency Cell For 12v Charging Smart Car RV Boat Ya

Product Presentation

* 【EFFICIENT CONVERSION】The solar panel consists of high-efficiency monocrystalline solar cells with an efficiency of up to 21.5%~22.5%. Even if the panel is smaller than the traditional model, it can get higher efficiency.
* 【GOOD PERFORMANCE】The solar panel is long service life, tear resistance, corrosion resistance and high temperature resistance.Excellent resistance to harsh environments.
* 【FLEXIBLE SOLAR PANELS】The plastic backsheet can be bent to a maximum of 30 degrees and can be easily mounted on the roof, car,boat, cabin, tent or any other irregular surface.
* 【LIGHTWEIGHT AND THICK】This solar panel has a power of 100W, but is less than 0.1 inches thick and weighs only about 2.2kg/3.96 pounds for easy transportation, suspension and disassembly.
* 【BUILT-IN BYPASS DIODE TO PROTECT DEVICE】The solar panel charger has built-in bypass diode protection device that will not cause back-flow.
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Model No.
eGo S150M
Product Name
semi flexible solar panel
Maximum Power[Wp]
150
Solar Cell
Monocrystalline solar cell
Cell Array[Pcs]
4*9
Cell Efficiency
21.70%
Size[mm]
660*1210*3
Max Power Voltage Vmp[V]
20.26
Max Power Current Imp[A]
7.40
Open Circuit Voltage Voc[V]
24.01
Short Circuit Current Isc[A]
8.00
Net.Weight[kg]
2.2
Power tolerance[%]
±5%
NOCT[℃]
45±2
Operating Temperature[℃]
-40/+85
Temperature Coefficient Pmax[%/℃]
-0.43
Temperature Coefficient Voc[[%/℃]
-0.34
Temperature Coefficient Isc[[%/℃]
0.05
Maximum System Voltage[V]
1000 V
Maximum Reverse Current[V]
20A
Certification
CE ROHS
Product Description
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Mono Solar Flexible Panels 150W Ce Rohs A grade mono Cell For Smart Car RV Boat Yacht
Product advantages
Introduction of product advantages or application effect or application mode

【Boat yacht rv camping motorhome use】
eGo S mono series are designed for many lifeweight use application,with mono perc cell,efficiency is up to 22.5%,now mostly 21.7%,waterproof ETFE surface.

【Economical,lightweight and easy to install】
Using monocrystalline solar cell is economical,it's thin,lightweight and can easily install on boat surface,rv roof or other flast or max 30degree angle place etc.
【Parking lot|RV Roof|Charge Station】
It has great advantages installing on RV roof,yacht roof,parking lot which may get heated in high temperature in summer.It's
rough surface allows air circulation between to cool down the panels.On the other hand,the thick bottom has bigger distance
between installing surface and solar cell.These keep the solar panel power stable and better performance than other.
FAQ
Q:what's the warranty and lifespan of this semi flexible panel?
A:Warranty is 1 year and more than 15years lifespan.
Q:Can this panel be waterproof?
A:Yes,for camping rv,motorhome,boat yacht use.
Q:What advantage of ETFE compared to other material like PET?
A:ETFE has much higher flame retardancy UL-VTM0,it's not easy to get burnt.ETFE is deisigned for outdoor use,has much longer lifespan than PET or epoxy gel.
Q:Is this panel accept customize size,shape,power,OEM?
A:Yes,this panel can customize into different colours,according to Pantone number,cut into different shape like tree,leaf or artificial aesthestics solar projects.
we accept OEM order as well.
