Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Specifications
Brand Name :
AHONY or OEM
Model Number :
eMarvel 100W PERC
Place of Origin :
Guangdong,China
Packaging Details :
AHONY carton box for 50w walk drive on semi rigid solar panel saltwater proof mono perc cell for boat marine yacht rv nautic ce IEC charging battery
Supply Ability :
3000 Piece/Pieces per Month
MOQ :
4 pieces
Price :
$96.00/pieces 4-50 pieces
Name :
Semi rigid solar module 100w mono marine solar
Panel Dimensions :
510*1075*5mm
Solar cell :
A grade mono perc cell
Cell size :
158x158mm
Type :
PERC
Panel Efficiency :
22.5%
Warranty :
3 years
colour :
white,black or customize other colours
Application :
nautic marine boat yacht catamaran
OEM Order :
yes
Feature :
walk on semi rigid self clean salt water proof
Front Cover :
ETFE surface
Certificate :
CE ROHS SGSsalt mist IEC
Description

Mono 100w Semi Rigid Marine Solar Module Saltwater Proof 12v Pv Battery Charger For Boat Yacht Rv Nautic Ce IEC Charging

Product Presentation

The eMarvel semi rigid marine solar panel uses top quality material and tested in inner lab,under actual sunshine,test in our factory machine,and in the 3rd party laboratory.
Now this semi rigid light marine solar panel can bend a slightly angle max 5degree,they are approved by CE,ROHS,SGS,certified under IEC standard.
AHONY uses high efficiency cell over 21.3% monocrystalline or back contact cells Gen III over 22.6%.We offer a wide ranges of
customize service,OEM,ODM,automatically producing line insures better workmanship,faster delivery and more stable quality.

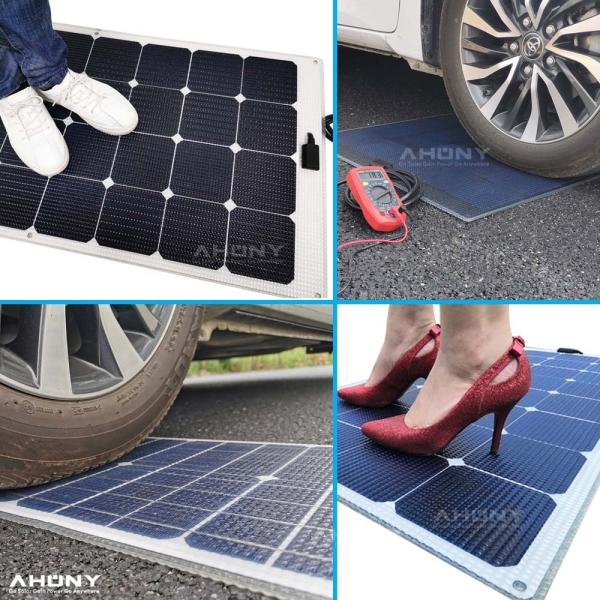

* Walkable and Anti-slippery
* Longer lifespan 15years guaranteed
* High temp resistance and little power loss
* Rigid,thin,light design for widely use
Solar cells can be:Back contact cell;Monocrystalline solar cell;Polycrystalline solar cell.
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Model No.
eMarvel 100w PERC
Product Name
semi rigid solar panel
Maximum Power[Wp]
100
Solar Cell
A grade mono solar cell
Cell Array[Pcs]
3*12
Cell Efficiency
22.5%
Size[mm]
510*1075*5
Max Power Voltage Vmp[V]
20.88
Max Power Current Imp[A]
4.79
Open Circuit Voltage Voc[V]
24.43
Short Circuit Current Isc[A]
5.05
Net.Weight[kg]
5.6
Temperature Coefficient Pmax[%/K]
-0.3
Temperature Coefficient Voc[[%/K]
-1.74mV
Temperature Coefficient Isc[[%/K]
0.05
Maximum System Voltage[V]
1000 V
Product Description
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
high quality premium series eMarvel
Walk on drive on high pressure resistant
anti corrision,salt mist and harsh environment
Pictures show
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger

  • Other size introduction and size picture

Model No.
Power
(W)
Size[mm]
Size may change,please ask sales for latest sizes
Cell Array
Solar Cell type
Solar Cell efficiency
eMarvel 20W
20
480*280*5
SunPower
24.4%
eMarvel 40W
40
440*580*5
3*12
SunPower
24.4%
eMarvel 50W
50
550*595*5
4*8
SunPower
24.4%
eMarvel 60W
60
550*650*5
4*9
SunPower
24.4%
eMarvel 80W
75
550*860*5
4*18
SunPower
24.4%
eMarvel 110W
105
550*1090*5
4*8
SunPower
24.4%
eMarvel 120W
120
550*1220*5
4*9
SunPower
24.4%
eMarvel 135W
135
550*1350*5
4*10
SunPower
24.4%
eMarvel 150W
150
550*1470*5
4*11
SunPower
24.4%
eMarvel 175W
175
920*960*5
7*7
SunPower
24.4%
eMarvel M20W
20
430*350*5
2*18
Longi HPBC
25.4%
eMarvel M40W
40
350*750*5
2*18
Longi HPBC
25.4%
eMarvel M50W
50
350*920*5
2*18
Longi HPBC
25.4%
eMarvel M60W Slim
60
350*1045*5
2*18
Longi HPBC
25.4%
eMarvel M60W
60
510*720*5
3*12
Longi HPBC
25.4%
eMarvel M80W
80
510*935*5
3*12
Longi HPBC
25.4%
eMarvel M90W
90
510*1010*5
3*12
Longi HPBC
25.4%
eMarvel M100W
100
510*1105*5mm
3*12
Longi HPBC
25.4%
eMarvel M110W Slim
110
510*1200*5mm
3*12
Longi HPBC
25.4%
eMarvel M110W
110
670*950*5
4*9
Longi HPBC
25.4%
eMarvel M120W
120
510*1310*5
3*12
Longi HPBC
25.4%
Detailed Images
Product detail drawing
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Self clean Japan ETFE surface,anti skid,
cleaning the dirty when using in marine boat or after rainning.
Longer lifespan and higher flaming retardancy.
transparent edge and laser cutting angle,better performance and higher quality of waterproof.
back up holes can use for both tape sealling or crews installations.
solid salt water proof UL standard cable,sealed Jbox and double side waterproof,it's solid,walk on,drive on and can use in harsh environment like desert,icy,salty etc.
Introduction of product advantages or application effect or application mode
【Yacht-Long Journey Cruise】
eMarvel are designed for harsh environment which enables sailers to enjoy long journey cruise in ocean.The panel are tested under SGS IEC standard in salt mist condition,high moisture.Moreover,passed high temperature high humidity test for more than 1200hours,with stable power output.
【Sticking on Sailing】
We offer a wide range of customize service,small panel are good for sticking on mast which powers light,sailing signal etc.For off grid power station,RV roof.It's also a good match for portable solar panels,portable solar generators,portable solar
case etc.
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
【Parking lot|RV Roof|Charge Station】
It has great advantages installing on RV roof,yacht roof,parking lot which may get heated in high temperature in summer.It's
rough surface allows air circulation between to cool down the panels.On the other hand,the thick bottom has bigger distance
between installing surface and solar cell.These keep the solar panel power stable and better performance than other.
Certificate
CE ROHS SGS salt mist IEC standard,high humidity and temperature
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Related Products
Company Introduction
AHONY POWER was founded in Shenzhen,southest China nearby Hongkong,Dongguan,Huizhou.Our team have more than 9 years solar experience,including producing,marketing,R&D.Ahony owns 4 official issued solar patents,1 of which is solar quick charge invention patent.We passed ISO9001,products are certified by CE,ROHS,SGS,IEC.For every product offered by Ahony,we have strict producing process,quality inspection process and testing process.Ahony is dedicated to clean energy-solar technology innovation,ultralight solar paneltechnology,environmental friendly solar products,solar application,power products etc.
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
Packing&Shipping
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
FAQ
Q:what's the warranty and lifespan of this eMarvel panel?
A:Warranty is 3 years and more than 15 years lifespan.
Q:Can this panel be waterproof and diving into sea water?
A:Yes,for marine riverside use,it can get into sea water and it's no problem when salt water pour onto it when cruise.
Q:If I install the panels on camping RV roof,can I sleep on it?
A:Yes,in this situation the install place should be no more than 5degree and keep the install surface clean.
Q:Is this panel accept customize size,shape,power,OEM?
A:Yes,this panel can customize into different colours,according to Pantone number,cut into different shape like tree,leaf or artificial aesthestics solar projects.
we accept OEM order as well.
Mono Semi Rigid Marine 100w Solar Module Saltwater Proof 12V Pv Battery Charger
