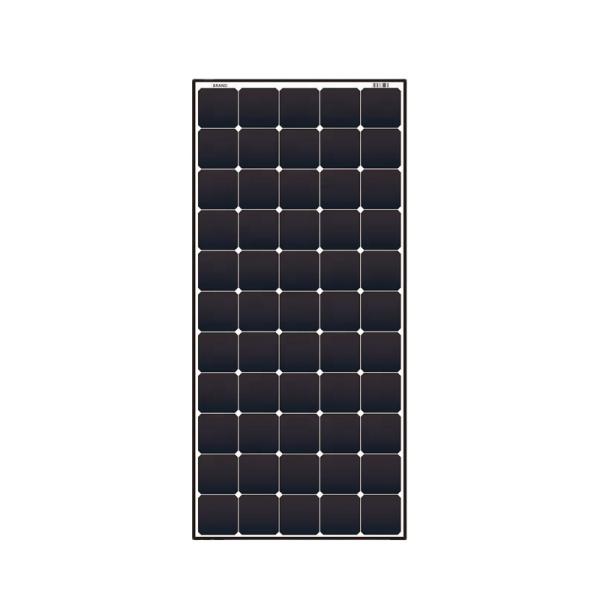

Sunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv Camping
Sunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv Camping
Sunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv Camping
Sunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv Camping
Specifications
Brand Name :
AHONY or OEM
Model Number :
eRigid M200w SP
Place of Origin :
Guangdong, China
Packaging Details :
1pcs per carton box for Top quality 200w solar pv panel sunpower cell ce rohs certified for 24v battery home use rv camping motorhome
Supply Ability :
6000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$202.00/pieces 10-50 pieces
Product name :
12v battery Top quality solar panel sunpower cell for home use
Panel Dimensions :
680*1445*40mm
Solar cell :
SunPower IBC back contact
Cell size :
125mmx125mm
Type :
IBC, Standard Solar Panel
Panel Efficiency :
24.4%
Warranty :
5 years
Certificate :
ISO9001 CE ROHS SGS
Application :
Home use,RV Camping,Motorhome,Trailers,Marine,Boat
Connector :
MC Compatible Connector

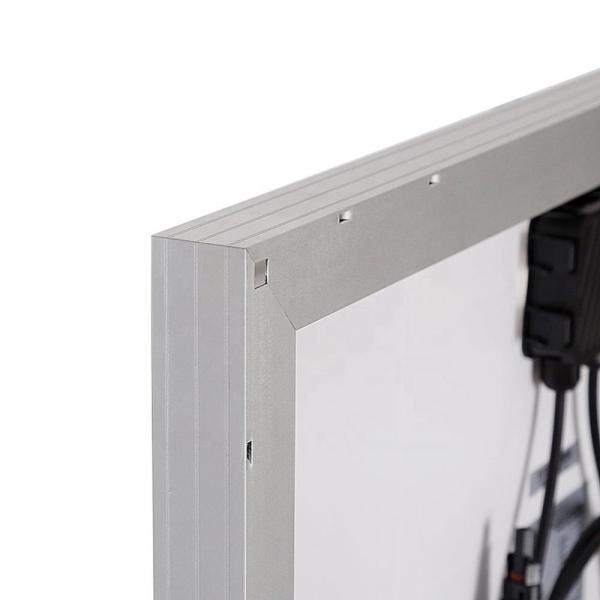

Frame :
Anodized Alluminium Alloy
Frame Color :
Color Silvery BLACK
Cell Type :
125 5inch solar cell
Backing Color :
White
Description

Top Quality 24.4% Efficiency 200w Glass Solar Pv Panel Sunpower Back Contact Cell For 24v Battery Home Use Rv Camping Mo

Product Description

Thank you for interested in our top quality solar panel sunpower cell for home use rv camping motorhome trailers marine boat yacht off grid,we use high quailty SunPower solar cells,cell efficiency over 22.6%.

The soldering is solid and pass solar EL and IV test.

Model No.

 eRigid M200w SP
Product Name Top quality 200w solar pv panel sunpower cell ce rohs certified for 24v battery home use rv camping motorhome
Maximum Power[Wp] 200
Solar Cell SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs] 5*11
Cell Efficiency 24.4%
Size[mm] 680*1445*40
Size[inch] 26.8*56.9
Max Power Voltage Vmp[V] 33.66
Max Power Current Imp[A] 5.95
Open Circuit Voltage Voc[V] 39.7
Short Circuit Current Isc[A] 6.30
Net.Weight[kg] 10.8
Power tolerance[%] ±3%
NOCT[℃] 45±2
Operating Temperature[℃] -40/+85
Temperature Coefficient Pmax[%/K] -0.3
Temperature Coefficient Voc[[%/K] -1.74mV
Temperature Coefficient Isc[[%/K] 0.05
Maximum System Voltage[V] 1000 V
Maximum Reverse Current[V] 20A
Certification CE ROHS
Surface/Backsheet Glass/silver frame/white backsheet
Cables and Connectors Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector
Standard Test Conditions STC: 1000W/m², AM 1.5 and cell temp 25°C
Package

1pcs/carton box and plywood pallet

Sunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv Camping

Company Information
Sunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv CampingSunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv CampingSunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv CampingSunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv Camping

Packaging & Shipping

Sunpower Back Contact Cell Solar Panel 200w Solar PV Panel For Rv Camping

Our Services

AHONY offer a series of after sale service:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact solar products to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.
