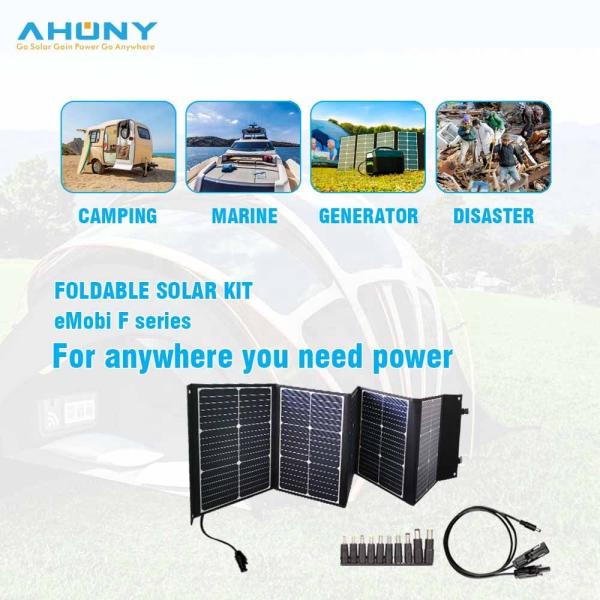

100w Dual Usb Folding Solar Blanket 12V Foldable Solar Power Charger For Generator

Specifications

Brand Name :

OEM

Model Number :

eMobi F100w

Place of Origin :

Guangdong, China

Packaging Details :

single carton box for 100w foldable solar kit 5fold 20w blanket solar module portable solar charger for portable generator dual usb port dc5521 5v 19v

Supply Ability :

5000 Set/Sets per Month

MOQ :

2 sets

Price :

$168.52/sets 2-99 sets

Product name :

110w foldable solar kit for portable generator

Panel Dimensions :

425*310*60mm

Panel Efficiency :

24.4%

Cell size :

125mmx125mm

Type :

IBC,Customized Solar Panel

Warranty :

1 year

Certificate :

CE ROHS ISO

Widely used for :

USB power bank generator

Style :

Sunpower cell quick charge

Application :

Solar Power System emergency portable generator

Selling point :

quick charge small size foldable ultralight

Description

100w Foldable Solar Kit 5fold 20w Blanket Solar Module Portable Solar Charger For Generator Dual Usb Port China Solar M

Product Description

HIGH CONVERSION EFFICIENCY: Constructed form high-efficiency SUNPOWER monocrystalline solar cells, convert solar power into usable energy, up to 24.4% efficiency,with ahony foldable solar kit,you will get greater power generation even though the panel size is no larger than ordinary solar panels.
HIGH COMPATIBILITY: Includes 10 different size of DC connectors, compatible with most portable solar generators on the market(but not for Jackery 440), 8mm DC Adapter for Jackery Explorer 240/160/500 and Goal Zero Yeti 150 / 400 Power Station, 3.5 * 1.35mm DC Adapter for Suaoki S270/ENKEEO S155/Paxcess portable generator, 5.5 * 2.1mm DC Adapter for Rockpals 250W portable generator. MC4 cable for other compatible energy storage devices. USB port for smartphones, tablets or other 5V USB devices.
3-PORT SMART CHARGING TECHNOLOGY: Equipped with dual USB port 5V/2.1A(max) and DC5521 port 18V/3.3A(max), can simultaneously charge your device. The smart IC chip built into the USB port intelligently identifies your device and automatically adjust current; DC port is equipped with a voltage regulator function to prevent damage to the access device caused by excessive output voltage.
HIGHLY DURABLE: Industrial-strength PET polymer faced solar panels sewn into a rugged polyester canvas offer weather-resistant outdoor durability, great for any outdoor activities such as camping, climbing, hiking, picnic.
FOLDABLE AND PORTABLE: Ultra compact of size 420*290*30mm/16.5*11.4*1.2inch(folded)/1115*420*4mm/43.9*16.5*0.16inch(opened), weighs only 4.18 lbs(1.9kg), when folded, it looks like a briefcase or foldable solar suitcase and is easy to carry. 4 metal reinforced mounting holes at each corner allow easy attachment to backpacks, trees, or tents.

Model No.	eMobi FM5x20w
Product Name	12V folding solar kits
Maximum Power[Wp]	100
Solar Cell	Mono PERC A Grade Solar Cell
Cell Efficiency	24.4%
Folded Size[mm]	42531060
Open Size[mm]	17304254
Max Power Voltage Vmp[V]	22.03
Max Power Current Imp[A]	5.0
Open Circuit Voltage Voc[V]	26.0
Short Circuit Current Isc[A]	5.30
Net.Weight[kg]	3.1
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.4
Temperature Coefficient Voc[[mV/℃]	-2mV
Temperature Coefficient Isc[mA/℃]	0.037
Maximum System Voltage[V]	100 V
Certification	CE ROHS
Suface/backsheet	Waterproof textile,PET+FR4 fibreglass
Charge controller	PWM 10A 12/24V,2 USB,LCD display
Cables	5m 14AWG cable
Connector	MC4+battery clips
Supporting Leg	Yes
Eyelets	Yes
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Package	1pcs/bubble plastic bag,then in 1 carton box
