10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox
10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox
10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox
10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox
10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox
10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox
10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox
10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox
Specifications
Brand Name :
HPS
Model Number :
PS42
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500000 sets per year
Delivery Time :
Depends on order quantity
Packaging Details :
standard export package
Housing Material :
42Crmo or 45#steel
Material of Shaft :
as required
Lubricant :
Synthetic Grease
Gear material :
20CrMnTi
Seal ring :
HNBR
Ratio :
4,5,7,10/16,20,25,28,35,40,50,70
Gearing arrangement :
Planetary
Output Torque :
≤10 N.m
Input speed :
≤3000rpm
Backlash :
≤15 arcmin
Packing :
Standard export package
Warranty :
1 year
Description

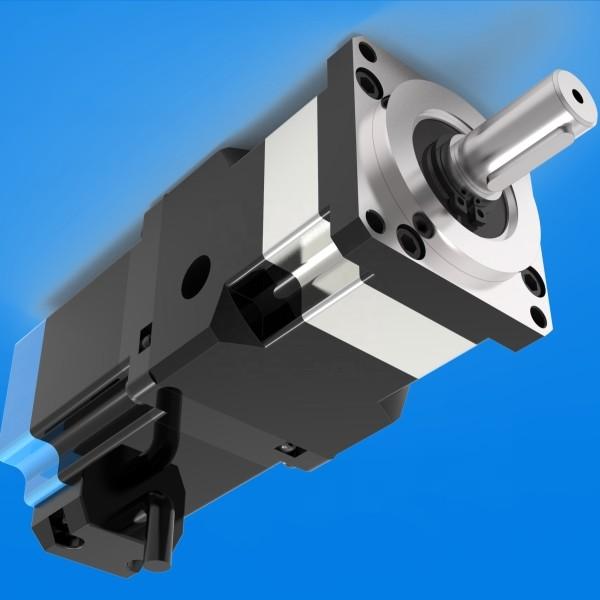

24v Dc 42mm Diameter Square Flange 10mm Output Shaft Planetary Gear Motor

Competitive Advantages

► ODM &OEM ► Noise Test ► Life Test

► Low noise, low backlash, high efficiency ► Water-proof Test ► High-low temperature test

► 20000h long working life ► Impact Test ► Air-tight test

► 100% quality checked and guaranteed ► Salt Spray Test

Planetary gearbox and gear motor solutions, you can count on us. To be the most trustable planetary gearbox and gear motor manufacturer is what we pursue always.

Planetary Gear Motor Specification:

Model PS42
Drive series 1/2
Ratio

4,5,7,10/16,20,25,28,35,40,50,70
Rated output torque(N.m) ≤10
Max torque(N.m) 15
Noise (db) ≤55
Working temperature(℃) -40~80

10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox

10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox

10mm Planetary Gear Motor 24v Dc Hollow Shaft Planetary Gearbox

FAQ

1. Are you manufacturer?

Yes, we are the manufacturer in China.

2. What information shall we give before placing a purchase order?

A) Motor specifications, ratio, output speed, output rated torque, backlash and noise requirements, connection type.

B) Purchase quantity

C) Other particular requirements

3. What applications are your gearboxes being used?

Our gearboxes widely used in the applications of solar energy, AGV, robot arms, textile, food processing, chemical industry, automation production line, environment protection, logistics and etc.

4. Would you customize for special requirements?

Yes, we have design and development team with over 10 years experience in this field.

5. Can I come to your company to visit?

Yes, you can come to our company to visit at anytime
