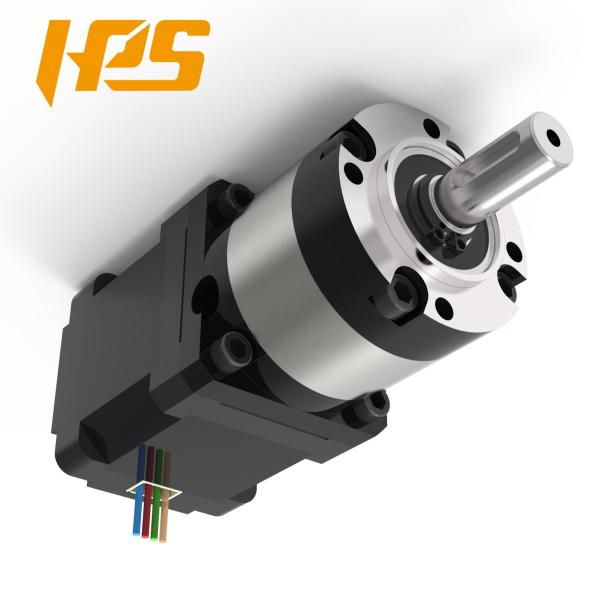

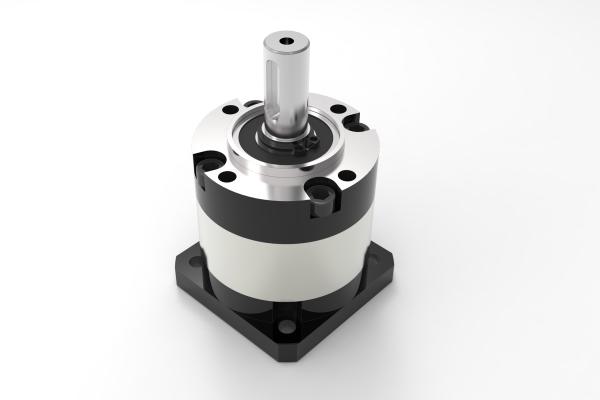

35mm High Torque Dc Motor 24v Gear 20CrMnTi Agricultural Machinery
35mm High Torque Dc Motor 24v Gear 20CrMnTi Agricultural Machinery
35mm High Torque Dc Motor 24v Gear 20CrMnTi Agricultural Machinery
35mm High Torque Dc Motor 24v Gear 20CrMnTi Agricultural Machinery
35mm High Torque Dc Motor 24v Gear 20CrMnTi Agricultural Machinery
35mm High Torque Dc Motor 24v Gear 20CrMnTi Agricultural Machinery
Specifications
Brand Name :
HPS
Model Number :
PLE35
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500000 sets per year
Delivery Time :
Depends on order quantity
Packaging Details :
standard export package
Housing Material :
42Crmo or 45#steel
Material of Shaft :
as required
Lubricant :
Synthetic Grease
Gear material :
20CrMnTi
Seal ring :
HNBR
Ratio :
3,4,5,6/9,15,20,25,30,36,42,45,60,75,90,100,120,125,150,180,216
Gearing arrangement :
Planetary
Output Torque :
≤16 N.m
Input speed :
≤3000rpm
Backlash :
≤15 arcmin
Packing :
Standard export package
Warranty :
1 year
Description

35mm Diameter 16Nm Rated Torque 24v Dc Precision Gear Motor

Application of Precision Gear Motor

(Servo motor, stepper motor, bldc motor, brushless motor, electric motor, gear motor)

Solar utility, solar tracker, medical equipment, industrial automation, automobile, printing equipment,

robots, AGV, agricultural machinery, automation production line etc.

Precision Gear Motor Specifications:

Model PLE35
Drive series 1/2/3/4
Ratio

3,4,5,6/9,15,20,25,30,36,42,45,60,75,90,100,

120,125,150,180,216, 220-600
Rated output torque(N.m) ≤16
Max torque(N.m) 24
Noise (db) ≤55
Working temperature(℃) -40~80

Planetary gearbox and gear motor solutions, you can count on us. To be the most trustable planetary gearbox and gear motor manufacturer is what we pursue always.

Competitive Advantages

► ODM &OEM ► Noise Test ► Life Test

► Low noise, low backlash, high efficiency ► Water-proof Test ► High-low temperature test

► 20000h long working life ► Impact Test ► Air-tight test

► 100% quality checked and guaranteed ► Salt Spray Test

35mm High Torque Dc Motor 24v Gear 20CrMnTi Agricultural Machinery

35mm High Torque Dc Motor 24v Gear 20CrMnTi Agricultural Machinery
