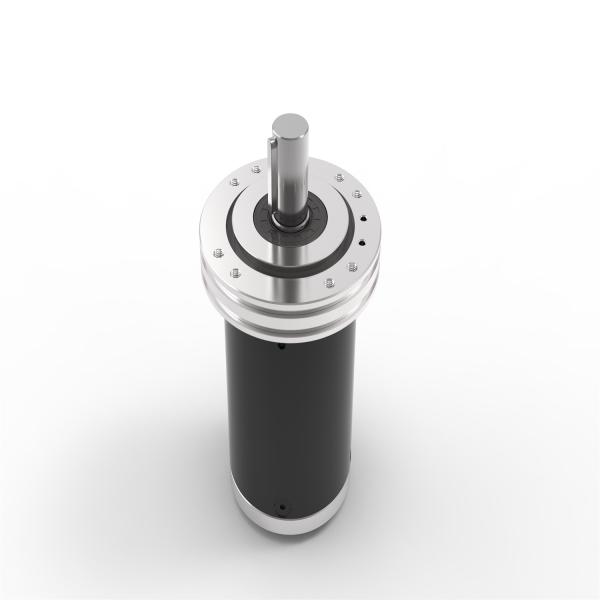

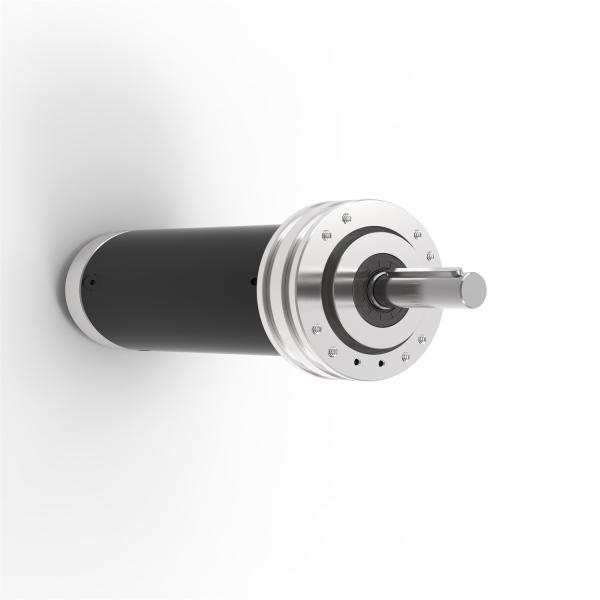

HNBR Electric Motor Gear Reducer Dc High Torque 80mm Diameter 20CrMnTi
HNBR Electric Motor Gear Reducer Dc High Torque 80mm Diameter 20CrMnTi
HNBR Electric Motor Gear Reducer Dc High Torque 80mm Diameter 20CrMnTi
HNBR Electric Motor Gear Reducer Dc High Torque 80mm Diameter 20CrMnTi
HNBR Electric Motor Gear Reducer Dc High Torque 80mm Diameter 20CrMnTi
HNBR Electric Motor Gear Reducer Dc High Torque 80mm Diameter 20CrMnTi
Specifications
Brand Name :
HPS
Model Number :
PLE80
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500000 sets per year
Delivery Time :
Depends on order quantity
Packaging Details :
standard export package
Housing Material :
42Crmo or 45#steel
Material of Shaft :
as required
Lubricant :
Synthetic Grease
Gear material :
20CrMnTi
Seal ring :
HNBR
Ratio :
211:1
Gearing arrangement :
Planetary
Output Torque :
100 N.m
Input speed :
≤3000rpm
Backlash :
≤60 arcmin
Packing :
Standard export package
Warranty :
1 year
Description

80mm diameter Made in China High Torque planetary gearbox electric speed reducer gearbox

Application of Planetary Gearbox

(Servo motor, stepper motor, bldc motor, brushless motor, electric motor, gear motor)

Solar utility, solar tracker, medical equipment, industrial automation, automobile, printing equipment,

robots, AGV, agricultural machinery, automation production line etc.

Competitive Advantages

► ODM &OEM ► Noise Test ► Life Test

► Low noise, low backlash, high efficiency ► Water-proof Test ► High-low temperature test

► Long working life ► Impact Test ► Air-tight test

► 100% quality checked and guaranteed ► Salt Spray Test

Planetary gearbox and gear motor solutions, you can count on us. To be the most trustable planetary gearbox and gear motor manufacturer is what we pursue always.

Planetary Gearbox Specifications:

Model PLE80
Drive series 3
Ratio

211:1
Rated output torque(N.m) 100
Max torque(N.m) 150
Noise (db) ≤55
Working temperature(℃) -40~80

HNBR Electric Motor Gear Reducer Dc High Torque 80mm Diameter 20CrMnTi

HNBR Electric Motor Gear Reducer Dc High Torque 80mm Diameter 20CrMnTi
