Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor
Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor
Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor
Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor
Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor
Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor
Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor
Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor
Specifications
Brand Name :
HPS
Model Number :
SPLE60
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
1Pcs
Price :
40$-36$
Payment Terms :
L/C, T/T
Supply Ability :
500000 sets per year
Delivery Time :
Depends on order quantity
Packaging Details :
Standard export package
Material :
45# Steel & CrMnTi
Texture of Shaft :
As Required
Lubricant :
Synthetic Grease
Gear Texture :
45# Steel
Seal Ring :
HNBR
Ratio :
4,5,7,10,16,20,25,28,35,40,50,70
Name of good :
Planetary Gearbox
Output Torque :
≤30N.m
Input Speed :
≤3000rpm
Arcmin :
≤15
Warranty :
1 Year
Output Speed :
≥43rpm
Description

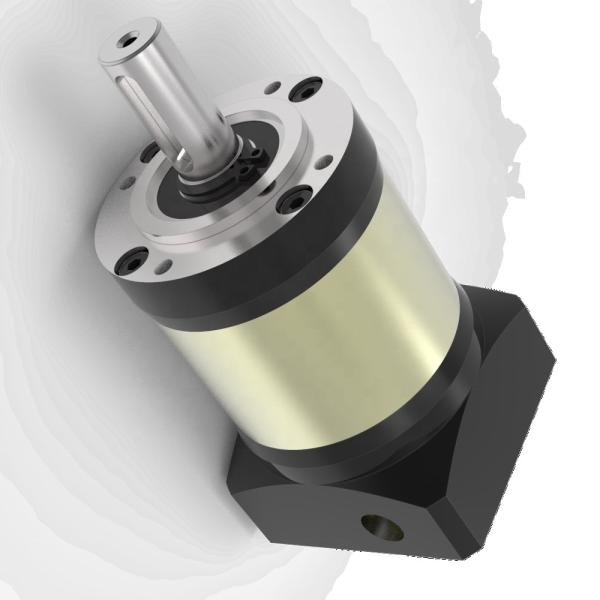

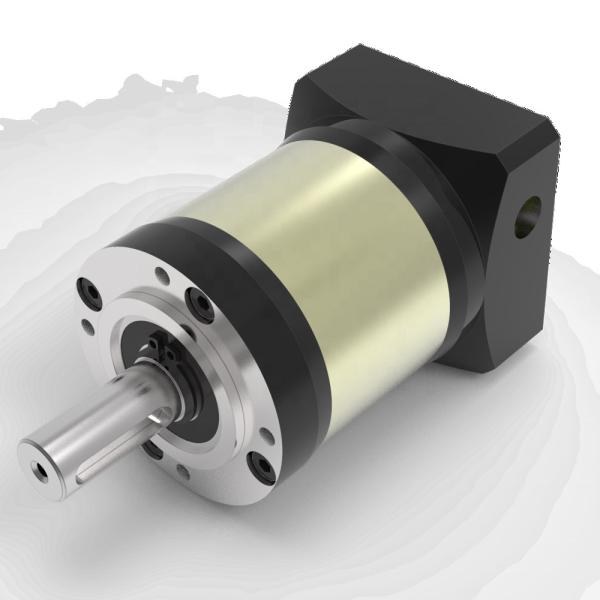

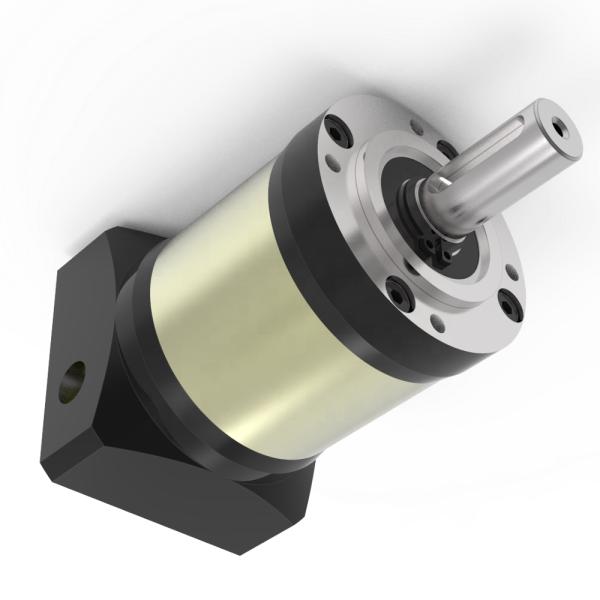

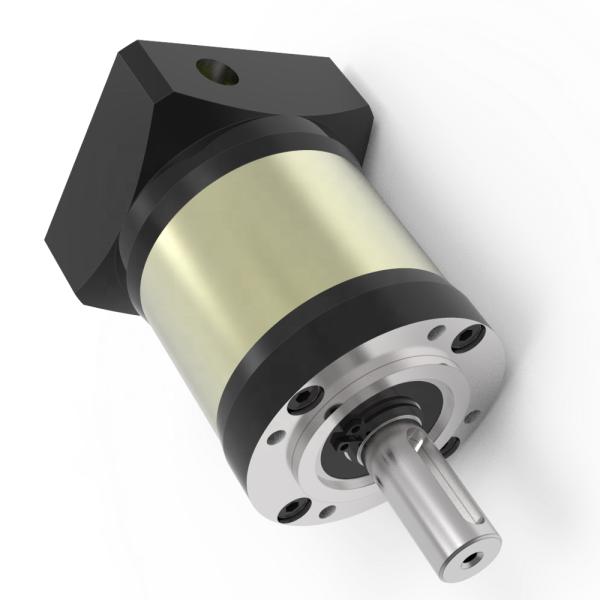

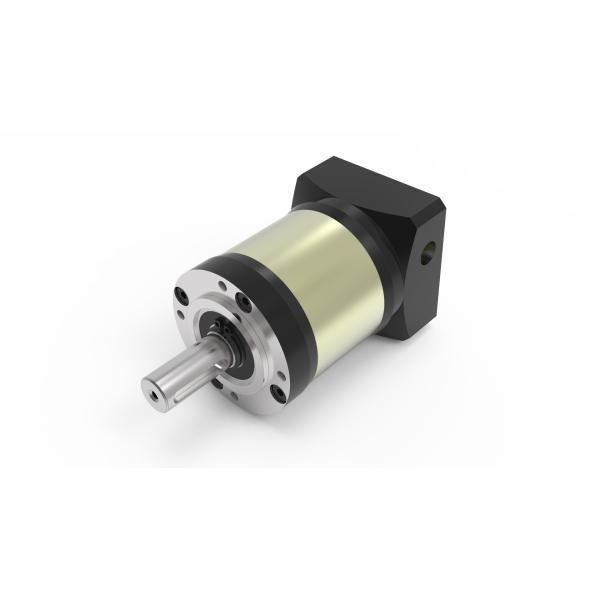

Long Axis High Precision 15 arcmin Planetary Reducer suitable for 3000 Servo DC Motor

This precision planetary reducer is one of the 60 diameter series. Its output end flange is a round aluminum flange, and the input end flange is longer than conventional products. This is because the adapted motor of this reducer is a servo motor.

Planetary Gearbox - Competitive & Advantages

  1. ​ODM & OEM Service
  2. Noise Test/ Life Test/ Water-proof Test/ High- Low Temperature Test/ Air-tight Test/ Salt Spray Test
  3. Low Noise, Low Backlash, High Efficiency
  4. 20000 Hours Working Life
  5. 100% Quality Checked with Quality Guaranteed

Applicable Industry

Manufacturing Plant,

Machinery Repair Shops,

Automation Industry

 Manufacturer Type OEM/ ODM
Gearing Arrangement Planetary Lubricating oil Type Synthetic Grease
Output Torque(N.m) ≤30 Output Speed (rpm) ≥43rpm
Input Speed (rpm) ≤3000 Ratio

4,5,7,10,

16,20,25,28,35,40,50,70
Place of Origin China Brand HPS
Main Material 45# Steel & CrMnTi Material of shaft As required
Certifications ISO-9001 / CE Model SPLE60
Packing Type Standard Export Package Warranty 1 Year

Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor

Planetary Gearbox Specifications

Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor

Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor

Model SPLE60
Drive series 1/2
Ratio

4,5,7,10,

16,20,25,28,35,40,50,70
Rated output torque(N.m) 30
Max torque(N.m) 45
Noise (db) ≤60
Working temperature(℃) -10~90
IP Level 54
Full Load Efficiency 90%

Planetary Gearbox Classification & Application Fields

Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor

Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor

Successful Field

Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor

Exhibition

Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor

HPS as a newcomer of automation industry, it had attended sveral exhbitions during 3 years. The photos show that HPS sales team attended ShangHai PV exhibition.

Packaging

Certifications

Long Axis High Precision 15 Arcmin Planetary Reducer For 3000 Servo DC Motor

We have obtained many certificates in terms of quality and invention patents, and only a part of them are shown here.

These certificates are sufficient to prove that the quality of our products is reliable, and we look forward to cooperating with you.

FAQ

1. Are you manufacturer?

Yes, we are the manufacturer in China.

2. What information shall we give before placing a purchase order?

A) Motor specifications, ratio, output speed, output rated torque, backlash and noise requirements, connection type.

B) Purchase quantity

C) Other particular requirements

3. What applications are your gearboxes being used?

Our gearboxes widely used in the applications of solar energy, AGV, robot arms, textile, food processing, chemical industry, automation production line, environment protection, logistics and etc.

4. Would you customize for special requirements?

Yes, we have design and development team with over 10 years experience in this field.

5. Can I come to your company to visit?

Yes, you can come to our company to visit at anytime
