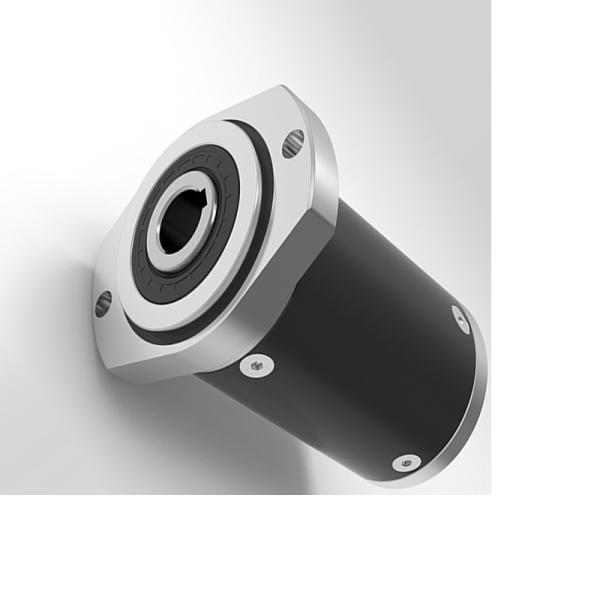

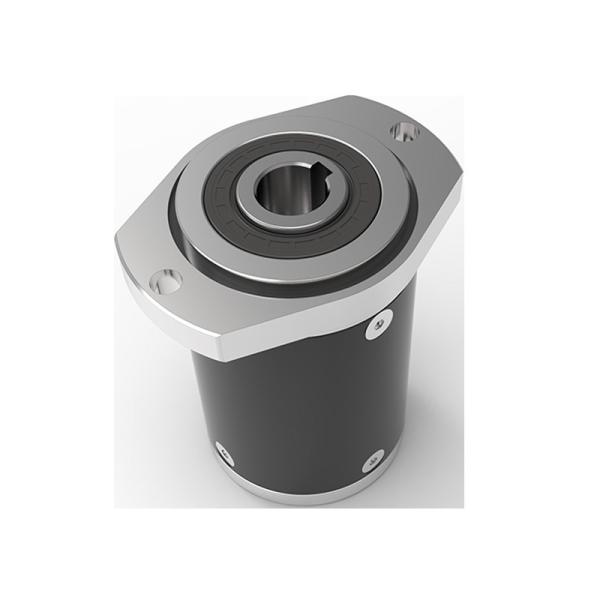

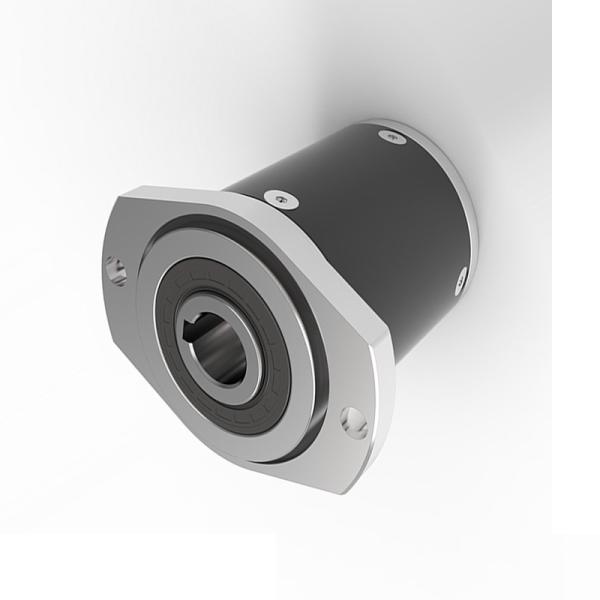

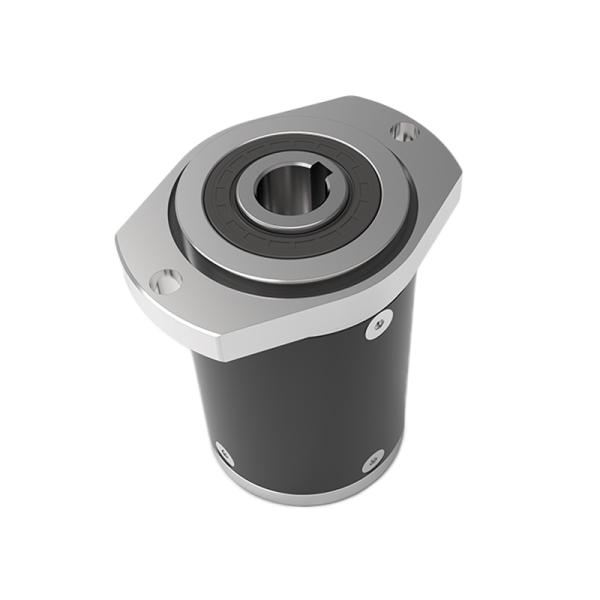

High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring
High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring
High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring
High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring
High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring
High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring
High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring
High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring
Specifications
Brand Name :
HPS
Model Number :
PLE90-213
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1Pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500000 sets per year
Delivery Time :
Depends on order quantity
Packaging Details :
Standard export package
Housing Material :
42Crmo Or 45#steel
Material Of Shaft :
As Required
Lubricant :
Synthetic Grease
Gear Material :
20CrMnTi
Seal Ring :
HNBR
Ratio :
213:1
Gearing Arrangement :
Planetary
Output Torque :
147 N.m
Input Speed :
≤3000rpm
Backlash :
≤15 Arcmin
Packing :
Standard Export Package
Warranty :
1years
Description

45#Steel Planetary Hollow Shaft High Torque Planetary Gearbox For Solar

Max Torque 300N.M Planetary Gearbox With Hollow Shaft Applications Of Solar Energy

With Many years of experience in manufacturing planetary gearbox, HPS provide technical support from r&d, prototype, testing, assembly and serial production, our wide range products and customize capacity enable clients find all kinds of solutions here, from standard transmission planetary gearbox to high precision planetary gearbox, from solar industry gear motor to automation production line gearbox motor, moreover, it is also widely used in medical equipments, robots, AGV, agricultural machinery etc.

Competitive Advantages

► ODM &OEM ► Noise Test ► Life Test

► Low noise, low backlash, high efficiency ► Water-proof Test ► High-low temperature test

► 20000h long working life ► Impact Test ► Air-tight test

► 100% quality checked and guaranteed ► Salt Spray Test

Planetary gearbox solutions, you can count on us. To be the most trustable planetary gearbox manufacturer is what we pursue always.

High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring

Planetary Gearbox Specifications:

Model PLE90-213
Drive series 3
Ratio 213:1
Rated output torque(N.m) 147
Max torque(N.m) 220
Noise (db) ≤55
Working temperature(℃) -40~80

Application Fields

High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring

Exhibition

High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring

Machenical Equipment

Certifications

High Torque 147 Nm Hollow Shaft Planetary Gearbox With HNBR Seal Ring

FAQ

1. Are you manufacturer?

Yes, we are the manufacturer in China.

2. What information shall we give before placing a purchase order?

A) Motor specifications, ratio, output speed, output rated torque, backlash and noise requirements, connection type.

B) Purchase quantity

C) Other particular requirements

3. What applications are your gearboxes being used?

Our gearboxes widely used in the applications of solar energy, AGV, robot arms, textile, food processing, chemical industry, automation production line, environment protection, logistics and etc.

4. Would you customize for special requirements?

Yes, we have design and development team with over 10 years experience in this field.

5. Can I come to your company to visit?

Yes, you can come to our company to visit at anytime
