Solar Panel for Home Ballasted Photovoltaic Installation Solar 1kw System Non - Penetration
Solar Panel for Home Ballasted Photovoltaic Installation Solar 1kw System Non - Penetration
Solar Panel for Home Ballasted Photovoltaic Installation Solar 1kw System Non - Penetration
Solar Panel for Home Ballasted Photovoltaic Installation Solar 1kw System Non - Penetration
Specifications
Brand Name :
NACYC ENERGY
Model Number :
AthenaFRM
Certification :
SGS, ISO, AS NZS1170, Patents
Place of Origin :
Fujian, China
MOQ :
50 Kilowatts
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Megawatts per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
250KW/40ft, 100KW/20ft
Port :
Xiamen Port
Shipment :
Air cargo, Sea transportation, Expresss
Sample :
Accepted
Technical Support :
Provided
Factory Visit :
Accepted
Penetration :
No
Feature :
Quick Installation
Duration :
More than 20 years
Description

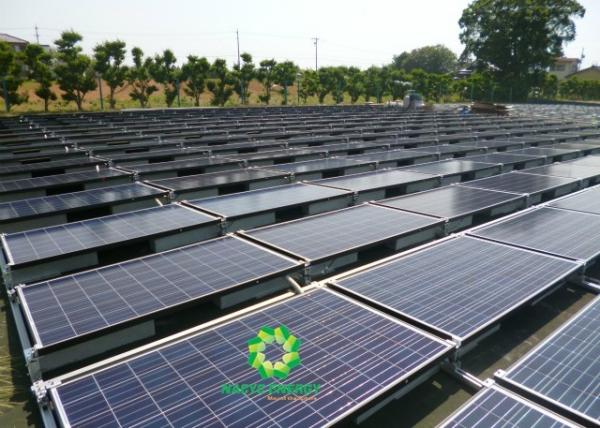

Solar Panel for Home Ballasted Photovoltaic Installation Solar 1kw System Non - Penetration - AthenaFRM

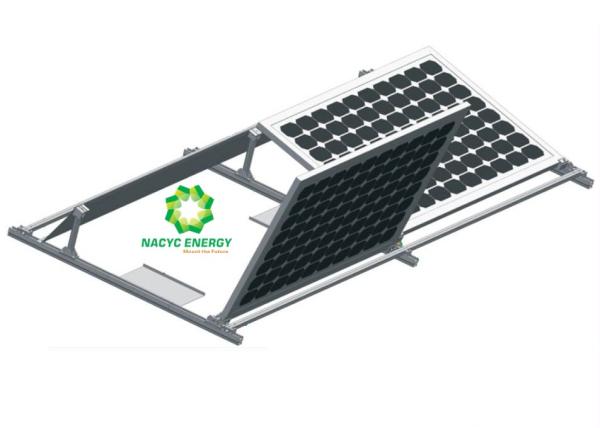

AthenaFRM (Flat Roof) Mounting system is designed to solve all your problems. It installs quickly, and takes up less weight on the roof. It is compatible with all framed modules, and is suitable for almost any roof, without affecting integrity, convenience and cost. It not only does not destroy the roof, but also combines the whole bracket to make the system more stable. The windshield can effectively protect solar panels from blowing away.

Key Benefits:

1. Roof penetration free, use ballast plus wind deflectors for average wind load regions; use wind deflectors alone for low wind load conditions.

2. The module is rotatable, and the angle is adjustable, make it easy to maintain roofs or systems. It's great for EPDM roofs that need regular maintenance.

3. The assembly of rail and rubber mat can increase friction.

Technical Data:

Application: Flat roof, penetration prohibited, especially those need frequent maintenance
Applicable module: Framed modules, with thickness ranging from 35-55mm
Orientation: Landscape
Material:

AL6005-T5

SUS304(Bolts, screws)
Tilt: Max. 30°, depending on the wind load and bearing capacity of the roof
Warranty: 10 years
