Hot Dip Galvanized Stainless Steel Legs For Solar Panel Ground Screws
Hot Dip Galvanized Stainless Steel Legs For Solar Panel Ground Screws
Specifications
Brand Name :
NACYC ENERGY
Model Number :
Ground Screw
Certification :
SGS, ISO, AS NZS1170, Patents
Place of Origin :
Fujian, China
MOQ :
50 pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500 Pieces per week
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
150pcs/pallet, 2100pcs/20'ft, 4200pcs/40'ft
Type :
Pole Anchor
Application :
Ground
Color :
Silver
Port :
Xiamen Port
Length :
1400\1600\1800mm
Surface Treatment :
Hot Dip Galvanized
Description

Stainless Steel Legs for Solar Panel Ground Screw Solar Mounting PV Solar

Technical Data:

Length 1400mm 1600mm 1800mm
Out Pipe Diameter 76 mm
Pipe Thickness 3 mm
Weight 8.1kg, 9.3 kg, 10.46kg
Material ISO630 / Din EN10025
Surface Finished Hot Dipped Galv. As standard DIN EN ISO 1461-1999
Connect Style Round flange or square flange or 185mm regular triangle

Application:

1. Timber Construction 2. Solar Power Systems
3. City and Parks 4. Fencing Systems
5. Road and Traffic 6. Sheds and Containers
7. Flag Poles and Marks 8. Garden and Leisure
9. Boards and Banners 10. Event Structures

Key Benefits:

1 .Compatibility with all type of structures.

Our technical department will adapt the head of our ground screw piles to whatever the need of the customer is.

2. High quality.

As a factory owned ISO 9001 certificate, we can provide high quality steel ground stakes with critically inspection.

3 . Foundation solution concrete free.

Easy installation by spiral pilling machine, no digging, no concrete, no waiting, much convenient, cost effective, time saving and environmentally than concrete foundation.

4 . Surround areas remains unspoiled.

The special configuration of our product allows the insertion without performing land preparation works, which allows a significant cost reduction.

5 . Convenient remove, simple and easy to relocate.

One of the main advantages of our ground screw piles is the possibility of removing them, reducing the environmental impact and minimizing the removing costs.

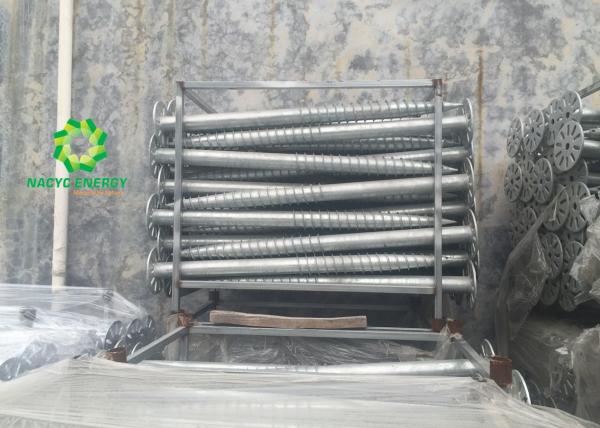

Hot Dip Galvanized Stainless Steel Legs For Solar Panel Ground Screws

Hot Dip Galvanized Stainless Steel Legs For Solar Panel Ground Screws
