Aluminum H Steel Solar Ground Mount System 5MW 10MW Solar Farm Project Structure
Aluminum H Steel Solar Ground Mount System 5MW 10MW Solar Farm Project Structure
Aluminum H Steel Solar Ground Mount System 5MW 10MW Solar Farm Project Structure
Aluminum H Steel Solar Ground Mount System 5MW 10MW Solar Farm Project Structure
Specifications
Brand Name :
Nacyc
Model Number :
Metis SP
Certification :
SGS
Place of Origin :
China
MOQ :
5000W
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Megawatts per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Pallet, Carton Box, Plywood Box, Container
PV Modules :
Framed or frameless
Service :
OEM Services
Material :
Aluminum Alloy, Stainless Steel
Snow load :
1.8KN /㎡
Application :
Open Ground
Warranty :
25 Years Life Time
Solar power (w) :
Customized
Color :
Natural
Output frequency :
50/60HZ
Type :
Ground Mounted Solar Panel Systems
Description
Aluminum H Steel Ground Bracket Ground Mount Solar Racking Systems 5MW 10MW Solar Farm Project Structure

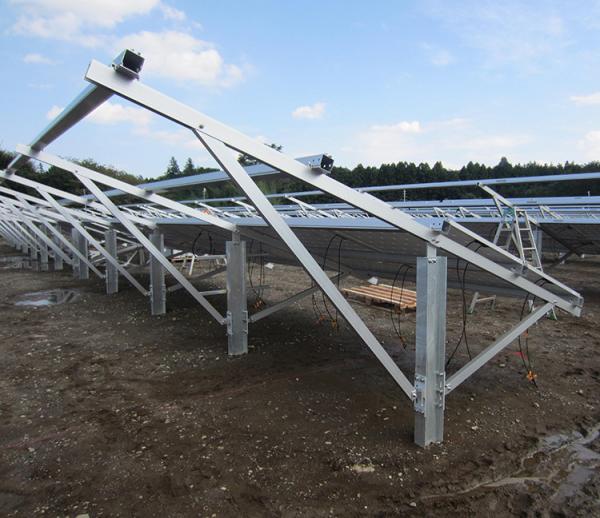

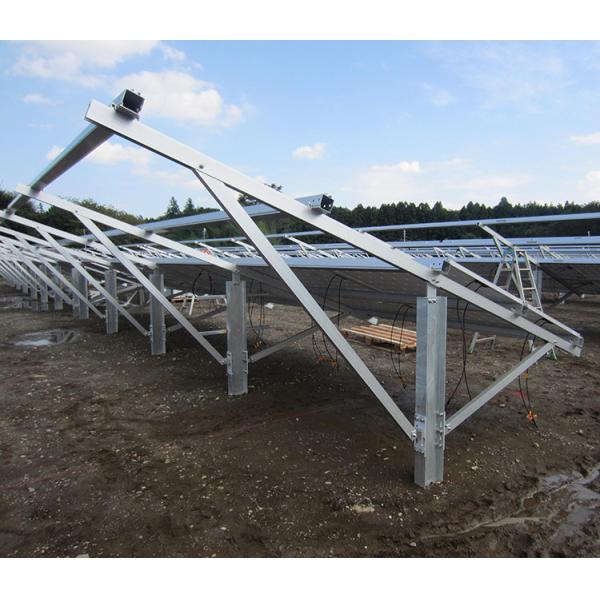

Single pile ground mounting system is a kind of cost-effective racking solution for large scale / small utility PV projects.

Not like ground screws which need pile driving machine, our single pole design can be labor and time saving.If the open ground is flat and clear, the galvanized steel piles are punched into the ground,

If the open ground is uneven, the piles should be adjusted to horizontal plane first, Then the aluminum racking system is fixed to the beams.

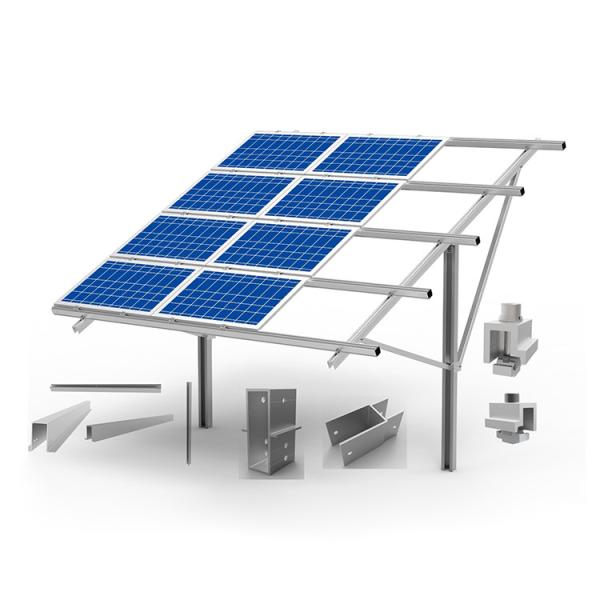

Just several steps for this pile PV gournd mounting structure: Ram piles, installing T joint, adjustable joint, pre-assembled kit, rail splice, clamps…
Product Features:
✦Solar SIngle pole mounting Suitable for an uneven location.
✦Easy to install, save labor and time at site.
✦Excellent wind resistant to strong gusts.
✦Carbon steel has high strength and meets the standards
Specification:
Product name
Solar Ground Mounting H Steel Aluminum Solar Panels Supporting Frames 1MW 5MW Solar Farm Project Bracket
Application
Solar system ground mounted
Max. wind speed
40m/s
PV Modules
Framed
Tilt Angles
Below 60 degrees
Foundation
Ground
Material
Anodized aluminum (rails,clamps), Q235(screw piles), SS304(bolts&nuts)
Warranty
10 years

Aluminum H Steel Solar Ground Mount System 5MW 10MW Solar Farm Project StructureAluminum H Steel Solar Ground Mount System 5MW 10MW Solar Farm Project Structure
