MC4 Compatible White Backsheet 3.2mm Tempered Glass Solar PV Panel IP65
MC4 Compatible White Backsheet 3.2mm Tempered Glass Solar PV Panel IP65
MC4 Compatible White Backsheet 3.2mm Tempered Glass Solar PV Panel IP65
MC4 Compatible White Backsheet 3.2mm Tempered Glass Solar PV Panel IP65
MC4 Compatible White Backsheet 3.2mm Tempered Glass Solar PV Panel IP65
MC4 Compatible White Backsheet 3.2mm Tempered Glass Solar PV Panel IP65
Specifications
Brand Name :
NACYC ENERGY
Model Number :
DS-165P6-36
Certification :
CE,SGS,TUV
Place of Origin :
Fujian, China
MOQ :
3 Kilowatts
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300 kilowatts per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
250KW/40ft, 100KW/20ft

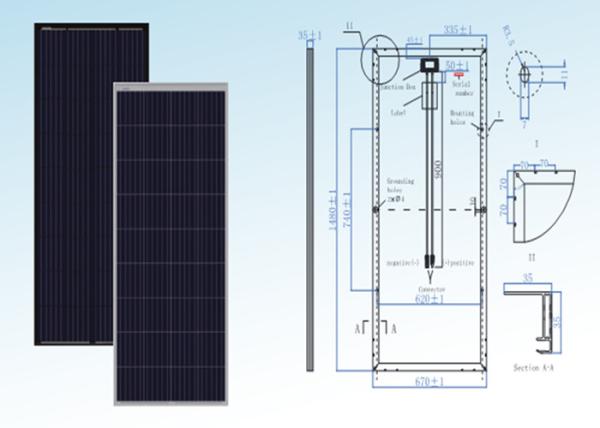

Solar Size :
1480*670*35mm
Cell type :
156mm*156mm
Weight :
12kg
Framed :
Anodized aluminium alloy
Front Glass :
3.2mm low iron tempered glass
Junction box :
IP65
Backsheet :
White
Cells number :
36pcs (4*9)
Description

White Backsheet Low Iron Tempered Glass Solar PV Panel 12KG IP65 Efficiency Solar Module

Product usage

1. Application: Home&Residental; Commericial; Industrial; Large scale development

2. Solar system type: on grid solar system; off grid solar system; Hybrid solar system

Product parameters

Solar size 1480mm*670mm*35mm
Weight 12KGS
Framed Anodized aluminium alloy
Cell type 156mm*156mm
Front Glass 3.2mm low iron tempered glass
standards CE; SGS; TUV
Junction box IP65
Backsheet White
Connector MC4 or MC4 Compatible
Cell number 36pcs (4*9)
Warranty Ten years warranty
Duratiom More than 20 years

Product advantage

1. 10Ys Products Warranty; 25Ys Warranty on power output; PID Resistant; Positive tolerance 0/+5w guaranteed;
2. Excellent low light performance, on cloudy days, mornings and evening.
3. Designed for high voltage systems of up to 1500 VDC, increasing the string length of solar systems and saving on BoS costs;
4. Microcrack resistant Double glass structure enhance reliability, triple EL tested of high quality control;
5. Entire module certified to with stand extreme wind (2400 Pa) and snow loads (5400 Pa);
6. All the modules are sorted and packaged by amperage, reducing mismatch losses and maximizing system output.
7. Unique cell with 5 bus-bar for higher efficiency and module stability.

MC4 Compatible White Backsheet 3.2mm Tempered Glass Solar PV Panel IP65MC4 Compatible White Backsheet 3.2mm Tempered Glass Solar PV Panel IP65
