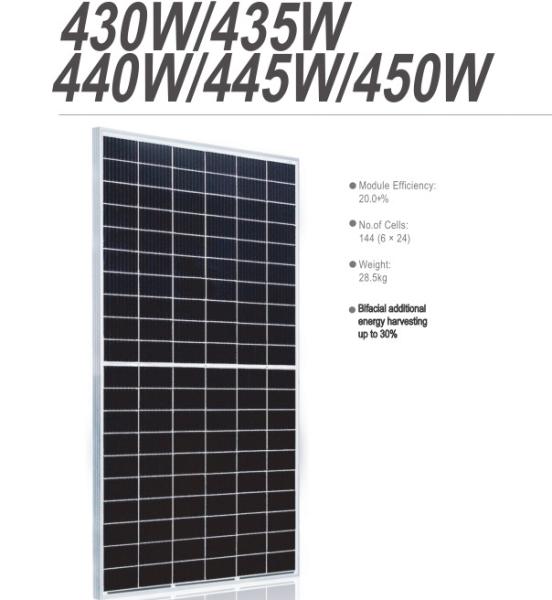

450W Mono Bifacial Solar PV Panel For Home Power System
450W Mono Bifacial Solar PV Panel For Home Power System
450W Mono Bifacial Solar PV Panel For Home Power System
450W Mono Bifacial Solar PV Panel For Home Power System
Specifications
Brand Name :
HT-SAAE
Model Number :
HT72-166M(PD)-F
Certification :
IEC61215, IS09001, OHSAS18001
Place of Origin :
Shanghai, China
MOQ :
1 Kilowatts
Price :
USD 107-113/pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
300 kilowatts per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
36pcs / box, 792pcs / 40'HQ Container
Application :
Home, Commercial, Industrial Solar Energy Systems
Connector :
MC4 Compatible
Weight :
28.5 KGs
Dimension :
2094mm*1038mm*30mm
Load power :
430W - 450W
Junction box :
IP68
Frame :
Anodized aluminium alloy
Module efficiency :
20.2%
Warranty :
10 Years
Solar cell :
Monocrystalline 166×83mm
Description

450W Mono Bifacial Module Home Power System Kits Solar PV Panel

Product usage

BIFACIAL MODULE. Bifacial additional energy harvesting up to 30%.

Application: Residental, Commericial, Industrial, Small solar power plant or Large scale development.

Solar system type: All types of on-grid solar system; off-grid solar system; Hybrid solar system.

Product parameters

Application Solar energy systems
Weight

28.5kg
Dimension 2094mm*1038mm*30mm

No.of Cells

 144 (6 × 24)
Frame Anodized aluminium alloy
Module efficiency 20.2%
Junction box IP68
Front cover

High transmission tempered glass

Solar Cells

 Monocrystalline 166×83mm
Cable 4mm² (IEC) Length:(+)200mm,(-)300mm
Warranty (years) 10-year product warranty, 30-year warranty on power output

Product advantage

Main features of Mono solar panel:

*Global Tier 1 bankable brand, with independently certified state-of-the-art automated manufacturing
*Excellent low irradiance performance, PID resistance.
*Positive tight power tolerance of 3%
*Dual stage 100% EL Inspection warranting defect-free product
*Module Imp binning radically reduces string mismatch losses

*Warranted reliability and stringent quality assurances well beyond certified requirements

*Certified to withstand severe environmental conditions

Anti-reflective & anti-soiling surface minimise power loss from dirt and dust.Severe salt mist, ammonia & blown sand resistance, for seaside,farm and desert environments.

Excellent mechanical load 2400Pa & snow load 5400Pa resistance
