Specifications
Brand Name :
Jpungsun
Model Number :
JP-SSL-0329003
Certification :
CE,ROHS
Place of Origin :
Guangdong,China
MOQ :
2pics
Price :
Negotiable
Payment Terms :
T/T, Western Union, T/T, Western Union
Supply Ability :
1000per day
Delivery Time :
14days
Packaging Details :
packed in one carton
Light source :
LED
Input voltage(v) :
3.2V
Ip rating :
IP65 Wateproof
Controller :

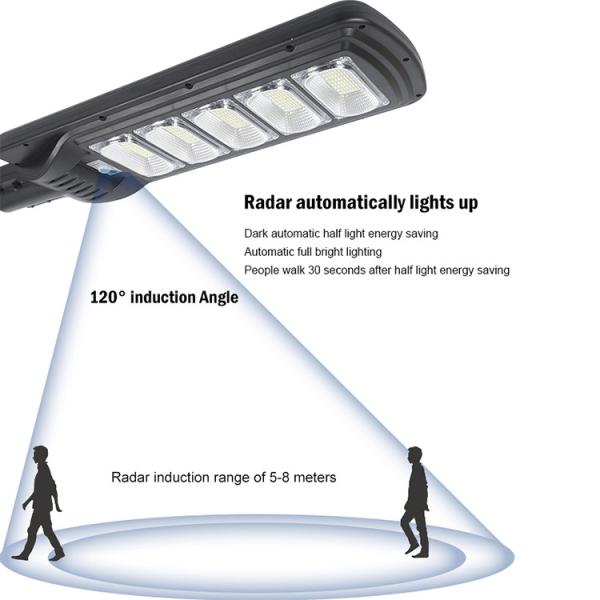

Pir sensor control
Item type :
Outdoor Led Street Light
Working lifetime(hour) :
50000 hours
Lamp body material :
Aluminum
Led light source :
SMD5730
Application :
ROAD, Highway, courtyard, outdoor, etc.
CCT :
2700-7000K
Battery :
LiFePO4 Battery
Lamp luminous efficiency(lm/w) :
100lm/w
Power :
50w 100w 150w 200w 250w 300w
Warranty :
2years
Solar panel :
Poly solar panel
Description

IP65 waterproof 50w 100w 150w 200w 250w 300w integrated all in one solar led street light

coro

Product Description

Power

50W

100W

150W

200W

250W

300W

Lamp Size(MM)

305*210*60

395*210*60

500*230*70

630*250*75

740*250*75

825*250*75

Solar Panel

4.5W

7W

9W

12W

16W

18W

Battery

5AH3.2V

5AH3.2V

10AH3.2V

15AH3.2V

20AH3.2V

20AH3.2V

LED

56PCS

112PCS

168PCS

224PCS

280PCS

336PCS

Light Source

SMD5730

Material

ABS-PC

Color Temperature

2700-7000K

Luminous Efficiency

150LM/W

IP Rating

IP65

Beam Angle

90°

CRI (Ra>)

70

Certificate

CE,MSDS,ROHS

Working Temperature

-30°C ~ +50°C

Application

Lights for highway, garden, main street, square or any other outdoor place

Warranty

2 Years

How to choose a street light?

Illumination area – As I mentioned above the illumination area needs to be calculated from height and angle of the light but most light fixtures will give you a brief footage of what that light can cover in the best case scenario so it is better for you to buy stronger light and get more illumination than to get too low light level and dont be able to see anything.

Position – The position of the light is crucial not only by the height , angle or whether it is in the sunlight but also the spot / point that you need to illuminate. In the most common setup you will be able to put your light beneath the edge of the roof to protect it from rain and to illuminate an area in front of the house. But there are also different usages for these solar flood lights and maybe you want to put it on the ground to illuminate your house from the side. This means that you need to think clearly about the usage as a wall mounted light won’t be easily places on the ground and vice versa.

Motion or light sensitivity activated – Solar lights come in two types where one has motion activated sensor and the other has not. you can use motion activated ones for security purposes and the non-motion activated ones in a simple garden or house lighting so again the choice needs to be made before the purchase.

How long should the light last – You also need to think about how long you need to operate your light as some lights can only light up for a minute and then need a resting period but other light sources can last all night.

Features:

*. No need for AC power supply.

*. No electricity bills are incurred

*. Adopt DC power supply and photosensitive control.

*. It has good stability, long life and high luminous efficiency.

*. Easy installation and maintenance, high safety performance.

*. The advantages of energy saving, environmental protection, economy and practicality.

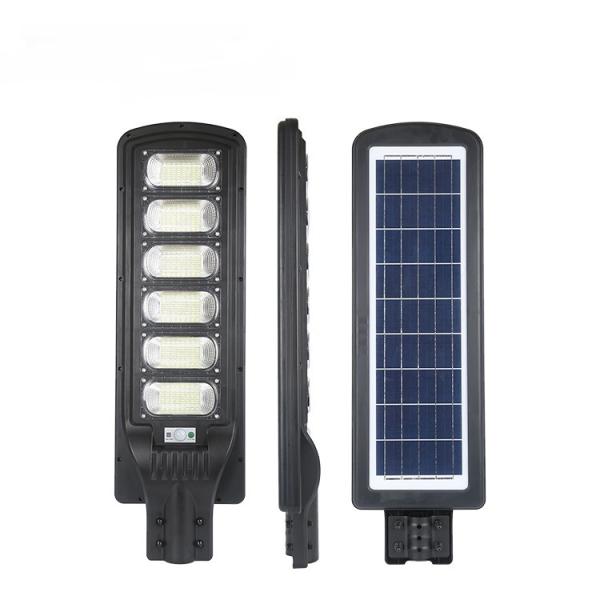

Detailed Images
100lm/W 100w 250w Integrated Solar Led Street Light For Square100lm/W 100w 250w Integrated Solar Led Street Light For Square100lm/W 100w 250w Integrated Solar Led Street Light For Square100lm/W 100w 250w Integrated Solar Led Street Light For Square100lm/W 100w 250w Integrated Solar Led Street Light For Square

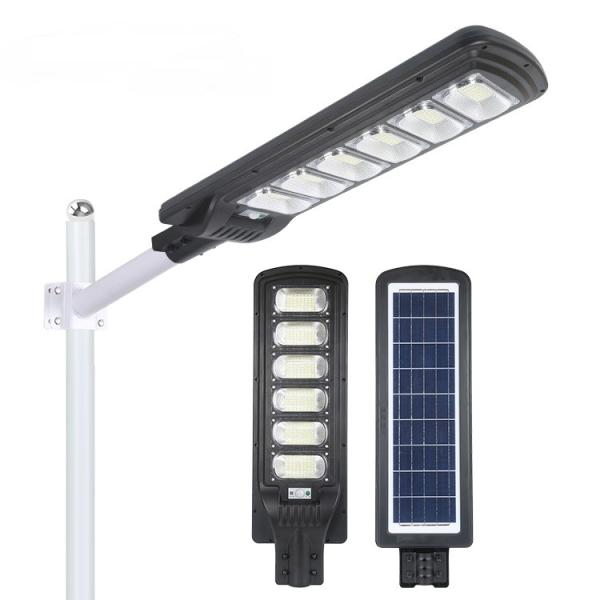

Application

100lm/W 100w 250w Integrated Solar Led Street Light For Square

FAQ

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time ?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit ?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products ?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
