Specifications
Brand Name :
Hynall
Model Number :
HNS111HB
Certification :
RED, FCC, RoHS
Place of Origin :
Shenzhen, China
MOQ :
300pcs
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
30,000pcs / month
Delivery Time :
3~4 weeks for bulk orders
Packaging Details :
Bubble bag + carton. (color box or blister package also available on request)
Input voltage :
12V/24V DC
Input current :
≥25mA
Type :
Security microwave sensor
Detection range :
Max. 18m in diameter
Mounting height :
10~12m
Operation temperature :
-20℃ ~ +70℃
Description

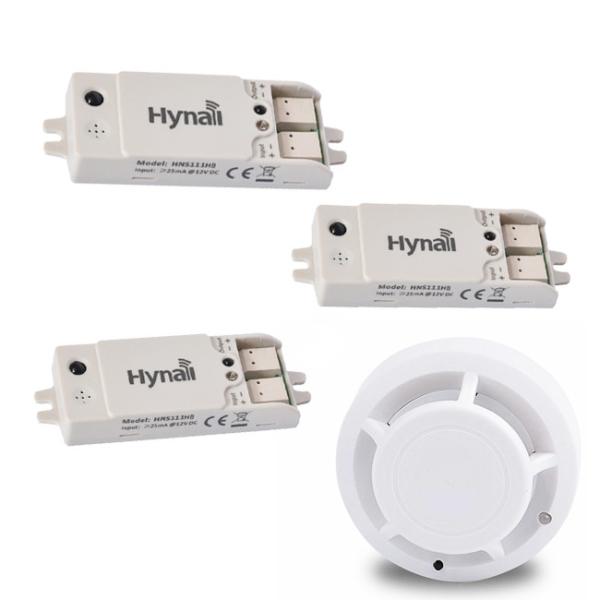

Security sensor 5.8GHz new securtiy microwave sensor enhanced detection range , 12V DC Input , Remote Controllable

5.8GHz new security microwave sensor is a intelligent sensor for security detector.

Size: 75.1*27.1*13.8mm

Features--

Frequency: 5.8GHz C-band
Input voltage: 12/24V DC
Output:

1~10V dimming


Input current:≧25mA.

Ulti small size, perfect to be integrated with the appication.

Real built-in application for lux off & daylight monitoring with Dual-processor technology.

Easy setting by remote control.

Max. up to 18m in diameter for detection range.

10~12m for mounting height.

-20℃ ~ +70 ℃ for operation temperature

Settings(by remote control IR12)--

Permanent ON/OFF

Press the button, application goes to permanent on or permanent off mode, sensor is disabled.

Dim +/-

Press the button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.

Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.

Reset function

Press the button, all settings go back to factory default settings.

Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.

Test mode

"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.

Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordingly.

5.8G Home Motion Sensor 12V/24V DC Enhanced Detection Range 25mA Input Current

Detection pattern--

Ceiling mounting: up to 12m in diameter

Wall mounting: up to 20m in diameter
